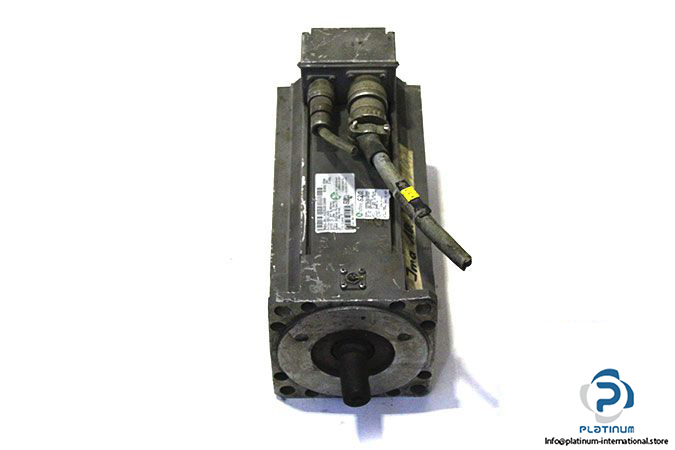

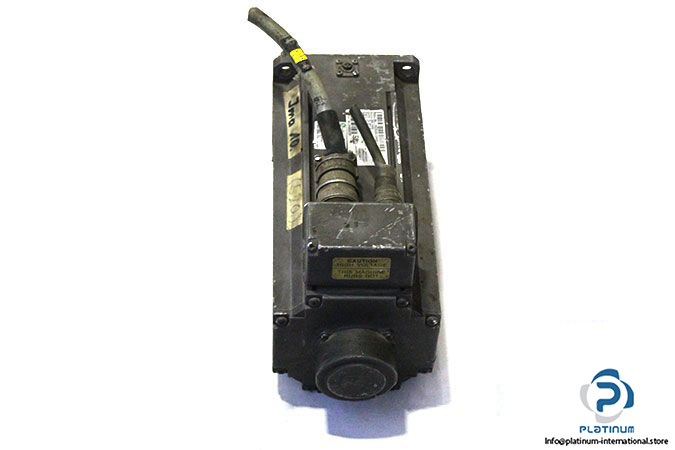

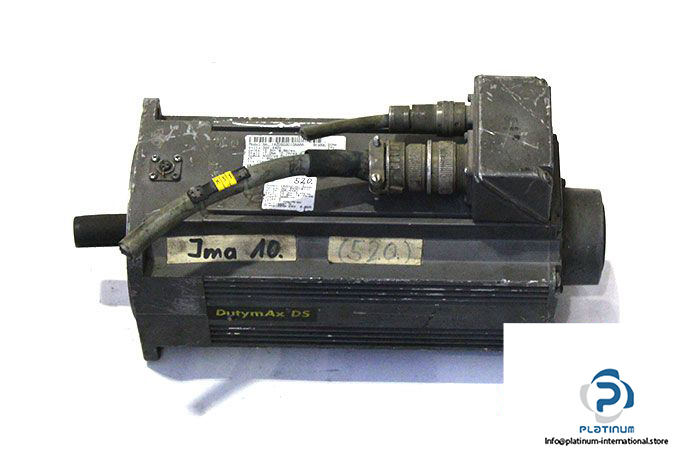

Control Techniques 142DSC301CAAAA Brushless AC Servo Motor
중고
요청 시 제공 가능
1 444,44$
방대한 재고
글로벌 배송
전문 지원
품질 보장

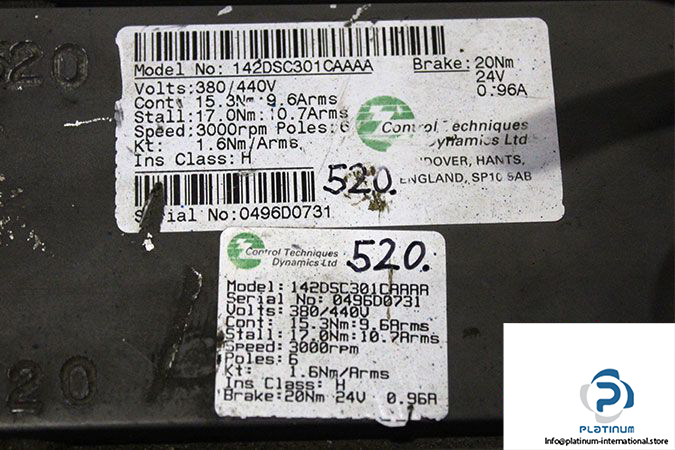

Manufacturer: CONTROL TECHNIQUES / EMERSON
Type: BRUSHLESS AC SERVO MOTOR
Model: 142DSC301CAAAA
Frame Size: 115
Voltage: 380 / 400 V
Stall Current: 10.7 Arms
Continuous Current: 9.6 Arms
Rated Speed: 3000 Revolution Per Minute (rpm)
Stall Torque: 17 Nm
Continuous Torque: 15.3 Nm
Constant Torque: 1.6 Nm/A
Voltage Brake: 24 VDC
Current Brake: 0.96 A
Torque Brake: 20 Nm
Poles: 6
Insulation Class: H
Weight: 17.36 kg
