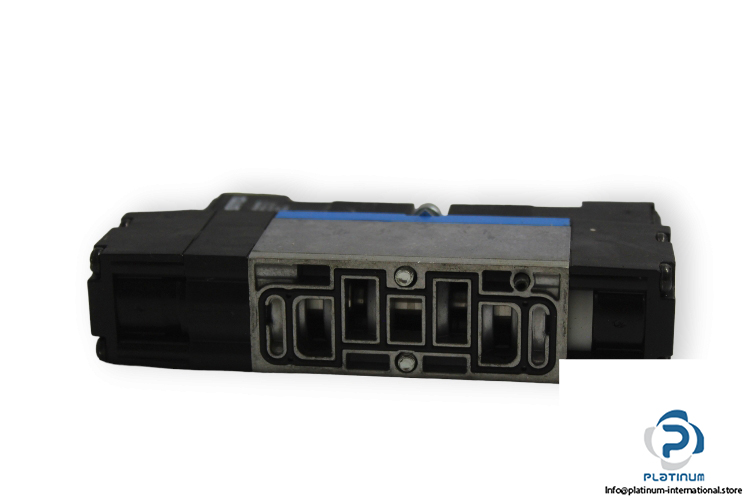

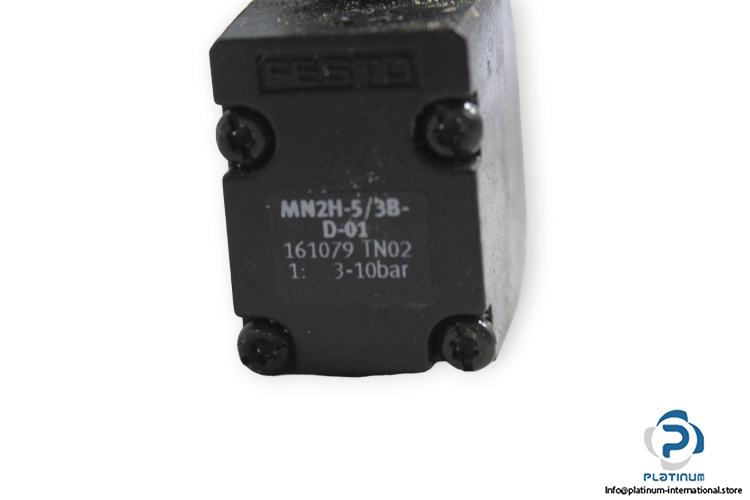

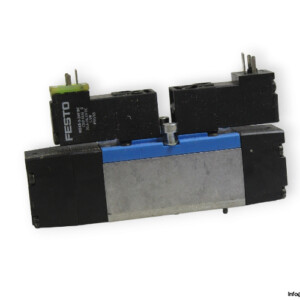

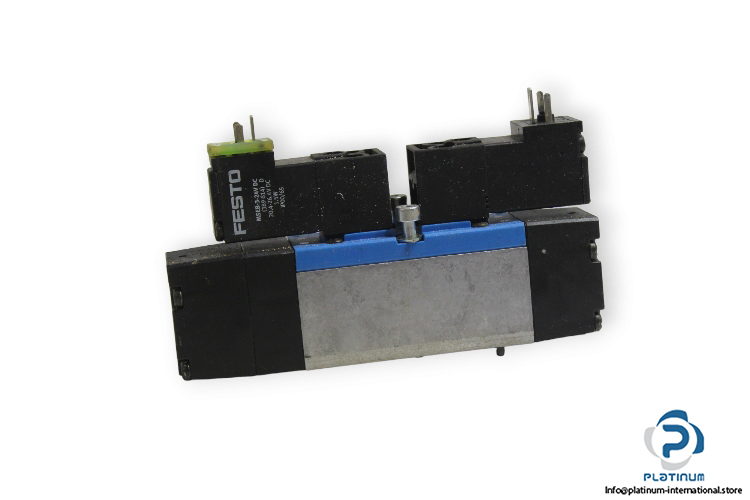

Festo 161079 Double Solenoid Valve
중고
재고 있음2 단위즉시 배송 가능
DOUBLE SOLENOID VALVE
FESTO MN2H-5/3B-D-01 electrically actuated 5/3 piston slide valve with MSEB-3-24VDC coil for high-flow pneumatic applications.
신제품
재고 있음
이 제품은 신제품으로도 구매하실 수 있습니다.
새 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장
FESTO MN2H-5/3B-D-01 DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The FESTO MN2H-5/3B-D-01 is a high-performance double solenoid valve designed for pneumatic automation. Featuring a piston slide design, this 5/3 pressurized function valve ensures reliable air control with fast switching capabilities. The unit comes with a FESTO MSEB-3-24VDC solenoid coil, delivering efficient and safe operation across varied environments.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MN2H-5/3B-D-01
Part No.: 161079
Valve Technical Information
- Fluid: Air
- Design: Piston slide
- Function: 5/3 pressurized
- Type of Actuation: Electrically
- Operating Pressure: 3 … 10 bar
- Nominal Flow Rate: 1000 l/min
- Pneumatic Connection: Connection plate size 26 mm
- Material: Aluminum die cast
- Ambient Temperature: -10 / 50 °C

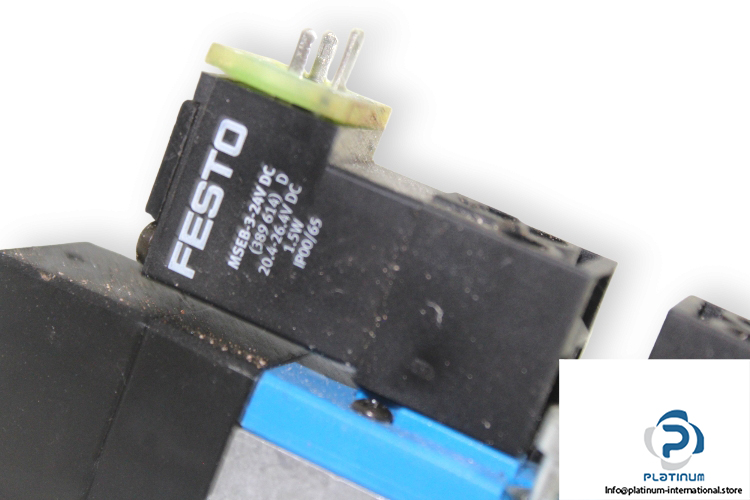

Attachment: FESTO 389614 Solenoid Coil
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24VDC
Part No.: 389614
Solenoid Coil Technical Information
- Supply Voltage: 20.4 … 26.4 V DC
- Power Consumption: 1.5 W
- Protection Class: IP00 / IP65
