Danfoss MC 012 110 00000 Controller
Danfoss 컨트롤러(모델: 000016480064, 부품 번호: MC01211000000)는 9~36 V DC 공급 전압 범위, 4개의 구성 가능한 아날로그 입력 및 IP 67 보호 기능을 갖추어 가혹한 환경에서의 산업용 응용에 적합한 고성능을 제공합니다.

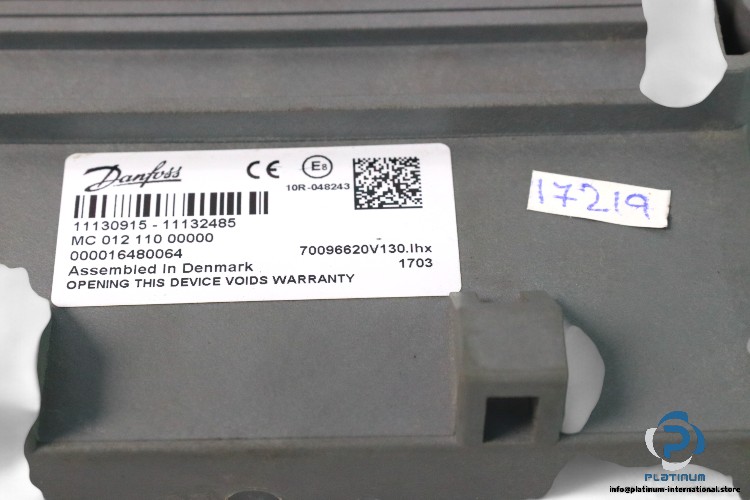

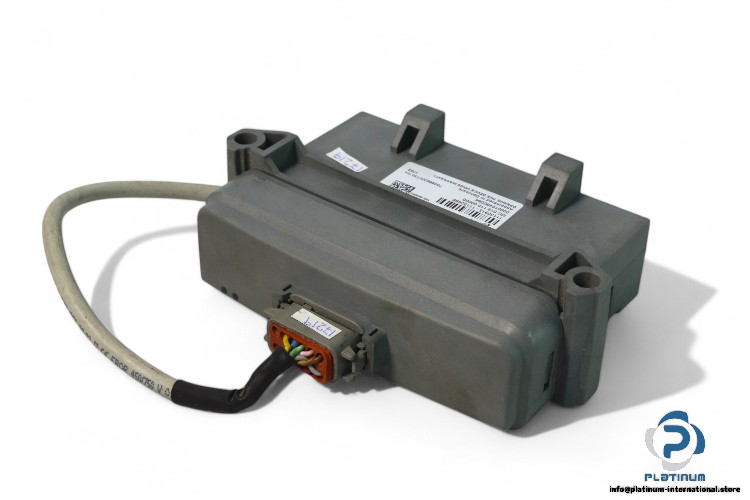

Controller (Model: 000016480064, Part No.: MC01211000000)
Manufacturer: Danfoss
The Controller (Model: 000016480064, Part No.: MC01211000000) from Danfoss offers high-performance and versatility for industrial applications. This controller operates with a wide supply voltage range of 9 to 36 V DC and supports a frequency range of 1 Hz to 10 kHz. It includes four analog inputs with configurable voltage ranges (0 to 5.25 V DC or 0 to 36 V DC), providing flexibility for different sensors. The device also features two LEDs and a 12-pin connection for optimal operation. It has an EMI/RFI rating of 100 V/M, making it suitable for environments with electromagnetic interference. With an IP 67-rated enclosure, this controller is designed to resist dust and water ingress, ensuring durability in harsh conditions. The temperature range for operation is between -40°C and 70°C. It offers mounting flexibility with 3 options: stack, end, or side mounting.
- Manufacturer: Danfoss
- Model: 000016480064
- Part No.: MC01211000000
- Supply Voltage: 9 to 36 V DC
- Frequency: 1 Hz to 10 kHz
- Analog Inputs: 4 with configurable ranges (0 to 5.25 V DC or 0 to 36 V DC)
- No. of Pins: 12
- No. of LEDs: 2
- EMI/RFI Rating: 100 V/M
- Mounting Options: 3 options: stack, end, or side
- Ambient Temperature During Operation: -40°C to 70°C
- Enclosure: IP 67
