Dsdmo RESA14T Generator SET
휴대용 발전기 세트 Dsdmo RESA14T 3상 대기 전원 발전기, 14 kVA LPG 등급, 230/400 V 출력, Schneider Electric C60H 4극 차단기 포함, ISO 8528 준수. 주거용 백업 전원 및 비상 공급 시스템에 적합.

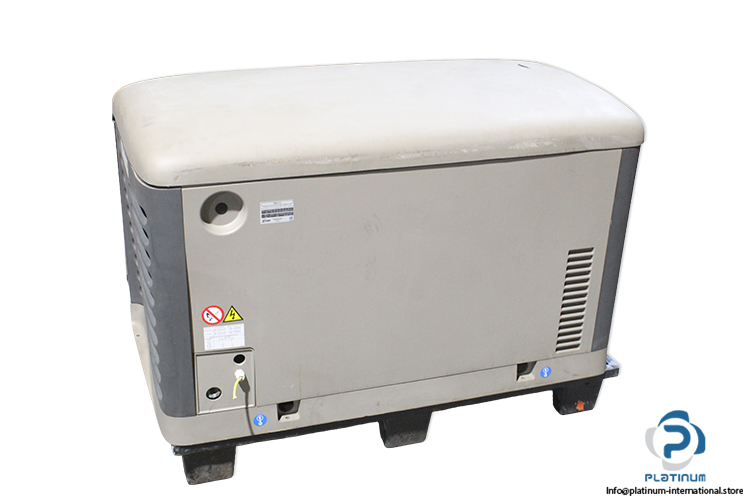

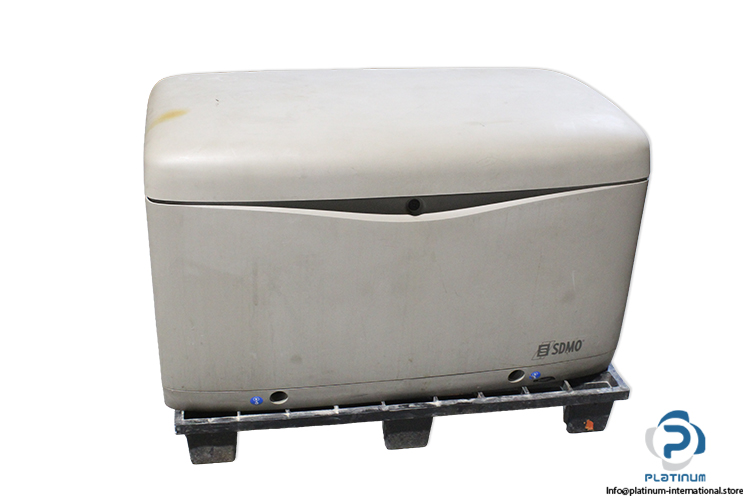

Dsdmo RESA14T Portable Power Generating Set
The Dsdmo RESA14T portable power generating set from the RESIDENTIEL range is engineered for reliable standby and residential power applications. Designed to operate on LPG and Natural Gas, it delivers stable three-phase output with ISO 8528 compliance and G1 performance classification.

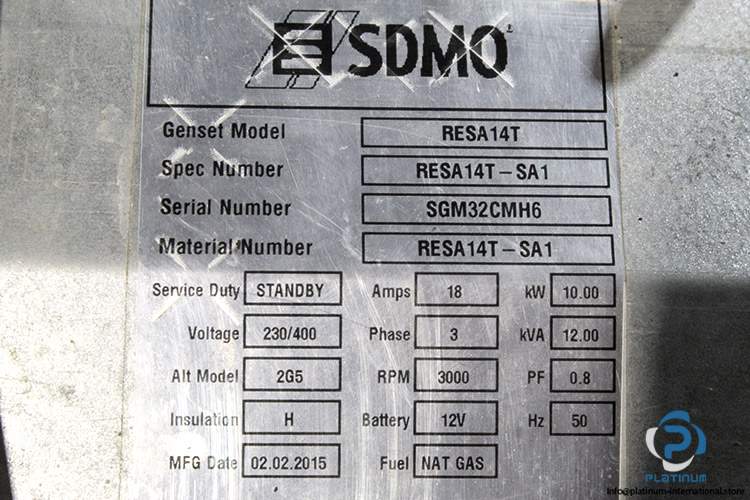

Manufacturer: Dsdmo
Type: Portable Power Generating Set
Range: RESIDENTIEL
Model: RESA14T
Specification Number: RESA14T “ SA1
Serial Number: SGM32CMH6
Material Number: RESA14T “ SA1
LPG Rating:
Electrical Specifications (Natural Gas “ Standby):
Attachment

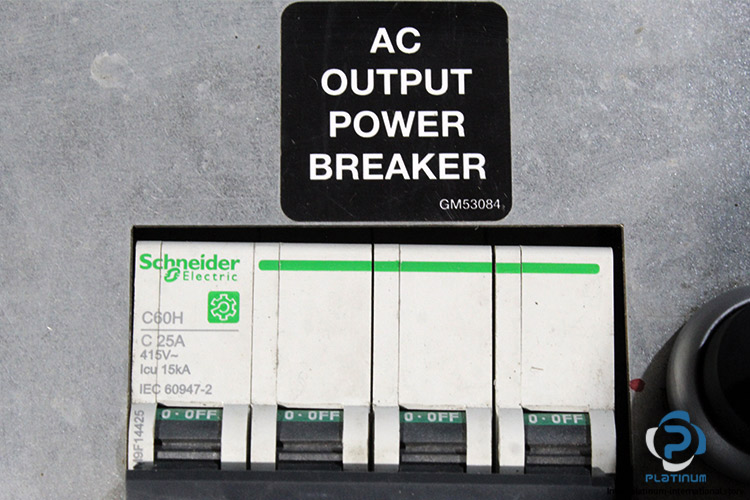

SCHNEIDER ELECTRIC C60H CIRCUIT BREAKER
Suitable for residential backup systems, commercial standby power, and reliable emergency power supply installations.

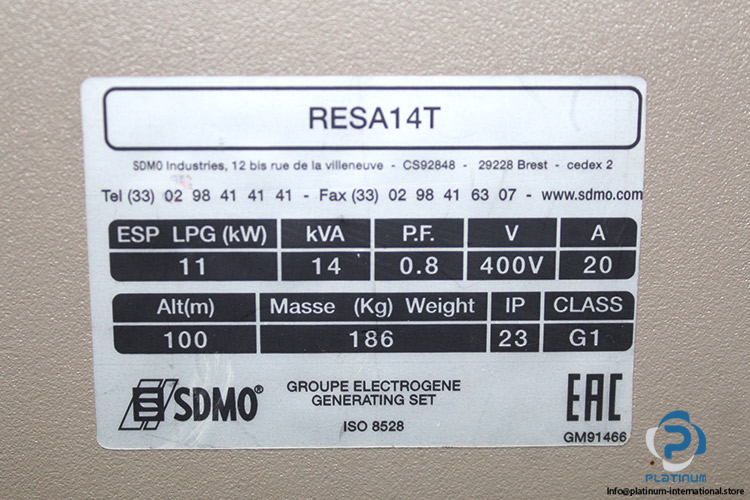

| Range | RESIDENTIEL |
| ESP LPG Power | 11 kW |
| Power | 14 kVA |
| Power Factor | 0.8 |
| Voltage | 400 V |
| Current | 19 / 20 / 21 A |

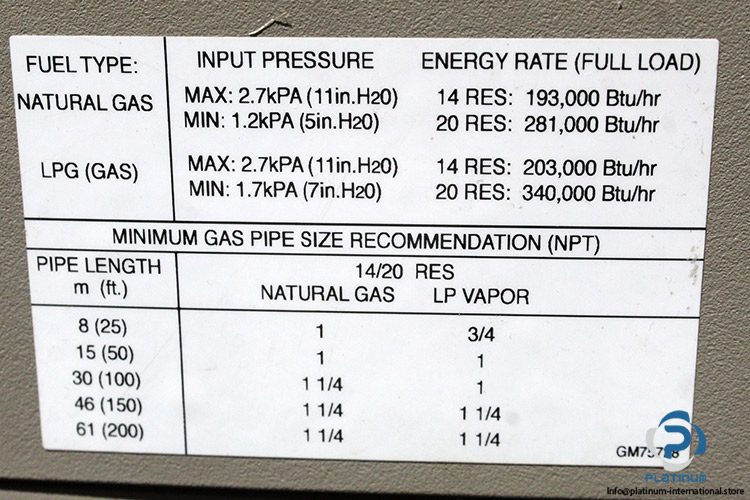

| Max Input Pressure | 2.7 kPa (11 in. H2O) |
| Min Input Pressure | 1.7 kPa (7 in. H2O) |
| Energy Rate (Full Load) “ 14 RES | 203,000 Btu/hr |
| Energy Rate (Full Load) “ 20 RES | 340,000 Btu/hr |
| Standard | ISO 8528 |
| Generating Set Class | G1 |
| Protection Rating | IP23 |
| Altitude Rating | 100 m |
| Pipe Length | 8 m (3/4 NPT), 15 m (1 NPT), 30 m (1 NPT), 46 m (1 1/4 NPT), 61 m (1 1/4 NPT) |
| Fuel | LPG |

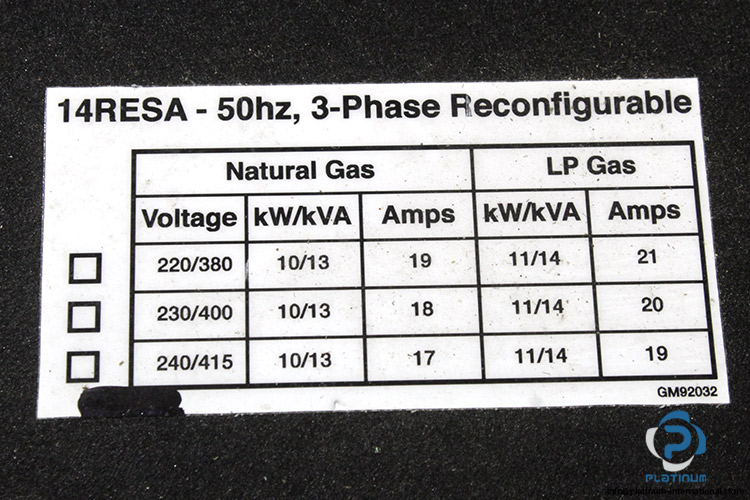

| Voltage | 230 / 400 V “ 3 Phase |
| Frequency | 50 Hz |
| Speed | 3000 rpm |
| Power Factor (PF) | 0.8 |
| Current | 18 A (230 / 400 V-3 Phase), 19 A (220 / 380 V-3 Phase), 17 A (240 / 415 V-3 Phase) |
| Power | 10 kW |
| Power | 12 / 13 kVA |
| Battery | 12 V |
| Max Input Pressure | 2.7 kPa (11 in. H2O) |
| Min Input Pressure | 1.2 kPa (5 in. H2O) |
| Energy Rate (Full Load) “ 14 RES | 193,000 Btu/hr |
| Energy Rate (Full Load) “ 20 RES | 281,000 Btu/hr |
| Insulation Class | H |
| Alternator Model | 2G5 |
| Service Duty | Standby |
| Pipe Length | 8 m (1 NPT), 15 m (1 NPT), 30 m (1 1/4 NPT), 46 m (1 1/4 NPT), 61 m (1 1/4 NPT) |
| Fuel | NAT GAS (Natural Gas) |
| Rating | C25A |
| Range | Acti9 |
| Voltage | 415 V AC |
| Rated Current | 25 A |
| Breaking Capacity (Icu) | 15 kA |
| No. of Poles | 4 |
| Standard | IEC 60947-2 |
