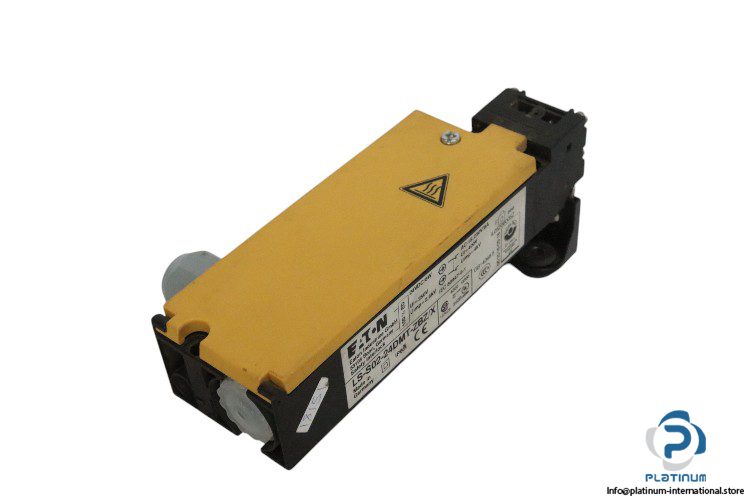

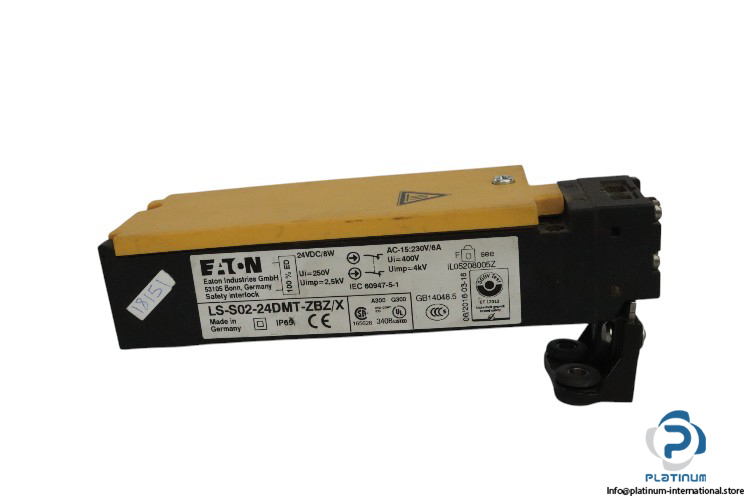

Eaton LS-S02-24DMT-ZBZ/X Safety Interlock Switch
The Eaton LS-S02-24DMT-ZBZ/X Safety Interlock Switch is designed for reliable machine guarding and cabinet door interlocking applications. Featuring a durable polyamide enclosure, positive opening contacts, and high environmental protection, this switch ensures secure and efficient operation in industrial environments.
Manufacturer: Eaton
Type: Safety Interlock Switch
Model: LS-S02-24DMT-ZBZ/X
| Contact Rating | 6A at 240V AC, 3A at 24V DC |
| Enclosure Material | Polyamide |
| Connection | Screw Terminal |
| Contact Configuration | 2 NC, Slow Make Break, Positive Opening |
| Switch Type | Cabinet Door Interlock |
| Environmental Rating | IP66, IP67 |
| Operating Temperature | -25 to 70°C |
| Dimensions (H x W x D) | 173.074 x 30.734 x 59.944 mm |
