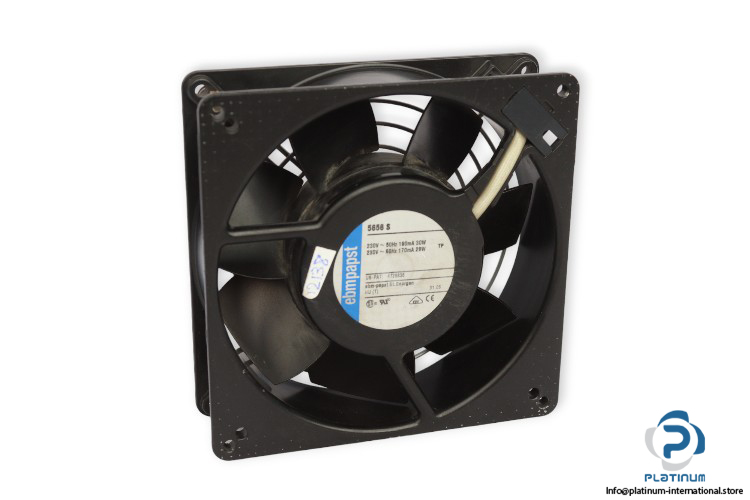

Ebmpapst 5656 S AC Axial Compact FAN
중고
재고 있음1 단위즉시 배송 가능
제조사: Ebmpapst 유형: AC 축류형 콤팩트 팬 부품 번호: 5656S
방대한 재고
글로벌 배송
전문 지원
품질 보장

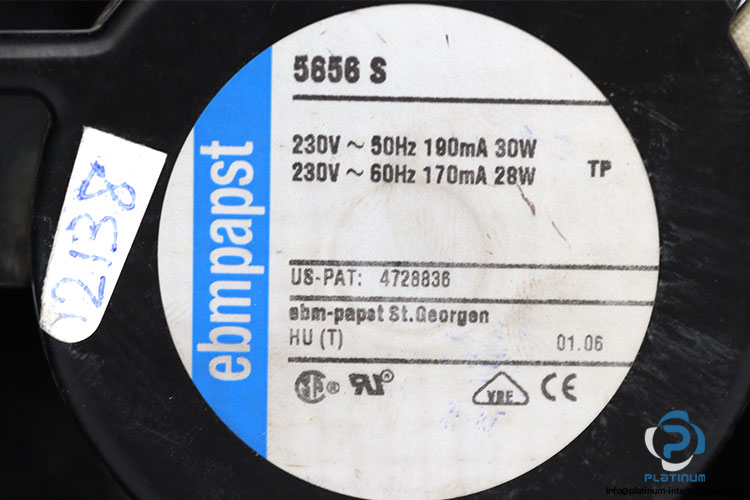

Manufacturer: Ebmpapst
Type: AC Axial Compact Fan
Part No.: 5656S
Nominal Voltage: 230 V AC
Power consumption: 28/30 W
Speed rpm: 2700 min-1
Current draw: 0.19/0.17 A
Frequency: 50/60 Hz
Air flow: 235 m3/h
No. of wires: 2
Motor Bearing: Ball Bearing
Connection line: 2 flat plugs 2.8 x 0.5 mm. Housing with grounding lug and tapping screw M4 x 8 (TORX)
Direction of air flow: Air exhaust over bars
Motor protection: Protected from overload by a thermal cutout switch
Impeller material: Metal
Fan housing material: Metal
Ambient Temperature: -35 … 70°C
Direction of protection: Left, looking at rotor
Dimensions: 135 x 135 x 38 mm
