Eltra AAM58B12/13B10/30PFN6XXM12R.162 Absolute Encoder
신제품
재고 있음1 단위즉시 배송 가능
550,00$
ELTRA AAM 58 B / C PROFINET 산업용 멀티턴 절대 위치 인코더로 12/13비트 해상도, Profinet IO 인터페이스 및 IP65 보호 기능을 갖추고 있습니다. 견고한 6mm 샤프트 및 M12 방사형 출력으로 정밀 자동화를 위해 설계되었습니다.
1258AAMAbsoluteAutomationBBitEltraEncoderIndustrialIOIP65MultiturnPositionProfinetResolutionSensorshaftSolid
방대한 재고
글로벌 배송
전문 지원
품질 보장

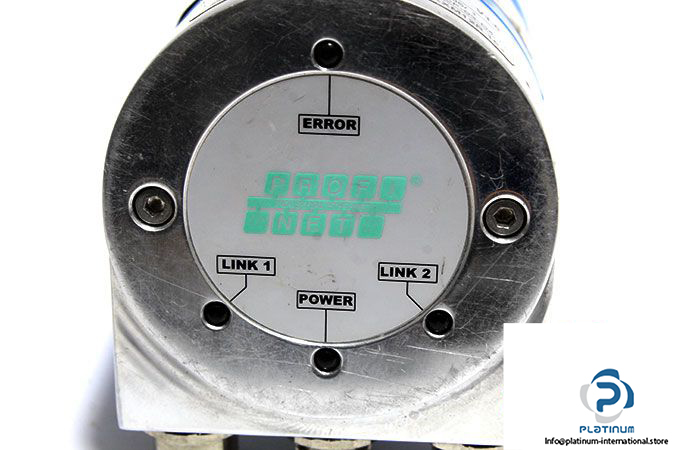

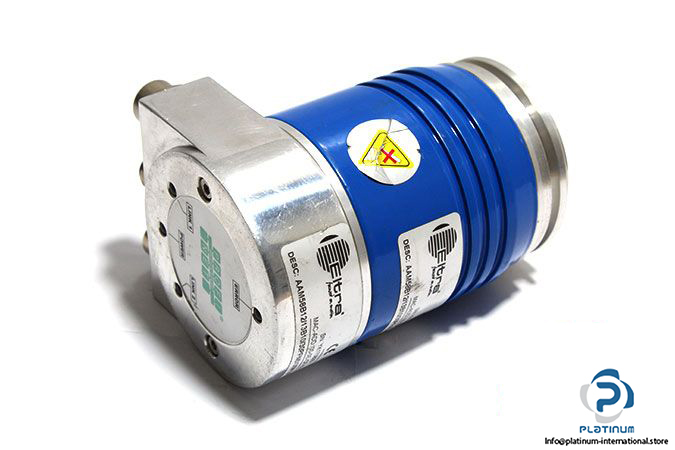

ELTRA AAM 58 B / C PROFINET “ SOLID SHAFT MULTITURN ABSOLUTE ENCODER
This high-resolution ELTRA encoder is engineered for precision motion control in industrial automation systems. With multiturn and single-turn capabilities, Profinet IO interface, and robust IP65 protection, it is ideal for environments requiring reliable, real-time feedback and rugged build quality.
Manufacturer: ELTRA
Type: Solid Shaft Multiturn Absolute Encoder
Model: AAM 58 B / C PROFINET

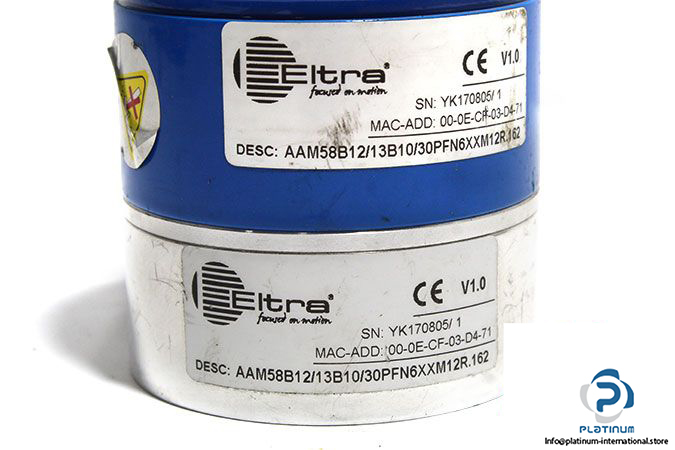

Order Code: AAM58B12/13B10/30PFN6XXM12R.162
MAC Address: 00-0E-CF-03-D4-71
Serial No.: YK170805/1
Firmware Version: V1.0
| Shaft Type | Solid Shaft |

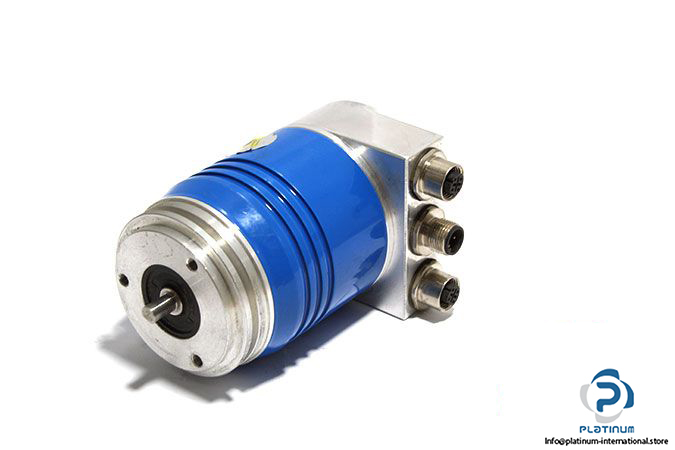

| Shaft Size | 6 mm |
| Principle of Operation | Absolute |
| Revolution Type | Multiturn |
| Mounting Type | Synchronous Flange |
| Connection | Clamping Flange, Dia 36 mm |
| Multiturn Resolution | 12 bit |
| Single Turn Resolution | 13 bit |
| Code Type | Binary |
| Power Supply | 10 / 30 V DC |
| Electronic Interface | Profinet IO |
| Enclosure Rating | IP65 |

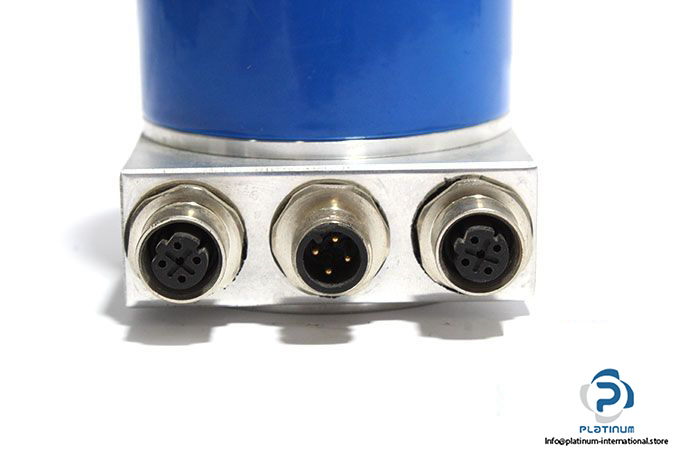

| Output Type | Connector, Radial, M12 |
| Operating Temperature | -40° / +80°C |
