Eltra EL63G10Z5/28P8X3PR1 Incremental Encoder
중고
재고 있음1 단위즉시 배송 가능
150,00$
증분 로터리 인코더 ELTRA EL63G10Z5/28P8X3PR1 블라인드 중공축, 토크 핀 장착 및 10 PPR 해상도의 광학 증분 인코더. IP54 보호 등급과 최대 3000 rpm 속도를 특징으로 하며, 정밀 로터리 측정에 적합합니다.
10BlindEL63G10Z5/28P8X3PR1EltraEncoderhollowIncrementalIndustrialIP54OpticalPPRRatedRotarySensorshaft
방대한 재고
글로벌 배송
전문 지원
품질 보장

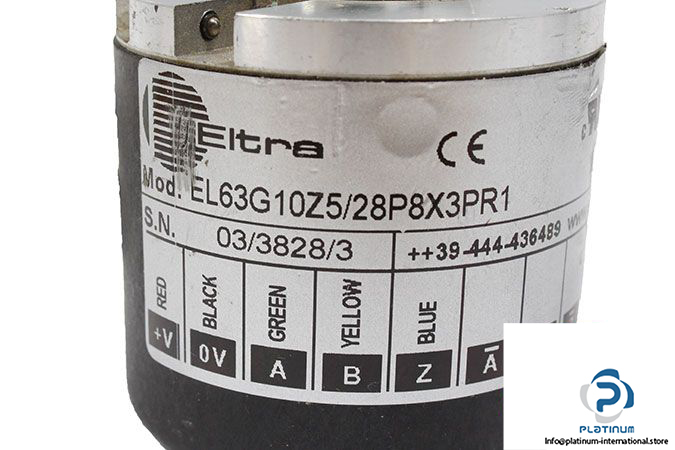

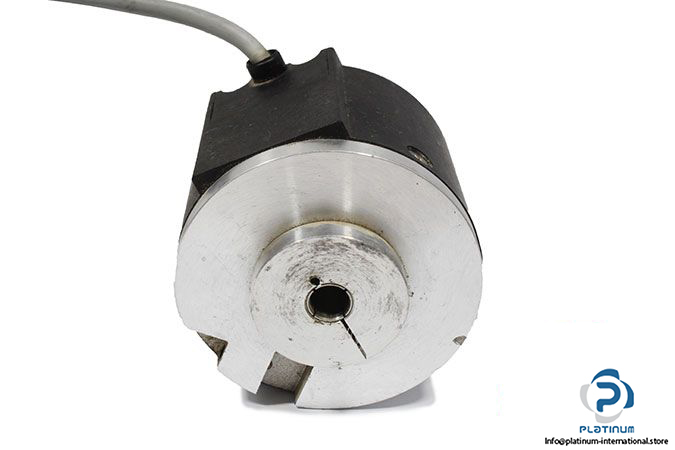

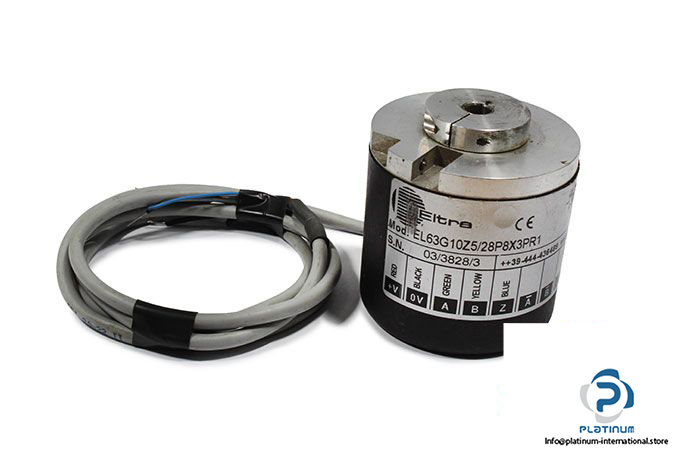

ELTRA EL63G10Z5/28P8X3PR1 INCREMENTAL ENCODER
The ELTRA EL63G10Z5/28P8X3PR1 is a high-precision incremental encoder designed for rotary measurement applications in industrial automation. Built with a robust construction and reliable optical sensing, this encoder ensures accurate signal output and dependable operation even in demanding environments.
Manufacturer: ELTRA
Type: Incremental Encoder
Model: EL63G10Z5/28P8X3PR1
Serial No.: 03/3828/3
| Shaft Type | Blind Hollow Shaft |
| Mounting Type | Torque Pin |
| Electronic Interface | Push Pull |
| Resolution | 10 PPR |
| Power Supply | 5 / 28 VDC |
| Bore Diameter | 8 mm |
| Enclosure Rating | IP54 |
| Max Rotation Speed | 3000 RPM |
| Output Type | Cable |
| Direction Type | Radial |
| Construction Size | 63.5 mm |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
| Operating Temperature | 0 / +60 °C |
