Eltra EL63G24S5/28P8X3PR Incremental Encoder
신제품
재고 있음3 단위즉시 배송 가능
INCREMENTAL ENCODER ELTRA EL63G24S5/28P8X3PR는 24 ppr 해상도, 중공 축 설계 및 IP54 등급을 갖춘 광학 로터리 인코더입니다. 5-28 V DC에서 푸시-풀 인터페이스 및 토크 핀 장착 방식으로 작동합니다.
24AutomationEL63G24S5/28P8X3PREltraEncoderhollowIncrementalIndustrialInterfacemountOpticalpinPPRPullPushRotaryshaftTorque
방대한 재고
글로벌 배송
전문 지원
품질 보장

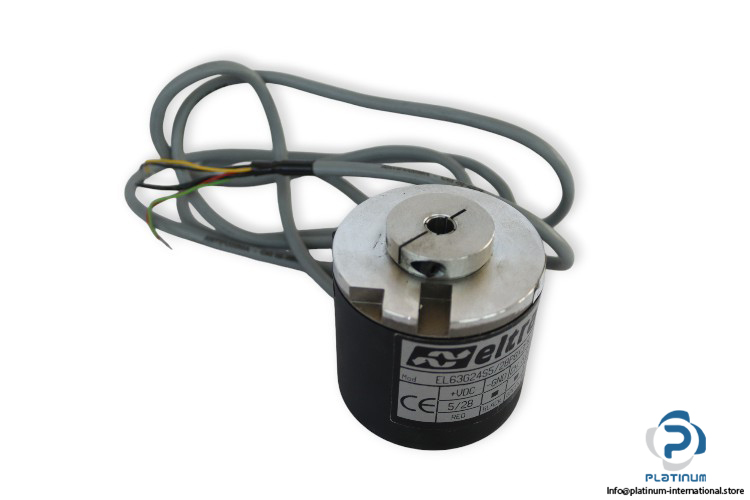

ELTRA EL63G24S5/28P8X3PR INCREMENTAL ENCODER
This high-quality optical incremental encoder from ELTRA offers reliable and precise rotary motion sensing, ideal for industrial automation systems. With a hollow shaft design and compact form factor, it ensures easy installation and stable performance under various conditions.
Manufacturer: ELTRA
Type: Incremental Encoder

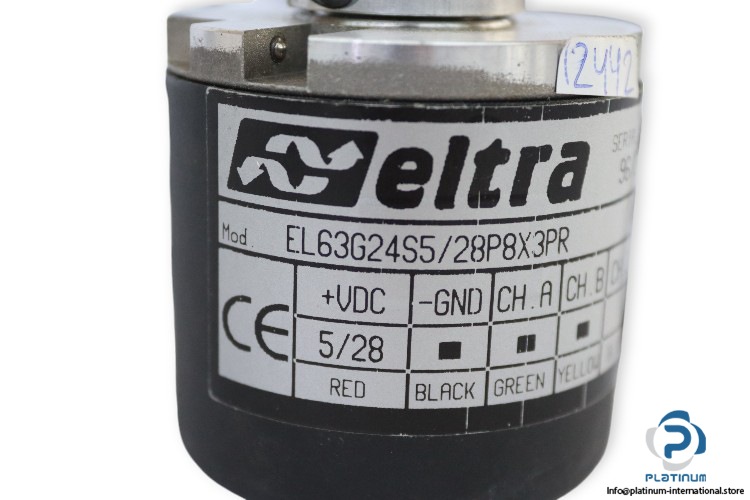

Model: EL63G24S5/28P8X3PR

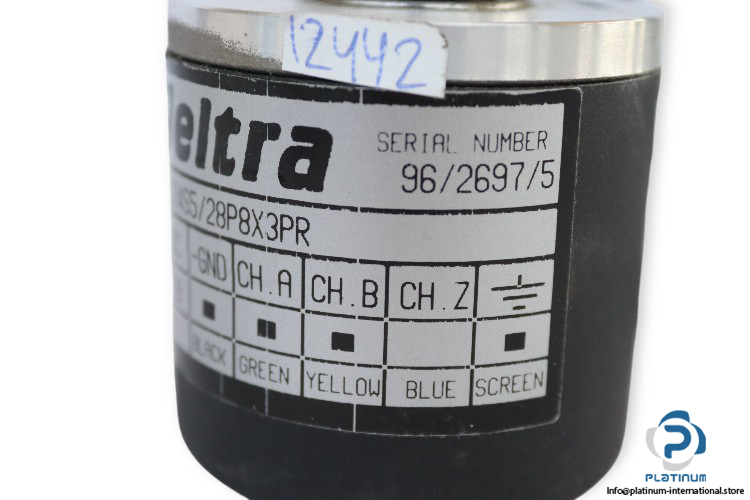

Serial No.: 96/2697/5
| Supply Voltage | 5 / 28 V DC |
| Principle of Operation | Incremental |
| Mounting Type | Torque Pin |
| Electronic Interface | Push Pull |
| Shaft Type | Hollow Shaft |
| Resolution | 24 ppr |
| Bore Diameter | 8 mm |
| Enclosure Rating | IP54 |
| Max Rotation Speed | 3000 rpm |
| Output Type | Cable (6 wires) |
| Construction Size (Diameter) | 63 mm |
| Max Output Frequency | 250 kHz |
| Operating Temperature | -10 / +60°C |
| Direction Type | Radial |
| Measurement Type | Rotary |
| Type of Sensor | Optical |
