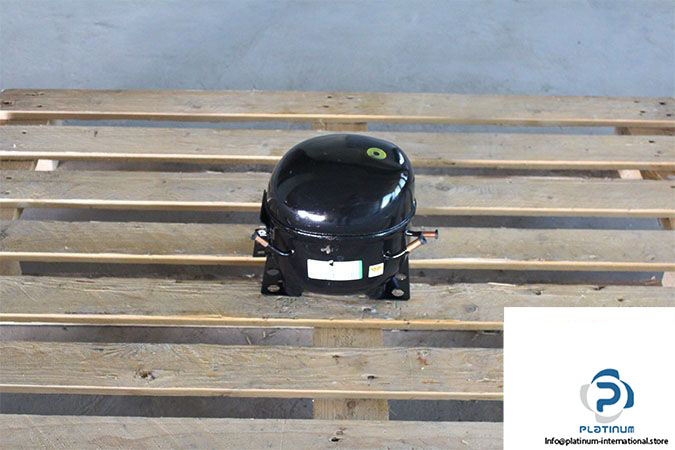

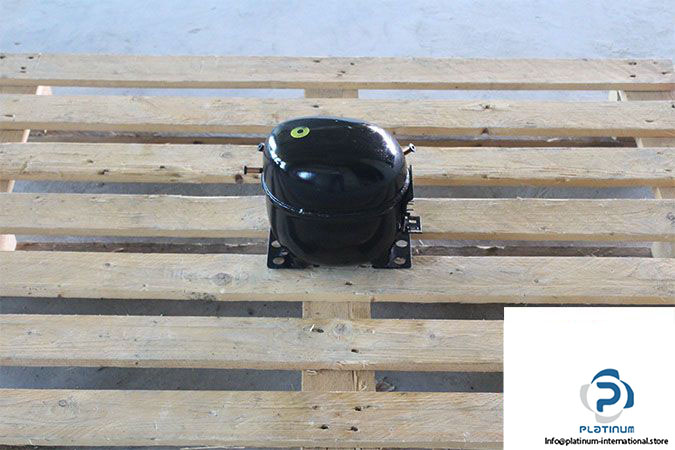

Embraco NEK6217GK Compressor
EMBRACO NEK6217GK COMPRESSOR
The Embraco NEK6217GK is a high-performance single-phase compressor designed for refrigeration systems using R-404A refrigerant. With durable construction and high efficiency, it supports a wide range of evaporating temperatures and is built for reliable performance under demanding conditions.
Manufacturer: Embraco
Type: Compressors
Model: NEK6217GK

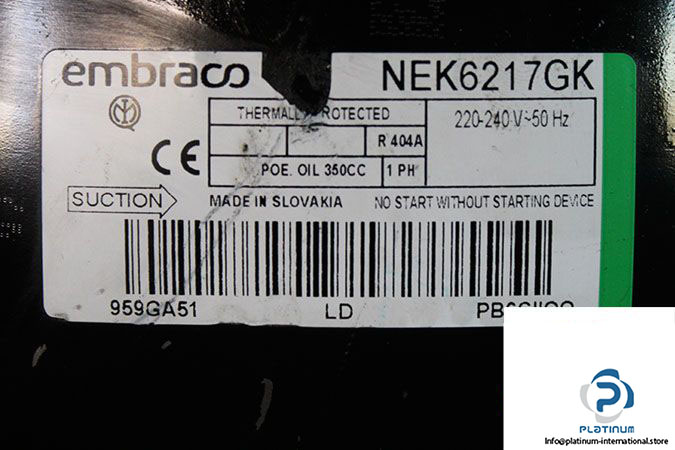

Engineering Nr.: 959GA51
Phase: 1~ Single Phase
| Horsepower [Hp] | 3/4 |
| Rated Voltage [V] | 220“240 |
| Displacement [cm³] | 14.28 |
| Bore [mm] | 14.28 |
| Stroke [mm] | 30.157 |
| Start Winding Resistance [„¦] | 12 |
| Run Winding Resistance [„¦] | 3.34 |
| Max Condensing Pressure Operating [kgf/cm²] | 25.7 |
| Max Condensing Pressure Peak [kgf/cm²] | 28.7 |
| Evaporating Temperature Range [°C] | -20 to 10 |
| Maximum Winding Temperature [°C] | 130 |
| Frequency [Hz] | 50 |
| Refrigerant | R-404A |
| Lubricant Charge [ml] | 350 |
| Lubricant Type/Viscosity | ESTER / ISO22 |
