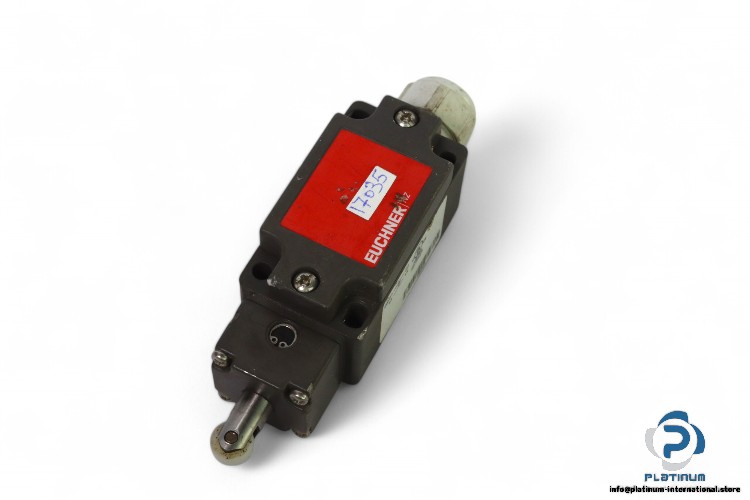

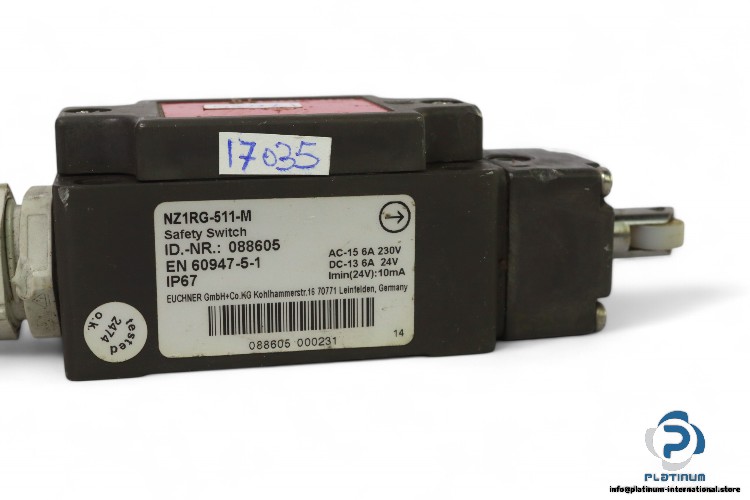

Euchner NZ1RG-511-M Safety Switch

Manufacturer: EUCHNER
Type: SAFETY SWITCH
Model: NZ1RG-511-M
Order no.: 088605

Rated insulation voltage Ui: 250 V
Rated impulse withstand voltage Uimp: 2.5 kV
Switching current min. at DC 24V: 10 mA
thermal rated current Ith: 6 A
Connection type: 1 x M20 x 1.5
Number of NO contacts: 1 normally open
Number of door position positively driven contacts: 1
Actuating element: Slide bearing plastic, Roller plunger
Actuating force: 15 … 30 N
Contact bounce time: max. 3 ms
Switching principle: Snap-action
Degree of protection: IP67
Ambient temperature: -25 … +80 °C
Housing Material: Anodized die-cast alloy
Connection cross section: 0.34 … 1.5 mm²
