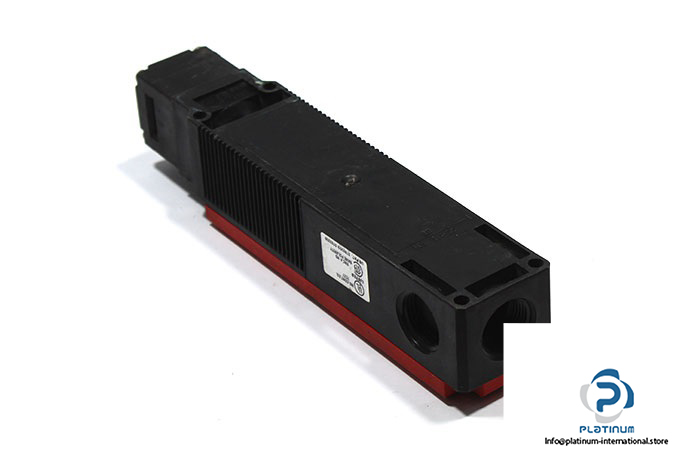

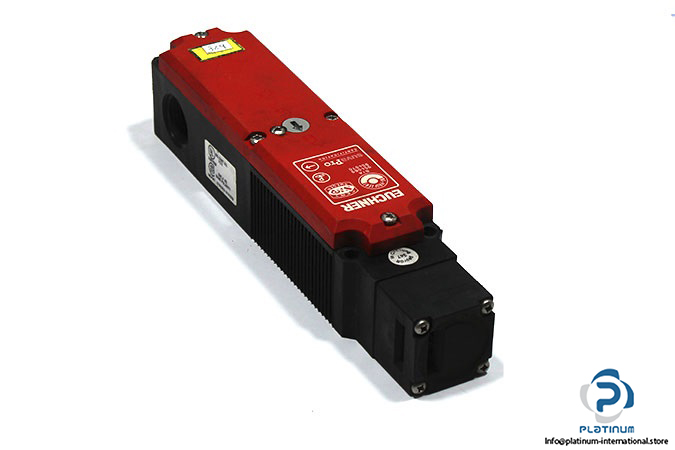

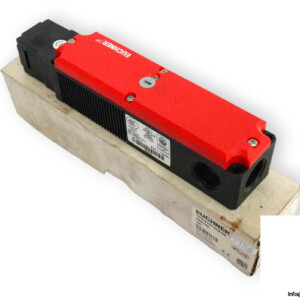

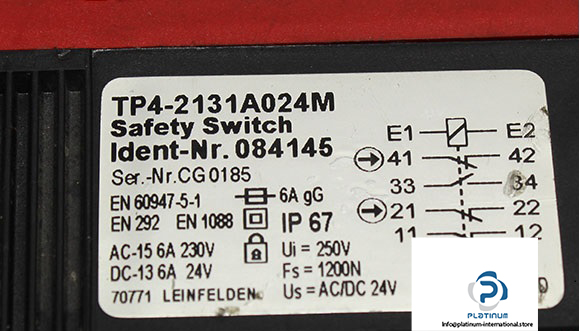

Euchner TP4-2131A024M Safety Switch TP
Manufacturer: EUCHNER
Type: Safety Switch TP With Door Monitoring Contact
Model: TP4-2131A024M
Part No.: 084145
NO. of contacts: 1 Normally open, 3 Normally closed
Extraction force: 20 N
Actuating force: 10 N
Locking force Fmax: 1200 N
Approach speed: max. 20 m/min
Switching principle: Slow-action switching contact
Guard locking principle: Open-circuit current principle
Solenoid operating voltage: 24 V AC/DC
Connector type: 3 xM20 x 1.5
Operating Temperature: -25 … 55°C
Housing material: Reinforced thermoplastic
Enclosure Rating: IP67
