Eurotherm T640 / DC Controller Module
중고
재고 있음2 단위즉시 배송 가능
233,33$
CONTROLLER MODULE
The Eurotherm T640/DC controller module delivers accurate analogue and digital input/output performance with IP65 front panel protection, ideal for industrial process automation systems.AnalogueAutomationControllerCurrentDigitalEurothermIndustrialInputIP65ModuleOutputProcessT640/DCvoltage
방대한 재고
글로벌 배송
전문 지원
품질 보장

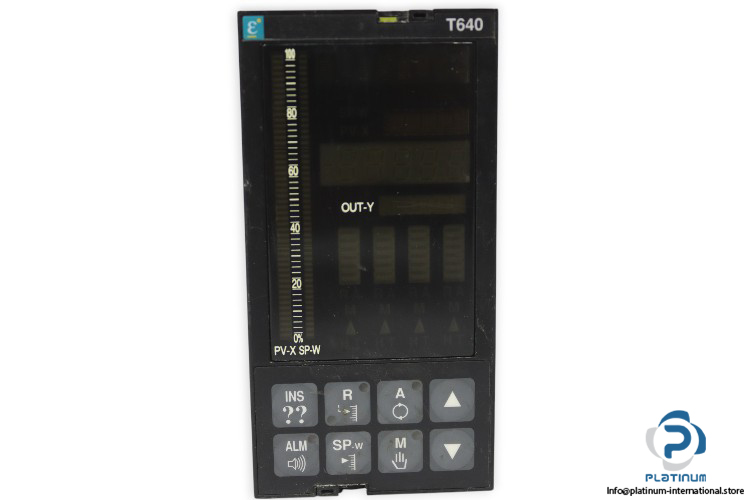

EUROTHERM T640/DC CONTROLLER MODULE
The Eurotherm T640/DC controller module is a high-performance process automation solution, designed for precise measurement, control, and reliable performance across industrial applications. It offers versatile analogue and digital inputs/outputs, robust transmitter supplies, and durable construction with IP65 front panel sealing.
Manufacturer: Eurotherm Process Automation
Type: Controller Module
Model: T640 / DC

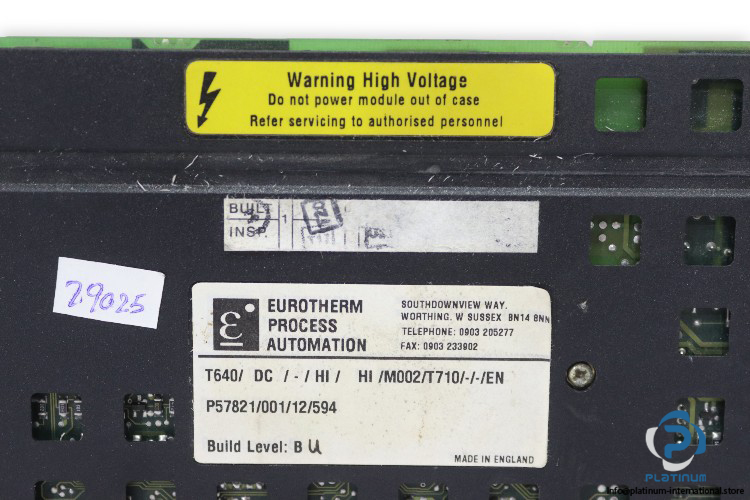

mnr: T640 / DC / - / HI / HI / H/M002/7710/-/-/EN
MRN: P57821/001/12/594
| Analogue Input | 4 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 0.025%, Accuracy 0.05% of range |
| Transmitter Power Supplies | 1 channel, Voltage 24V ±5%, Current 0-22mA |
| Voltage Analogue Outputs | 2 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 12 bits |
| Current Analogue Outputs | 1 channel, 0-20mA (Rangeable 0-10mA, 0-20mA, 4-20mA etc.), Over-range 22mA |
| Digital Inputs | 4 channels, Logic 1 ‰¥ 7.5V, Logic 0 ‰¤ 2.5V, Hysteresis 1.0V min “ 3.5V max |
| Operating Temperature | 0°C to +50°C |
| Front Panel Sealing | IP65 |
