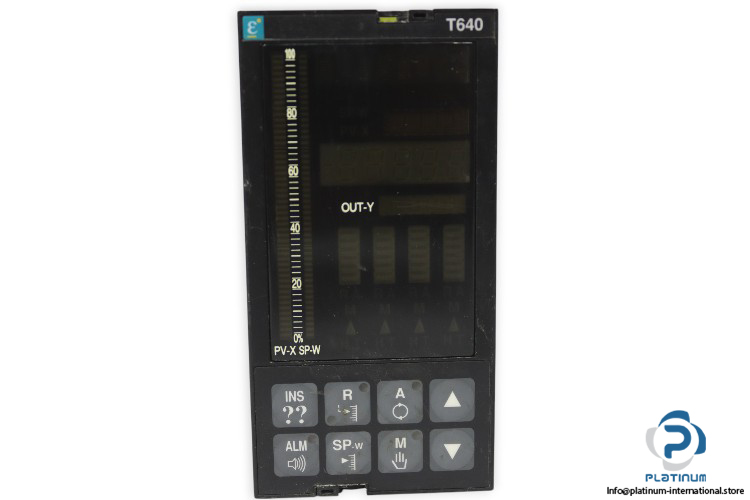

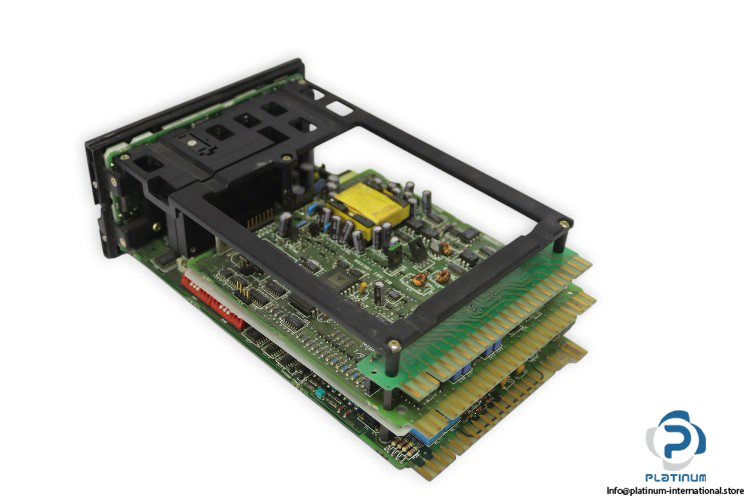

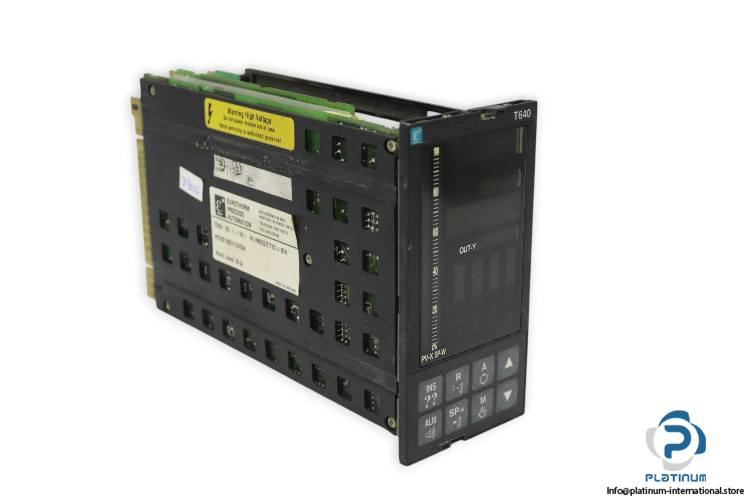

Eurotherm T640 / DC Controller Module

Name: EUROTHERM T640 / DC CONTROLLER MODULE
SKU: 1074867
Price: 233.33 USD
Availability: InStock

eurotherm-t640-controller-module(used)-1

eurotherm-t640-controller-module(used)-2

eurotherm-t640-controller-module(used)-3

Kullanılmış

Stokta2 ünitelerSevkiyata hazır

233,33$

CONTROLLER MODULE

The Eurotherm T640/DC controller module delivers accurate analogue and digital input/output performance with IP65 front panel protection, ideal for industrial process automation systems.

Üretici

EUROTHERM

SKU

1074867

Kategori

PLC Modules

Koşul

Kullanılmış

Analogue Automation Controller Current Digital Eurotherm Industrial Input IP65 Module Output Process T640/DC voltage

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

EUROTHERM T640/DC CONTROLLER MODULE

The Eurotherm T640/DC controller module is a high-performance process automation solution, designed for precise measurement, control, and reliable performance across industrial applications. It offers versatile analogue and digital inputs/outputs, robust transmitter supplies, and durable construction with IP65 front panel sealing.

Manufacturer: Eurotherm Process Automation

Type: Controller Module

Model: T640 / DC

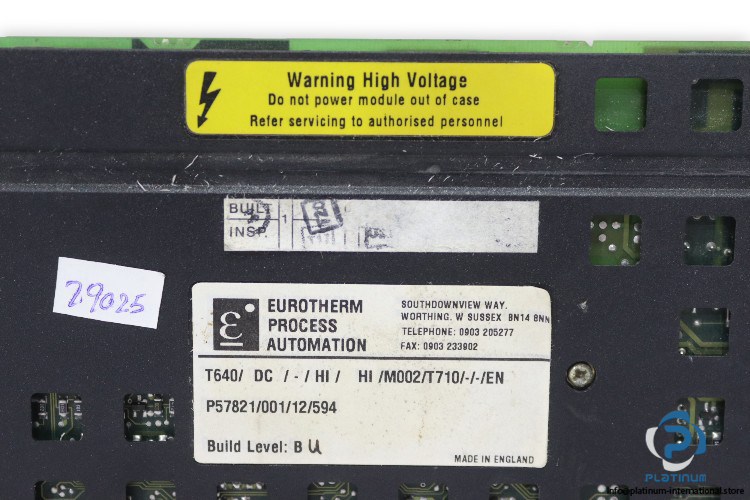

mnr: T640 / DC / - / HI / HI / H/M002/7710/-/-/EN

MRN: P57821/001/12/594

Analogue Input	4 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 0.025%, Accuracy 0.05% of range
Transmitter Power Supplies	1 channel, Voltage 24V ±5%, Current 0-22mA
Voltage Analogue Outputs	2 channels, 0-5V & 0-10V (software selectable), 0-1.25V (jumper selectable), Resolution 12 bits
Current Analogue Outputs	1 channel, 0-20mA (Rangeable 0-10mA, 0-20mA, 4-20mA etc.), Over-range 22mA
Digital Inputs	4 channels, Logic 1 ‰¥ 7.5V, Logic 0 ‰¤ 2.5V, Hysteresis 1.0V min “ 3.5V max
Operating Temperature	0°C to +50°C
Front Panel Sealing	IP65
