Festo 159585 Filter Regulator Unit
신제품
재고 있음1 단위즉시 배송 가능
Filter Regulator Unit
Festo LFR-D-MIDI-A filter regulator unit designed for industrial pneumatic systems, providing compressed air filtration, accurate pressure regulation, and stable airflow. The unit supports MIDI size installations and is suitable for applications requiring clean air supply and reliable pressure control.AirComponentCompressedFestofilterIndustrialLFR-D-Midi-AMidiPneumaticPreparationPressureregulatorSizeUnit
방대한 재고
글로벌 배송
전문 지원
품질 보장

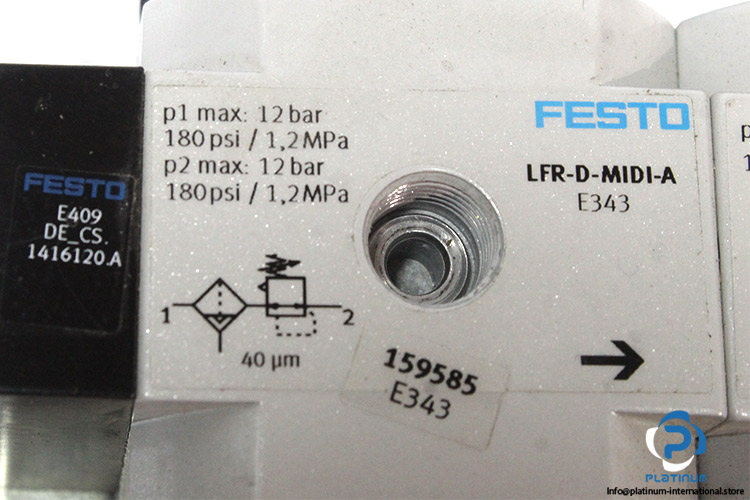

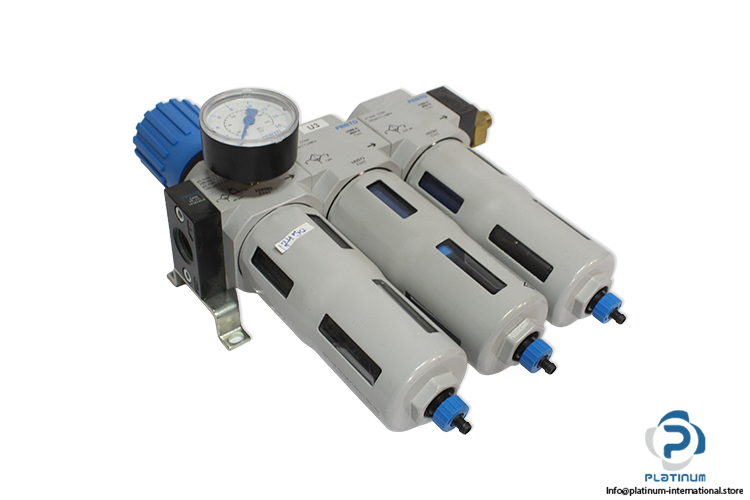

Festo LFR-D-MIDI-A Filter Regulator Unit
A high-performance filter regulator unit manufactured by Festo, designed to supply clean compressed air and provide precise pressure regulation in industrial pneumatic systems. This MIDI-size unit is engineered for stable operation, high nominal flow capacity, and reliable long-term performance in automation equipment and industrial machinery applications.
Manufacturer: Festo
Type: Filter Regulator Unit
Model: LFR-D-MIDI-A
Part No.: 159585
Code: E343
| Series | D |
| Size | Midi |
| Fluid | Compressed Air |
| Body Size | 30 |
| Grade of Filtration | 40 µm |
| P1 Max. | 12 bar / 180 PSI / 1.2 MPa |
| P2 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Operating Pressure Range | 2 to 12 bar |
| Pressure Regulation Range | 0.5 to 12 bar |
| Standard Nominal Flow Rate | 3400 l/min |
| Ambient and Fluid Temperature | 5 to 60 °C |
| Port Size | G 1/2 |
| Bowl Guard | Metal Bowl Guard |
| Housing Material | Die-Cast Zinc |

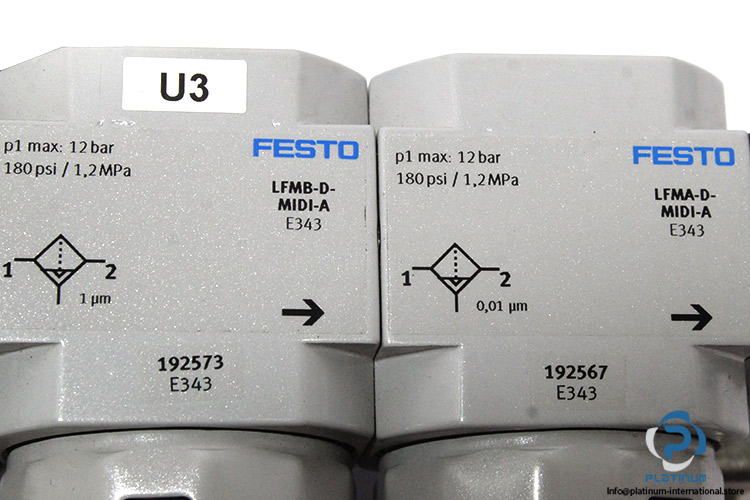

| Attachment “ FESTO 192573 FINE FILTER Manufacturer | Festo |
| Part No. | 192573 |
| Code | E343 |
| Operating Medium | Compressed Air |
| Series | D |
| Size | Midi |
| Design | Fibre Filter |
| Grade of Filtration | 1 µm |
| Condensate Drain | Fully Automatic |
| Operating Pressure P1 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Attachment “ FESTO 192567 MICRO FILTER Manufacturer | Festo |
| Part No. | 192567 |
| Code | E343 |
| Operating Medium | Compressed Air |
| Series | D |
| Size | Midi |
| Design | Fibre Filter |
| Grade of Filtration | 0.01 µm |
| Condensate Drain | Fully Automatic |
| Pneumatic Connection | Sub-Base |
| Operating Pressure P1 Max. | 12 bar / 180 PSI / 1.2 MPa |

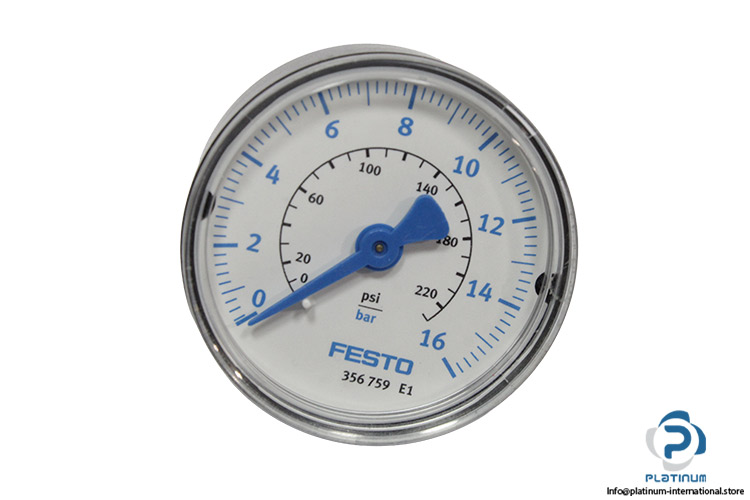

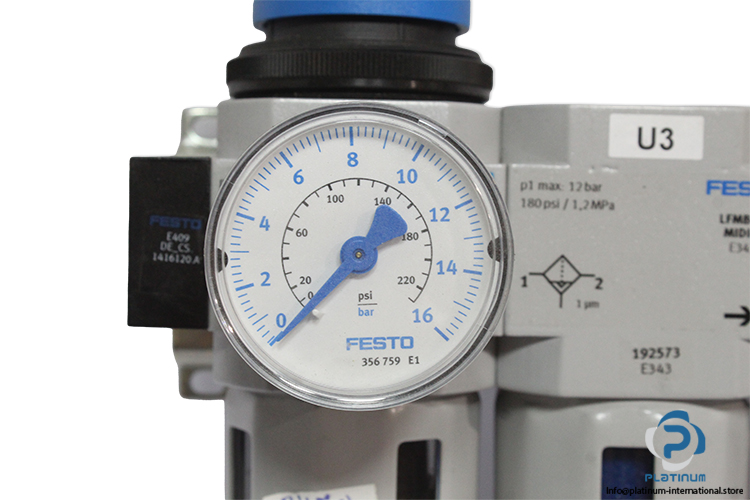

| Attachment “ FESTO 356759 PRESSURE GAUGE Manufacturer | Festo |
| Part No. | 356759 |
| Operating Medium | Inert Gases, Neutral Fluids |
| Pressure Range | 0 to 16 bar |
| Nominal Size of Pressure Gauge | 50 |
| Pneumatic Connection | G 1/4 |
| Materials in Contact with Media | Brass |
| Material Housing | ABS |
| Ambient Temperature | -20 to 60 °C |
