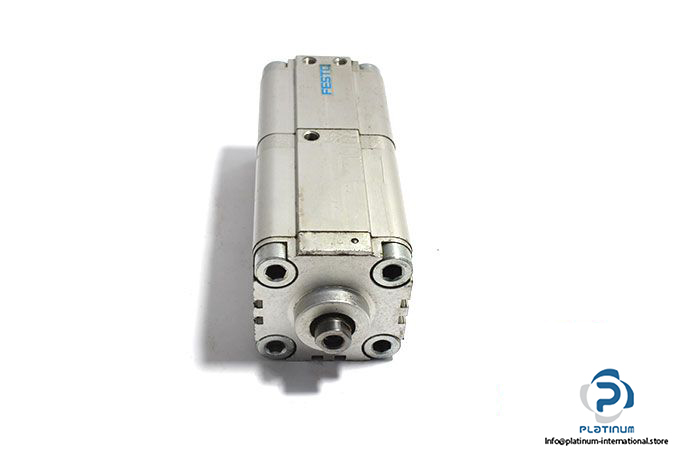

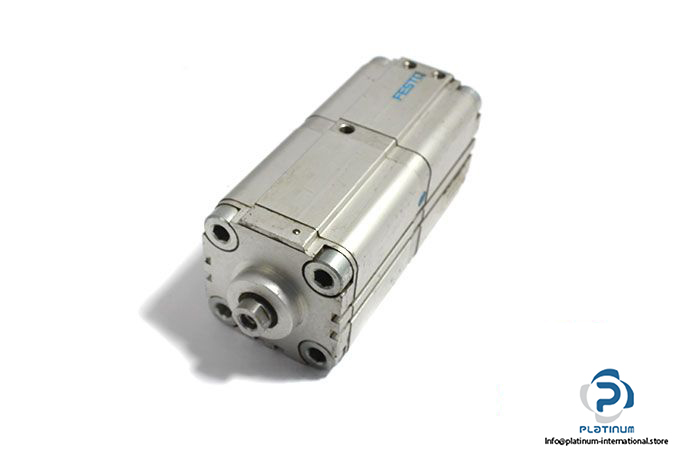

Festo 161149 Multi-Position Cylinder
중고
재고 있음2 단위즉시 배송 가능
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: FESTO
Type: Multi-Position Cylinder

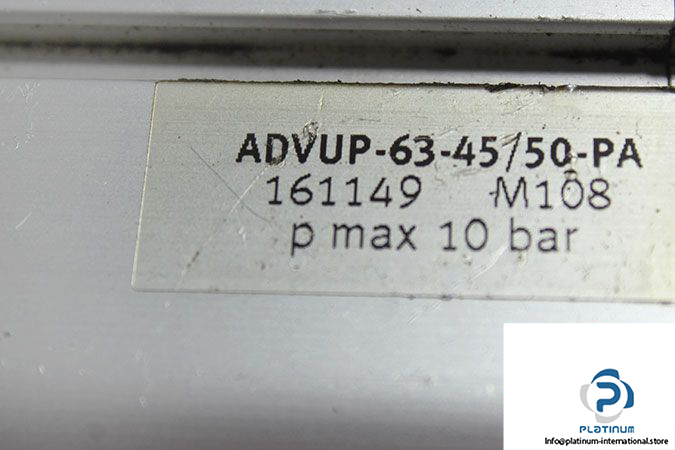

Model: ADVUP-63-45/50-PA
Part No.: 161149
Materials
,,Cylinder Tube: Aluminium wrought alloy Smooth anodised
,,Piston rod: High-alloy steel
Stroke Length ( 1 ): 45 mm
Stroke Length ( 2 ): 50 mm
Piston Diameter: 63 mm
Piston rod thread: Female thread
Operating Pressure: 0.6 … 10 bar
Cushioning: Flexible cushioning rings/pads at both ends
Position Sensing: Via proximity sensor
Pneumatic Connection: G1/8
Mode of operation: Double-Acting
Temperature: -20 … 80 °C
Weight: 4.00 kg
