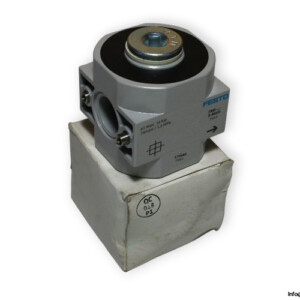

Festo 170686 Branching Module With Pressure Switch
신제품
재고 있음1 단위즉시 배송 가능
분기 모듈 FESTO FRM-D-MAXI 분기 모듈은 다이캐스트 아연 바디를 가진 내구성이 뛰어나고 고정밀의 공압 부품으로, 0-16 bar 압력에서 공기 분배용으로 설계되었습니다. 1-12 bar 범위의 신뢰할 수 있는 압력 모니터링을 제공하는 FESTO PEV-1/4-B-OD 압력 스위치를 포함합니다.
0/16175250AirANDbarBranchingCompressedconnectionsDistributionFestoG1/4G3/4high-performanceIndustrialModulemonitoringPneumaticPressureSwitchSystem
방대한 재고
글로벌 배송
전문 지원
품질 보장

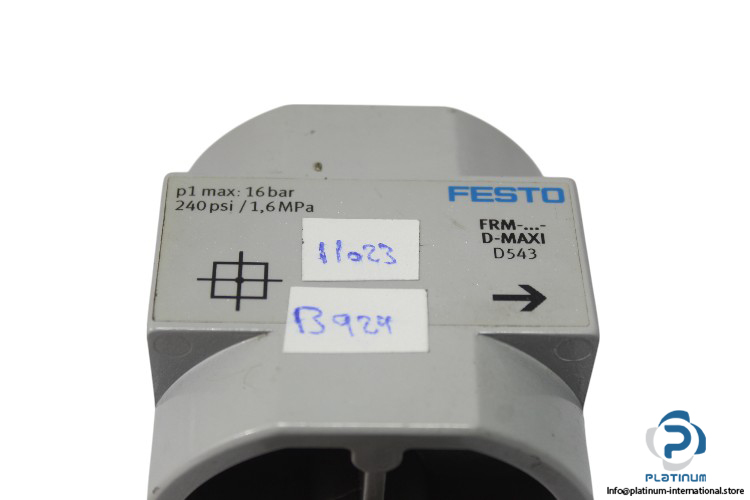

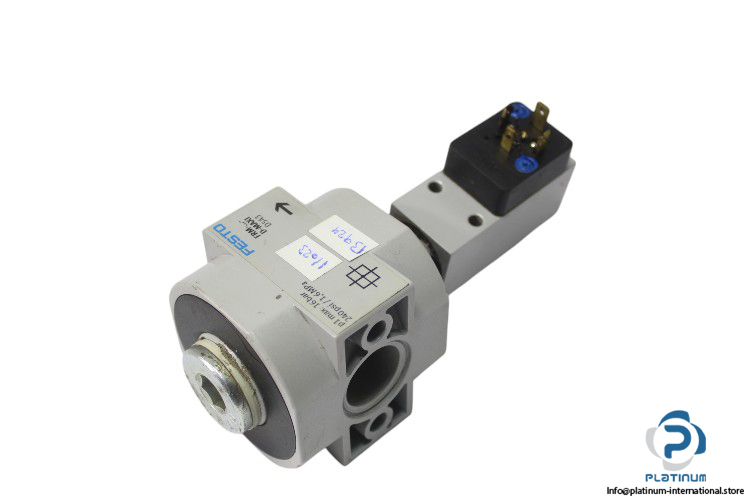

FESTO FRM-D-MAXI Branching Module with Pressure Switch
The FESTO FRM-D-MAXI Branching Module is a robust and high-performance pneumatic component designed for precise air distribution in industrial applications. Made from durable die-cast zinc, this module operates efficiently at pressures ranging from 0 to 16 bar. It comes equipped with the FESTO PEV-1/4-B-OD Pressure Switch, ensuring accurate pressure monitoring for enhanced system control and reliability.
- Manufacturer: FESTO
- Type: Branching Module
- Model: FRM-D-MAXI
- Part No.: 170686
Technical Specifications
- Operating Pressure: 0 bar … 16 bar
- Operating Medium: Compressed Air
- Housing Material: Die-cast Zinc
- Pneumatic Connection 3: G3/4
- Pneumatic Connection 4: G1/4

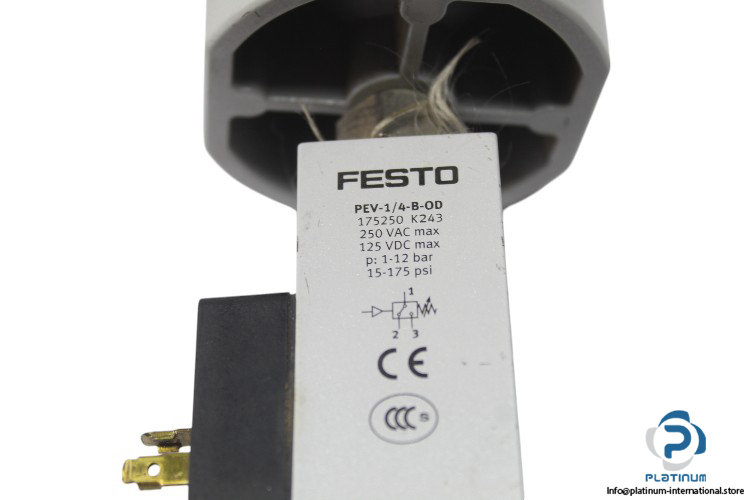

Attached Pressure Switch “ FESTO PEV-1/4-B-OD
- Manufacturer: FESTO
- Type: Pressure Switch
- Model: PEV-1/4-B-OD
- Part No.: 175250
- Fluid: Air, Water
- Measurement Method: Pneumatic/Electric Pressure Transducer
- Operating Pressure: 1 / 12 bar
- Connection: G ¼, Threaded
- Supply Voltage: 250 V AC, 125 V DC
- Fluid Temperature Range: -20 / 80°C
