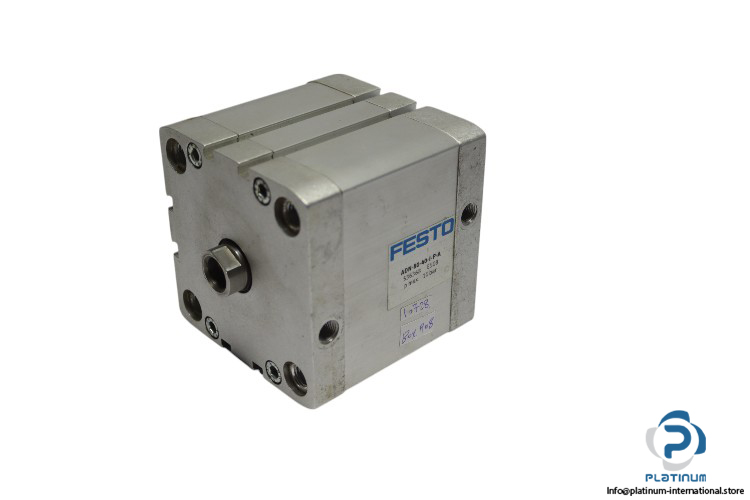

Festo 536368 Compact Cylinder
중고
재고 있음2 단위즉시 배송 가능
compact cylinder
The FESTO Compact Cylinder ADN-80-40-I-P-A (Part No. 536368) offers efficient operation with a 40 mm stroke, 80 mm piston diameter, and cushioning for industrial applications.4080ActingconnectionCushioningCylinderdiameterDoubleElasticG1/8IndustrialmmPistonPneumaticPositionSensingStroke
방대한 재고
글로벌 배송
전문 지원
품질 보장
FESTO COMPACT CYLINDER
The FESTO Compact Cylinder (Model: ADN-80-40-I-P-A, Part No. 536368) is designed for high-performance industrial applications. With an 80 mm piston diameter and a 40 mm stroke length, this double-acting cylinder ensures efficient operation in a wide range of environments. It features elastic cushioning rings for shock absorption and is suitable for proximity sensing.
Manufacturer: FESTO
Type: Compact Cylinder

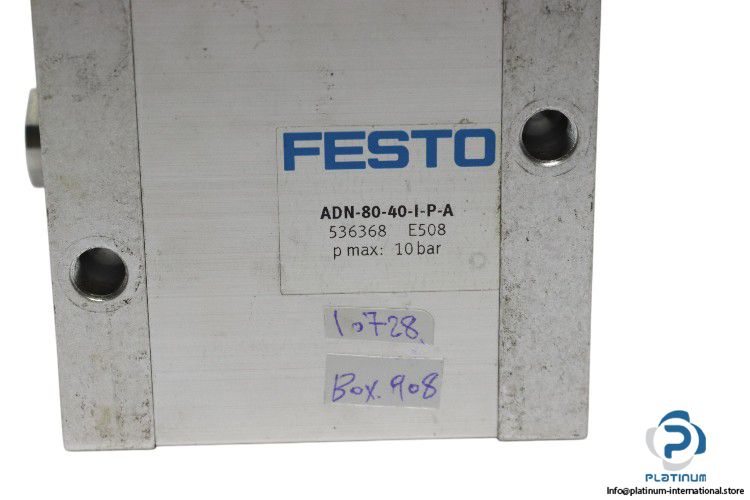

Model: ADN-80-40-I-P-A
Part No.: 536368
Technical Specifications
- Stroke Length: 40 mm
- Piston Diameter: 80 mm
- Piston Rod Thread: Female
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Pneumatic Connection: G1/8
- Temperature: -20 … 80 °C
