Festo 543973 Mini Slide
중고
재고 있음1 단위즉시 배송 가능
Mini Slide
The Festo DGSL-12-50-P1A mini slide features a 16mm piston diameter, 50mm stroke, and 121N force at 6 bar. Designed for precision movement with elastic cushioning, it operates with compressed air and has a maximum speed of 0.8 m/s.ActuatorActuatorsAdjustableAirBallbearingCageCompresseddouble-actingFestoGuideMiniPneumaticPositioningSlideStrokeSystem
방대한 재고
글로벌 배송
전문 지원
품질 보장

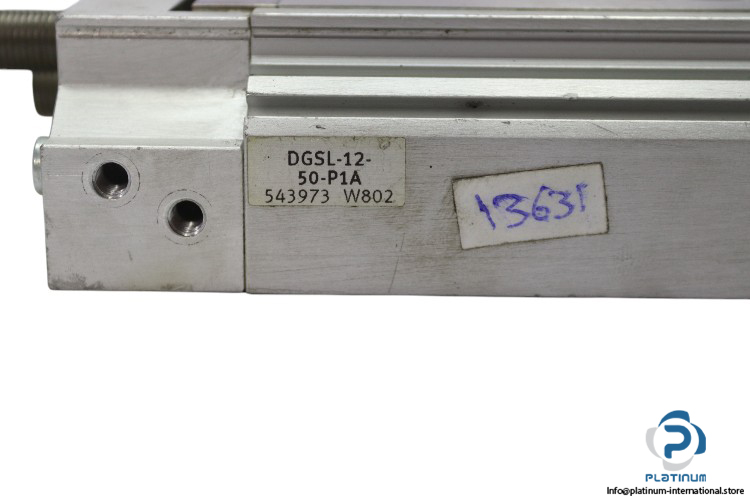

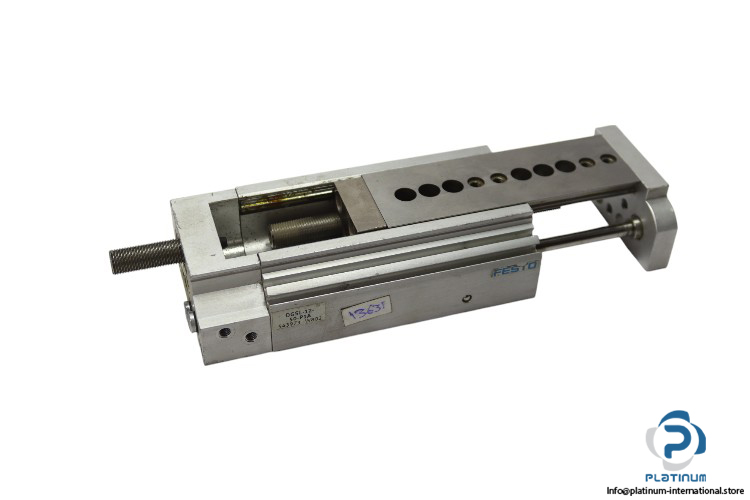

Festo DGSL-12-50-P1A Mini Slide
The Festo DGSL-12-50-P1A mini slide is a compact and versatile actuator designed for precise movement and positioning. Equipped with ball bearing cage guides and elastic cushioning, it provides smooth and reliable performance, ideal for applications requiring adjustable stroke lengths and high-speed operation.
Manufacturer: FESTO
Type: Mini Slide
Model: DGSL-12-50-P1A
Part No.: 543973
Technical Data:
- Piston Diameter: 16 mm
- Theoretical Force at 6 bar, Advancing: 121 N
- Stroke: 50 mm
- Cushioning: Elastic cushioning rings/pads at both ends with fixed stop
- Position Sensing: For proximity sensor
- Adjustable End-Position Range/Front Length: 29 mm
- Adjustable End-Position Range/Rear Length: 25.5 mm
- Guide: Ball bearing cage guide
- Operating Pressure: 1 bar … 8 bar
- Max. Speed: 0.8 m/s
- Mode of Operation: Double-acting
- Operating Medium: Compressed air
- Housing Material: Wrought aluminum alloy
- Pneumatic Connection: M5
