Festo LR-D-Mini Pressure Regulator
재고 있음1 단위즉시 배송 가능
Festo LR-D-Mini Pressure Regulator
압력 조절기 FESTO LR-D-MINI는 0.5 ... 12 bar 조절 범위와 1500 l/min 정격 유량으로 정밀한 공기압 제어를 보장합니다. G 1/8 및 G 1/4 연결부와 내구성 있는 다이캐스트 아연 구조를 특징으로 합니다. 공기 품질 향상을 위해 FESTO LOE-D-MINI 에어 라인 윤활기와 함께 제공됩니다.
1/41/812159625192575AirbarCompressedFestoGLineLOE-D-MiniLR-D-MiniLubricatorpneuPneumaticPressureregulator
방대한 재고
글로벌 배송
전문 지원
품질 보장

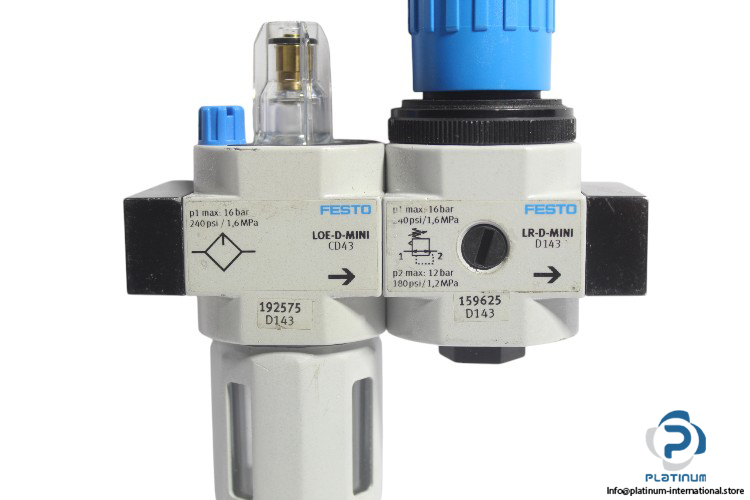

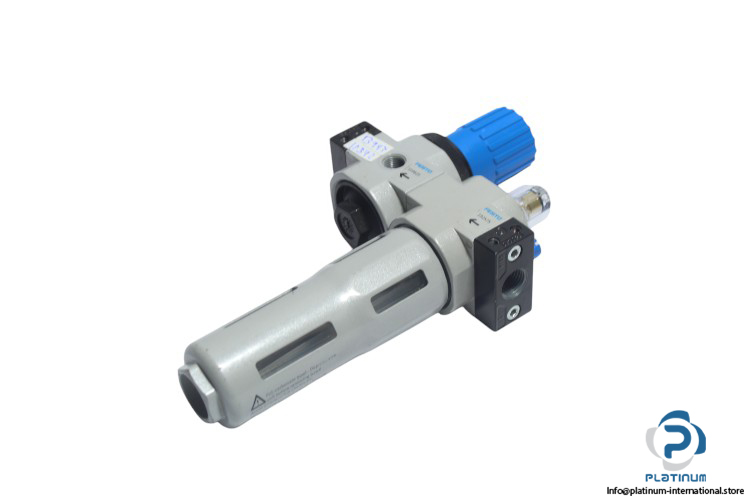

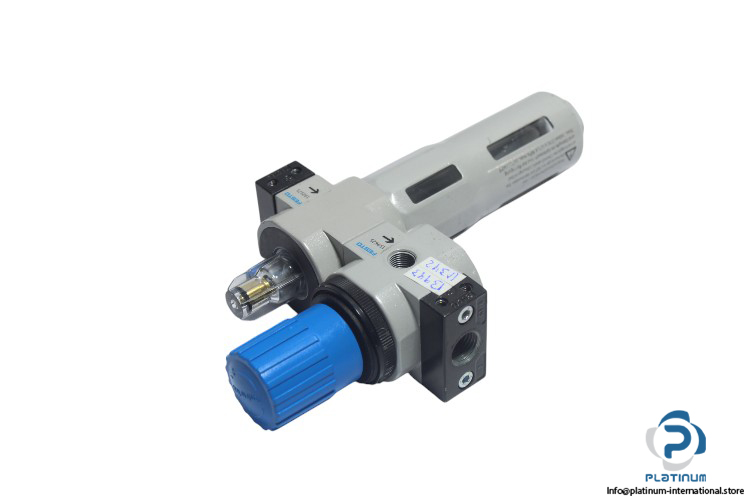

FESTO LR-D-MINI Pressure Regulator with LOE-D-MINI Air Line Lubricator
The FESTO LR-D-MINI Pressure Regulator is a high-performance air pressure control device designed for precise regulation in pneumatic systems. Paired with the FESTO LOE-D-MINI Air Line Lubricator, this combination ensures efficient pressure management and optimized air quality for enhanced system longevity.
Manufacturer: FESTO
Type: Pressure Regulator
Model: LR-D-MINI
Part No.: 159625
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Pressure Regulation Range | 0.5 ... 12 bar |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| P2 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G 1/8 & G 1/4 |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
| Attachment | FESTO LOE-D-MINI Air Line Lubricator |
| Part No. | 192575 |
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| Nominal Flow Rate | 3 l/min |
| Oil Capacity Max. | 45 cm³ |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
| 사양 | 가치 |
|---|---|
| Weight | 0,64 kg |
| Condition | Used |
| Type of Product | Air Line Lubricator |
| Shelf No. | 250324 |
| Manufacturer | FESTO |
| Model | LOE-D-MINI |
