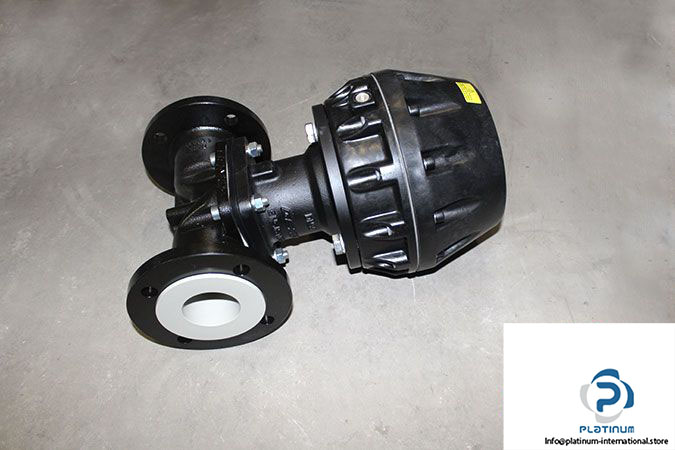

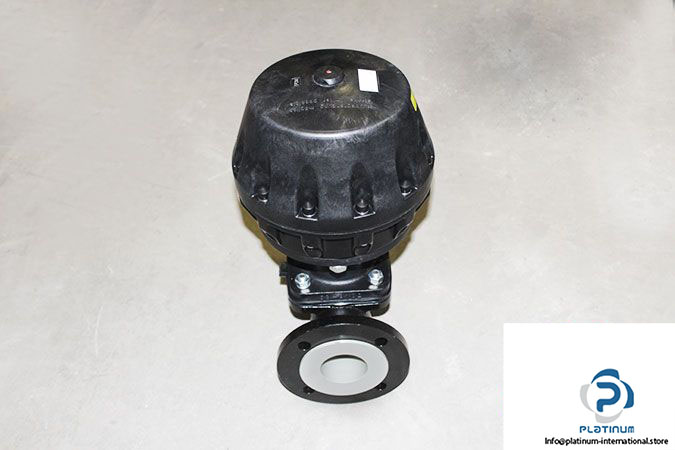

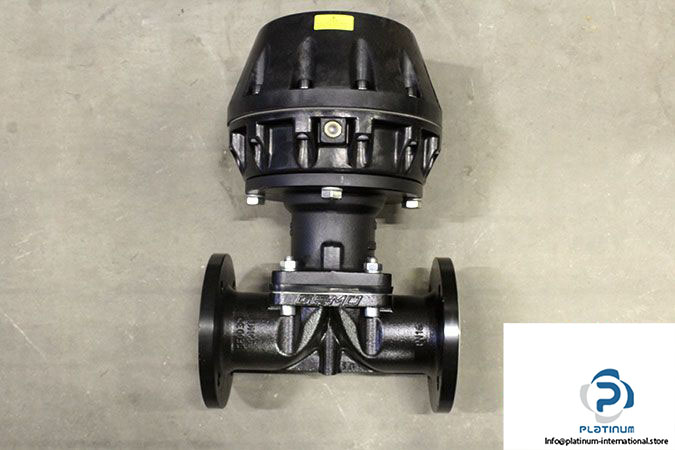

Gemu 620 65D 8181413/2 Diaphragm Valve
신제품
재고 있음2 단위즉시 배송 가능
1 200,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: GEMU
Type: Diaphragm valve
Art No.: 88005799
Order Code: 62065D8181413/2
Diaphragm valve, pneumatically operated, membrane actuator, cast iron distance piece
Working medium: Corrosive, inert, gaseous and liquid media which have no negative impact on
the physical and chemical properties of the body and diaphragm material
Size: DN65
Operation: 2/2-way body
Control Function: Normally closed (NC)
Flange: Flange EN 1092, PN 16
Valve body material: EN-GJS-400-18-LT (GGG 40.3), PP lined
Diaphragm Material: FPM
Actuator version: Actuator size 3/2
Operating Pressure: 6 bar
Media temperature: -10 — 90 °C
Weight: 25.8 kg
