Siemens UH50-C47C-IT06-G Ultrasonic Meter
신제품
요청 시 제공 가능
395,00$
가열 및 냉각 회로용 고정밀 Siemens 초음파 에너지 미터. PT500 센서 지원, 유량 3.5 m³/h, PN25 압력 등급 및 IP54 보호 기능을 갖추어 열에너지 모니터링 시스템에 적합합니다.
CircuitCoolingDeviceEnergyflowHeatHeatingHydronicIndustrialMeasurementMetermonitoringPt500SensorSiemensThermalUltrasonic
방대한 재고
글로벌 배송
전문 지원
품질 보장

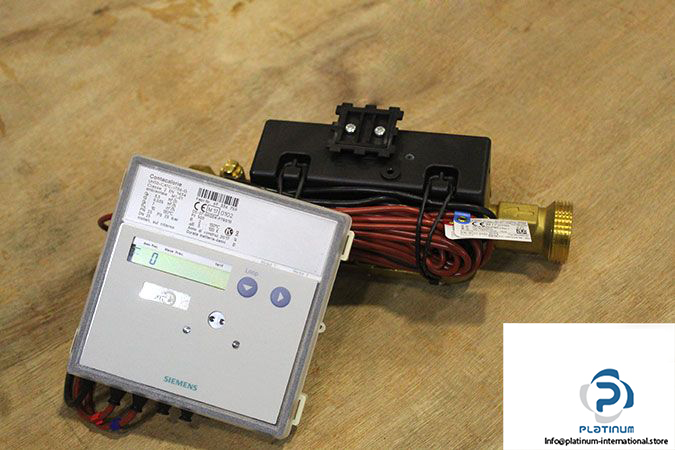

SIEMENS UH50-C47C-IT06-G ULTRASONIC ENERGY METER
The Siemens UH50-C47C-IT06-G is a high-precision ultrasonic heat and cooling energy meter designed for accurate flow and energy measurement in hydronic heating or refrigeration circuits. With robust construction and reliable performance, this unit is ideal for residential, commercial, and industrial energy monitoring systems.

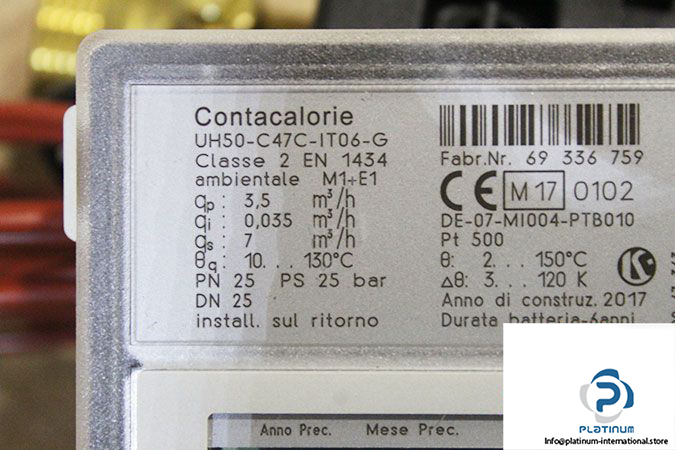

Manufacturer: SIEMENS
Type: Ultrasonic Heat and Cooling Energy Meter
Model: UH50-C47C-IT06-G
MRN: DE-07-MI004-PTB010
FAB NO: 69 336 759
| Sensor Type | PT500 |
| Measuring Accuracy | Class 2 / 3 (EN1434) |
| Connection | G 1 1/4 B |
| Flow Rate | 3.5 m³/h |
| Rated Pressure | PN25 |
| Pipe Diameter | DN25 |
| Mounting Length | 260 mm |
| Heating Application Range | 10 / 130 °C |
| Cooling Application Range | 5 / 50 °C |
| Overload Capacity | Max. 2.8 |
| Ambient Temperature | 5 / 55 °C |
| Protection Class | IP54 (EN60529) |
