Hawe R5,3 Radial Piston Pump
중고
재고 있음1 단위즉시 배송 가능

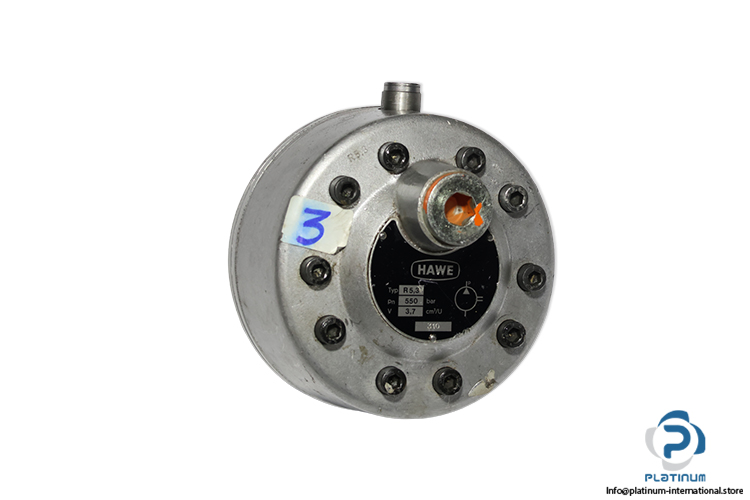

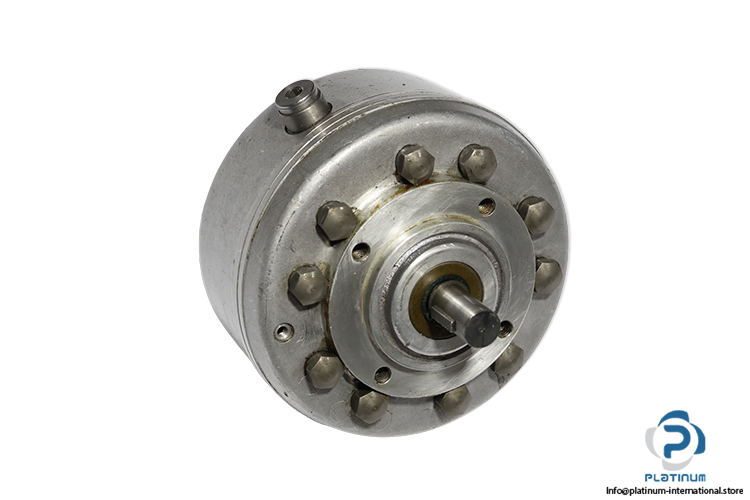

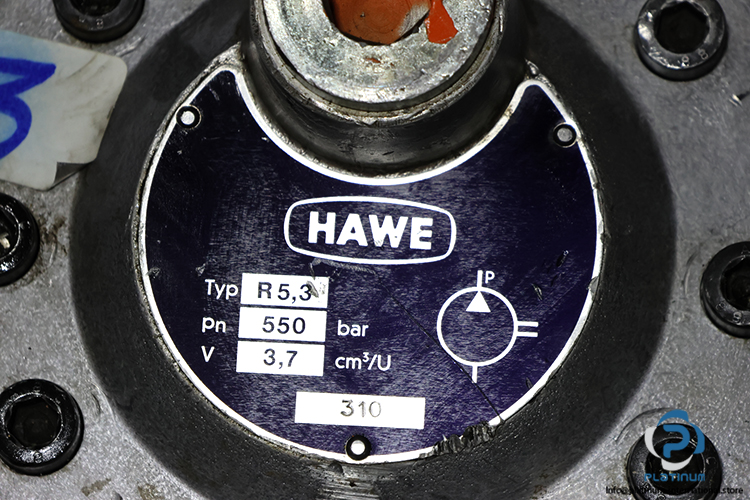

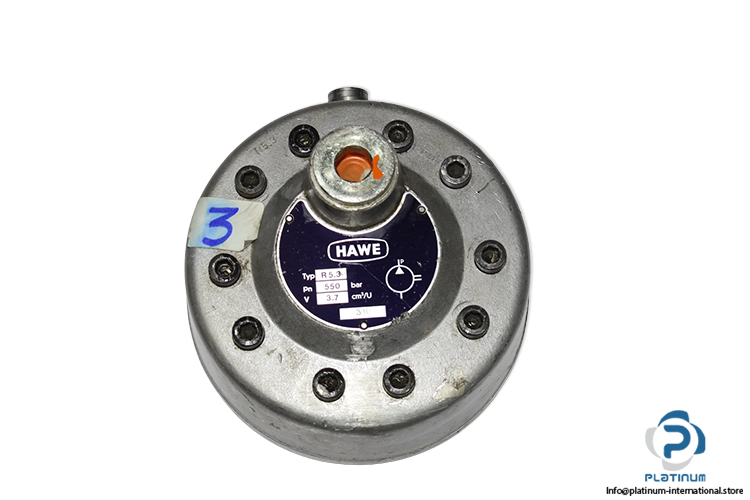

Radial Piston Pump HAWE R 5,3 high-pressure radial piston pump featuring a maximum operating pressure of 550bar, 3.7 cm3/rev displacement, and 91.2 l/min delivery flow at 1450 rpm. Designed for industrial hydraulic systems and fluid power applications.
방대한 재고
글로벌 배송
전문 지원
품질 보장
| Series | R |
| Code | 310 |
| Fluid | oil |
| Shaft Diameter | 22 mm |
| Operating pressure pmax | 550 bar |
| Operating pressure / operating pressure HFA version pmax (bar) | 600 / 410 |
| Displacement volume Vg max | 3.7 cm3/rev |
| Flow rate Qmax | 91.2 l/min |
| Coding delivery Fow (l/min) at 1450 min-1 | 5.3 |
| Pump elements Number ,Piston DIA (mm) | 10 X 8 mm |
| Power range of motor (kW) | 2.2 - 7.5 (9) |
| Stock key | CON003 |
| Condition | Used |
| SKU | 1101732 |
| Weight | 9,20 |
