Heidenhain ERN 120.M003-5000 Rotary Encoder
신제품
재고 있음1 단위즉시 배송 가능
249,99$
Rotary Encoder
A high-resolution hollow-shaft rotary encoder providing accurate position feedback for servo systems, CNC machinery, and industrial motion control applications.1205000CNCControlEncoderERNFeedbackHeidenhainhollowIncrementalIndustrialMotionPPRRotarySensorServoshaft
방대한 재고
글로벌 배송
전문 지원
품질 보장

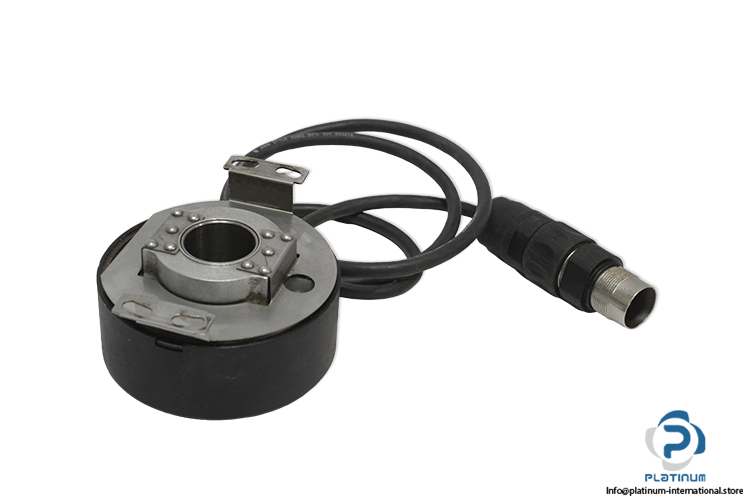

HEIDENHAIN ERN 120.M003-5000 Rotary Encoder
A high-precision rotary encoder designed for accurate position and speed feedback in demanding industrial automation environments. This encoder is suitable for servo drives, CNC machinery, and motion control systems where reliability and high resolution are essential. Manufacturer: HEIDENHAIN
Type: Rotary Encoder

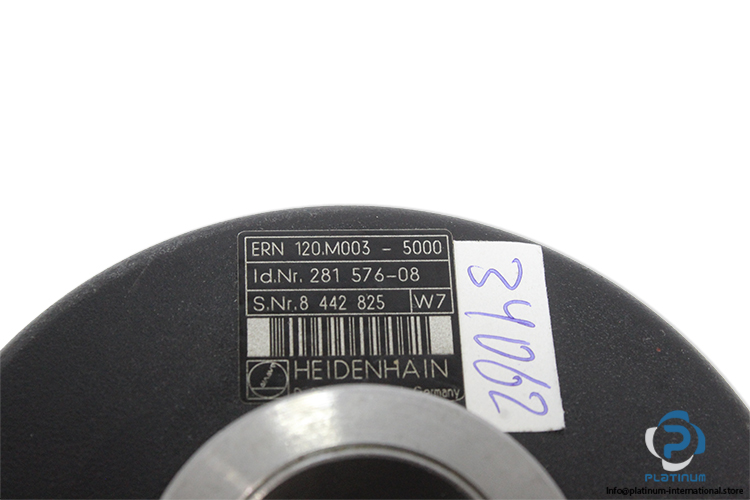

Model: ERN 120.M003-5000
ID No.: 281 576-08
Serial No.: 8 442 825 /W7
| Power Supply | 5 V DC |
| Current | Max. 120 mA |
| Resolution | 5000 Pulses Per Revolution (PPR) |
| Shaft Design | Hollow Shaft |
| Shaft Diameter | 25 mm |

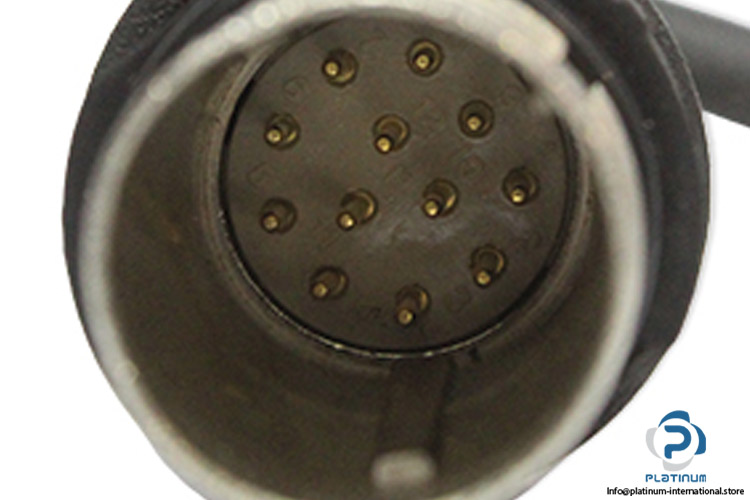

| No. of Pins | 12 Pin |
| Permissible Axial Motion of Measured Shaft | 1.5 mm |
| Protection Rating | IP64 (EN 60529) |
| Maximum Operating Temperature | 100 °C |
| Minimum Operating Temperature | “40 °C (Flange Socket or Fixed Cable) |
| Minimum Operating Temperature (Moving Cable) | “10 °C |
