Sick AFS60A-S1PK262144 Absolute Encoder
중고
재고 있음1 단위즉시 배송 가능
249,99$
ABSOLUTE ENCODER
Sick AFS60A-S1PK262144 absolute encoder with SSI driver, 18-bit resolution, CW/CCW adjustable code sequence, 6 mm solid shaft, IP65/IP67 protection, and wide -40 °C to +100 °C operating range.103750018-bit6AbsoluteAFS60A-S1PK262144AutomationDriverEncoderHigh-ResolutionIndustrialIP65IP67mmshaftSickSSI
방대한 재고
글로벌 배송
전문 지원
품질 보장

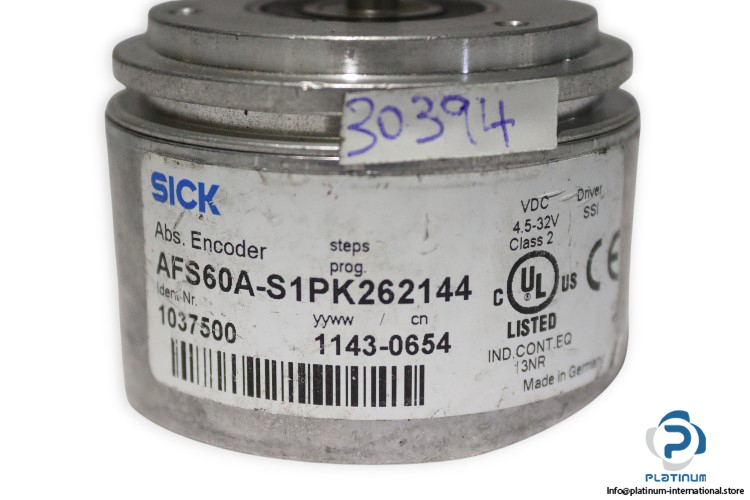

Sick AFS60A-S1PK262144 Absolute Encoder
The Sick AFS60A-S1PK262144 is a high-precision absolute encoder designed for demanding industrial automation tasks. With an 18-bit resolution, adjustable code sequence, and robust enclosure ratings, it ensures reliable feedback and operation in harsh environments.
Manufacturer: Sick
Type: Absolute Encoder
Model: AFS60A-S1PK262144
ID No.: 1037500
yyww - cn: 1143-0654
| Voltage | 4.5 to 32 V DC |
| Class | 2 |
| Driver | SSI |
| Number of Steps per Revolution (Max. Resolution) | 262,144 (18 bit) |
| Code Sequence Parameter Adjustable | CW / CCW |
| Connection Type | Cable, 8-wire, universal, 1.5 m |
| Power Consumption | ‰¤ 0.7 W |
| Mechanical Design | Solid shaft, Servo flange |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Enclosure Rating | IP65 (shaft side) / IP67 (housing side) |
| Operating Temperature Range | -40 °C to +100 °C |
