Motion Control Linear Encoders

Heidenhain LS 487C / AE LS 487C Incremental Linear Encoder

Name: HEIDENHAIN LS 487C / AE LS 487C INCREMENTAL LINEAR ENCODER
SKU: 1034880
Availability: LimitedAvailability

heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)

heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-1

heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-2

heidenhain-LS-487C_AE-LS-487C-incremental-linear-encoder-(Used)-3

중고

재고 있음1 단위즉시 배송 가능

증분형 선형 인코더 HEIDENHAIN LS487C / AELS487C는 720 mm 측정 길이, 5 µm 정확도 및 IP65 보호 기능을 제공합니다. 산업 자동화 환경에서 정밀 선형 측정에 적합합니다.

제조업체

HEIDENHAIN

SKU

1034880

카테고리

Linear Encoders

상태

중고

~1Vss 5V AELS487C Device Encoder Feedback Heidenhain Incremental Industrial Interface IP65 Linear LS487C Measurement Position Precision Scale Sensor System

방대한 재고

글로벌 배송

전문 지원

품질 보장

HEIDENHAIN LS487C / AELS487C INCREMENTAL LINEAR ENCODER

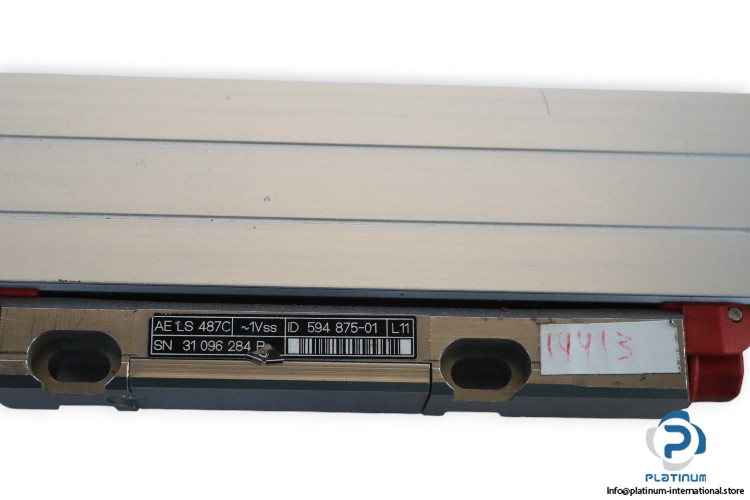

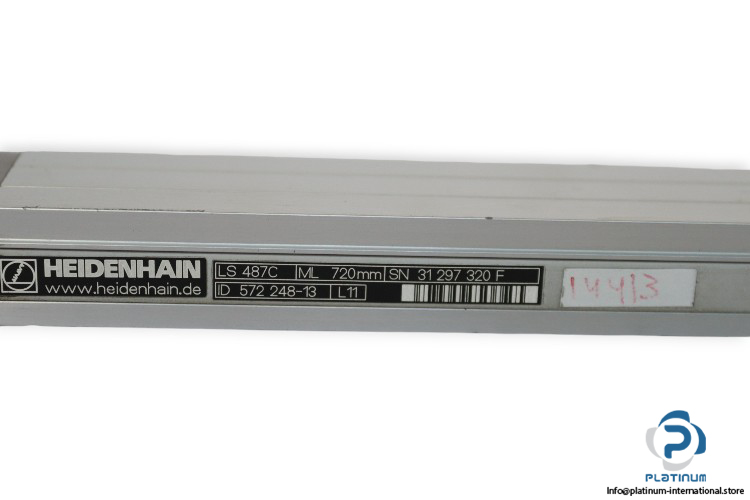

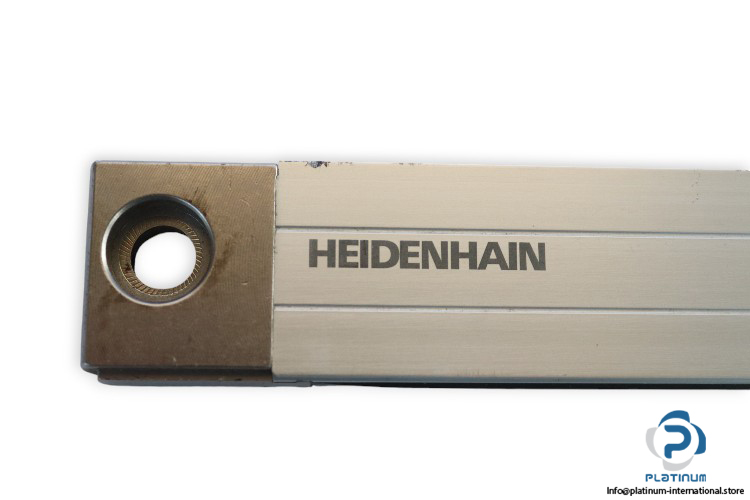

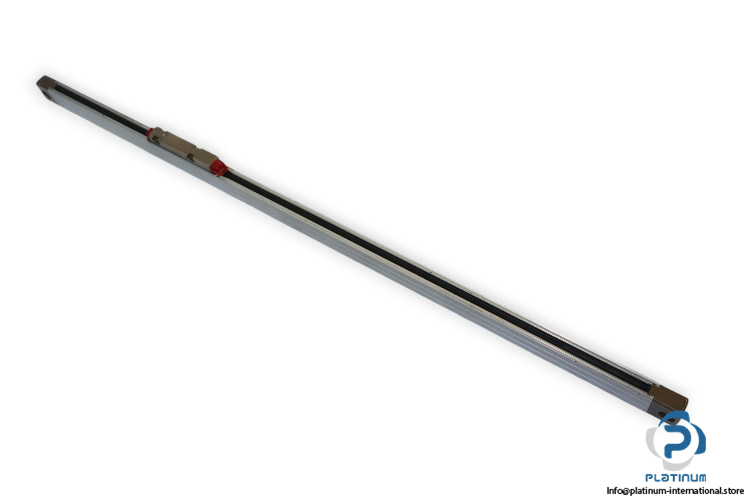

The HEIDENHAIN LS487C / AELS487C is a high-precision incremental linear encoder built for industrial-grade motion control and positioning systems. With a measuring length of 720 mm and an accuracy of 5 µm, it ensures reliable performance in automation and metrology applications.

Manufacturer: HEIDENHAIN

Type: Incremental Linear Encoder

Model: LS487C / AELS487C

Part No.: 57224813 / 59487501

Serial No.: 31 297 320 F

Measuring Length (ML)	720 mm
Accuracy	5 µm
Grating Period	20 µm
Supply Voltage	5 V
Interface	1Vss
Electrical Connection	Flange Socket, Male 14-Pin
Material	Metal
Protection Class	IP65
Operating Temperature	5 / 50 °C
Dimensions	32.2 x 720 x 18 mm
