Motion Control Rotary Encoders

Heidenhain ROD 420-250-01-03 Incremental Encoder

Name: HEIDENHAIN ROD 420-250-01-03 INCREMENTAL ENCODER
Brand: HEIDENHAIN
SKU: 966121
Price: 355.00 USD
Availability: LimitedAvailability





중고

요청 시 제공 가능

355,00$

INCREMENTAL ENCODER HEIDENHAIN ROD 420-250-01-03, 250 PPR 해상도, 10 mm 실축, 5 VDC 입력, TTL 출력, IP67/IP64 보호, 고정밀 자동화에 이상적입니다.

제조업체

HEIDENHAIN

SKU

966121

카테고리

Rotary Encoders

상태

중고

250 420-250-01-03 5VDC Automation Device Encoder Feedback Heidenhain Incremental Industrial IP67 PPR ROD RS422 shaft TTL

방대한 재고

글로벌 배송

전문 지원

품질 보장

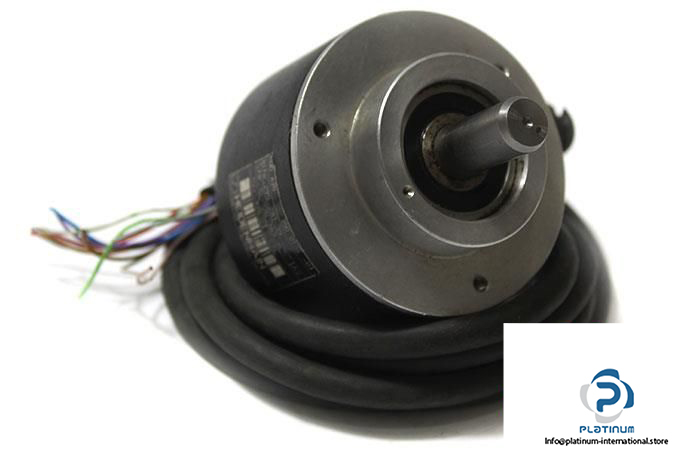

HEIDENHAIN ROD 420-250-01-03 INCREMENTAL ENCODER

The HEIDENHAIN ROD 420-250-01-03 is a high-precision incremental encoder engineered for demanding industrial automation environments. Built with a robust synchro flange and solid shaft design, it offers dependable performance in challenging conditions.

Manufacturer: HEIDENHAIN

Type: Incremental Encoder

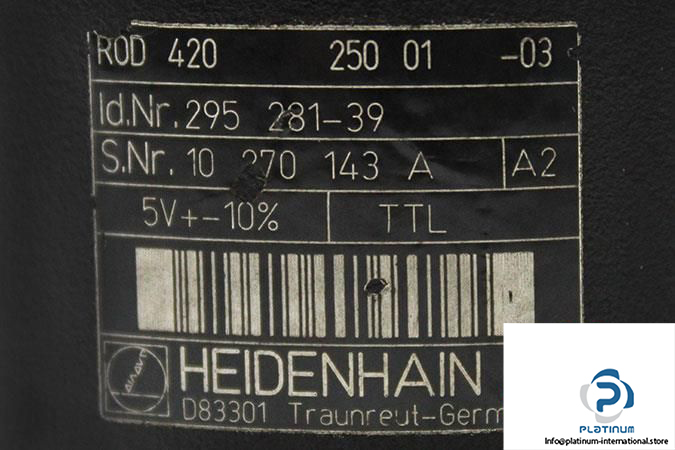

Model: ROD 420-250-01-03

ID No.: 295 281-39

Serial No.: 10 270 143 A

Flange Design	Synchro Flange
Shaft Design	Solid Shaft
Shaft Diameter	10 mm
Voltage Supply	5 VDC
Resolution	250 Pulses Per Revolution (PPR)
Max. Current Consumption	120 mA
Signal Output	TTL (RS 422)
Max. Pulse Frequency	300 kHz
Protection Class	IP67 at Housing, IP64 at Shaft Inlet
Max Temperature	100 °C
