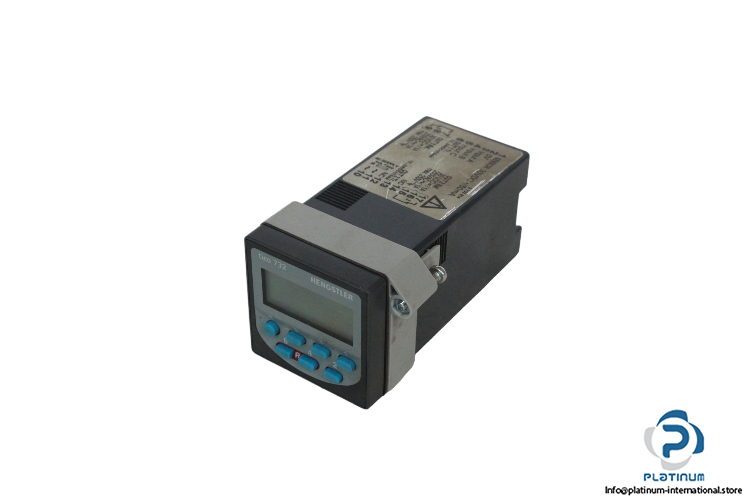

Hengstler Tico 732 Counter
중고
요청 시 제공 가능
95,00$
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: Hengstler
Type: Multifunctional counter
Model: TICO 732

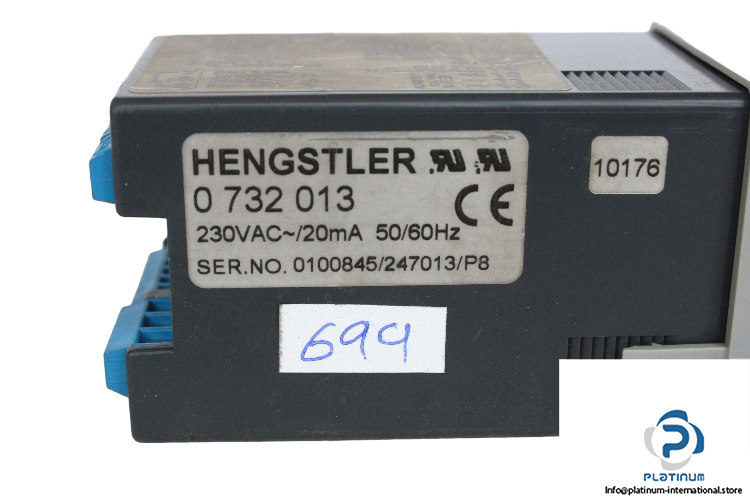

Part No.: 0732013
Supply Voltage: 230 V AC
Current Consumption: 20 mA
Frequency: 50 … 60 Hz

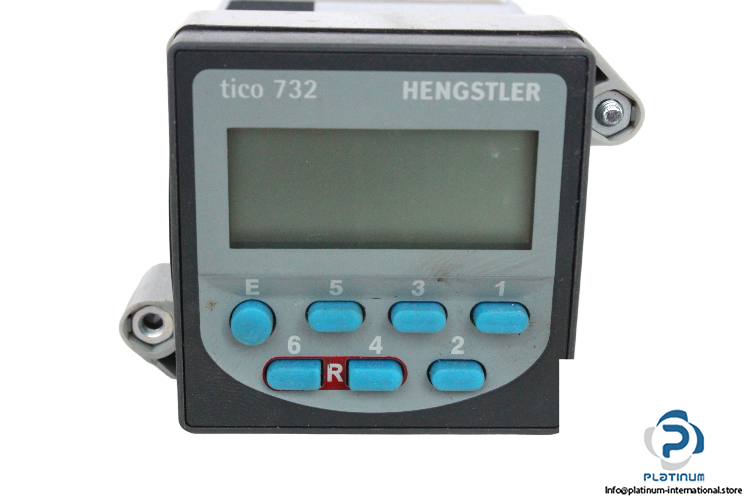

Display: LED or LCD, 6 digits, leading zero suppression, decimal point
Sensor Supply: 30 VDC, max 50 mA
Operating Temperature: 0 … +50 °C

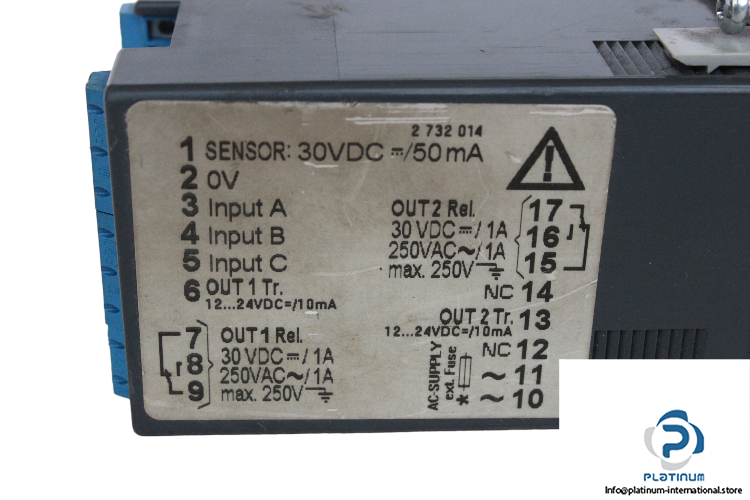

Electrical connection: screw terminals
Relay: 2 changeover contact single pole double through, 250 VAC / 30 VDC, 5A
Transistor: PNP output 12…24 VDC, 30 mA
Mounting: with clamping frame
Alarms: 2 alarms with programmable start-up-suppression
Degree of Protection: front side IP 65, terminals IP 20
Dimensions: 48 x 48 x 108 mm
