Hirschmann CM 02 E 14S-61P Industrial Connector
신제품
재고 있음9 단위즉시 배송 가능
HIRSCHMANN 산업용 커넥터 CM 02 E 14S-61P 플랜지가 있는 표면 장착 커넥터, 50 V AC/DC, 10 A, 6+PE 접점, IP67 보호 등급, -40에서 90 °C 온도 범위.
방대한 재고
글로벌 배송
전문 지원
품질 보장

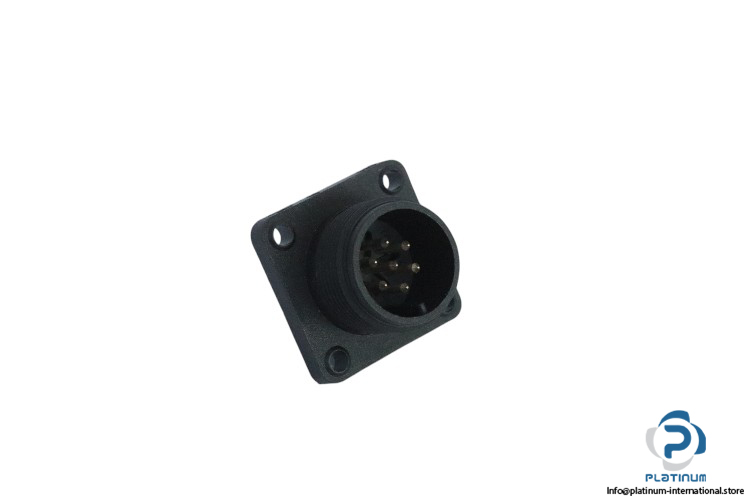

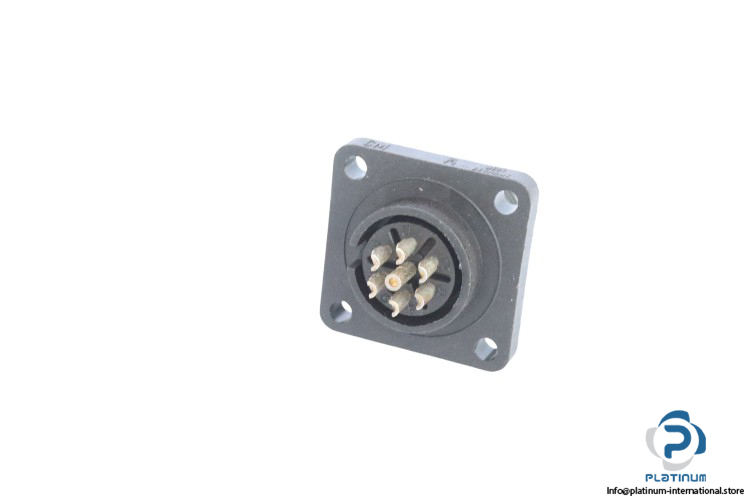

HIRSCHMANN Industrial Connector CM 02 E 14S-61P
The HIRSCHMANN CM 02 E 14S-61P is a robust surface-mounted industrial connector designed for demanding environments. Featuring a flange design with solder bucket termination, it provides reliable electrical connections with IP67 protection. With a rated voltage of 50 V AC/DC and a rated current of 10 A, this connector is suitable for a wide range of industrial applications.
- Manufacturer: HIRSCHMANN
- Type: Industrial Connector
- Model: CM 02 E 14S-61P
- Description: Surface mounted connector, with flange, with solder bucket
- Rated Voltage: 50 V AC/DC
- Rated Current: 10 A
- Contact Resistance: 5 mOhm
- Type of Termination: Solder
- Shell Size: 14S
- Mounting: Screws
- Number of Contacts: 6 + PE
- Protection Class: IP67
- Housing Color: Black
- Temperature Range: -40 to 90 °C
- Pin Dimensions: 1.6 mm
