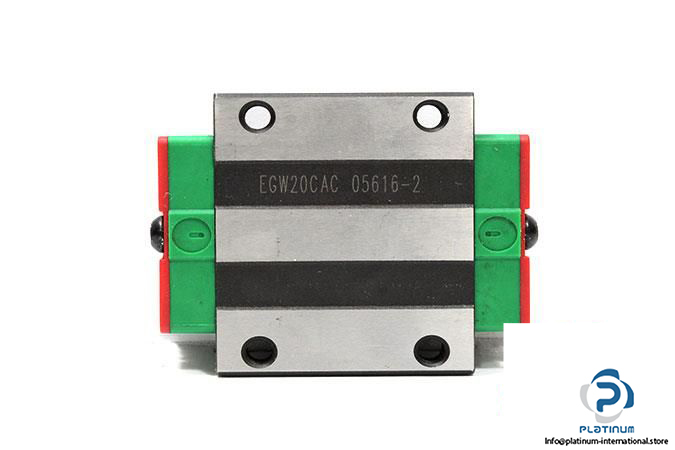

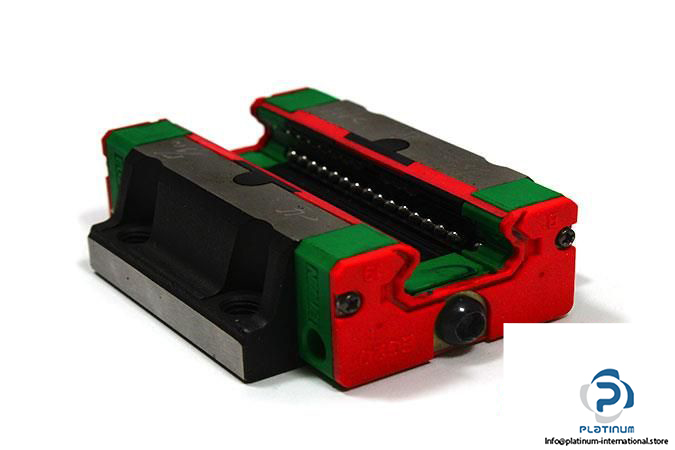

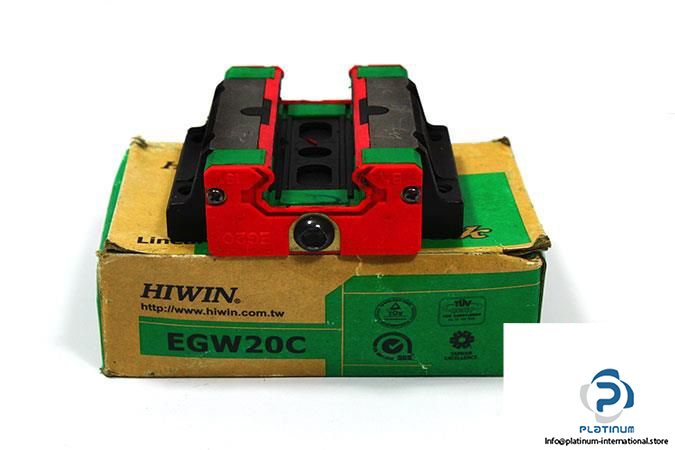

Hiwin EGW20CA Linear Guideway Block
HIWIN EGW20CAC LINEAR GUIDEWAY BLOCK
This heavy-duty linear guideway block from Hiwin is engineered for precision motion applications requiring high load capacity and compact size. Designed with a flange-type body and top-mounting system, it provides stable and accurate linear guidance for demanding automation environments.
Manufacturer: Hiwin
Type: Linear Guideway Block
MNR: EGW20CAC 05616-2
Size: 20 mm
| Block Height | 22 mm |
| System Height | 28 mm |
| Block Width (W) | 59 mm |
| Block Length (L) | 69.1 mm |
| Distances Between Holes | 49 mm, 32 mm |
| Thread Size | M5 × 16 |
| Rail Width | 20 mm |
| Rail Height | 15.5 mm |
| Block Type | Flange |
| Load Type | Heavy Load |
| Precision Code | C |
| Block Mounting Type | From Top |
| Basic Dynamic Load Rating | 10.31 kN |
| Basic Static Load Rating | 21.13 kN |
