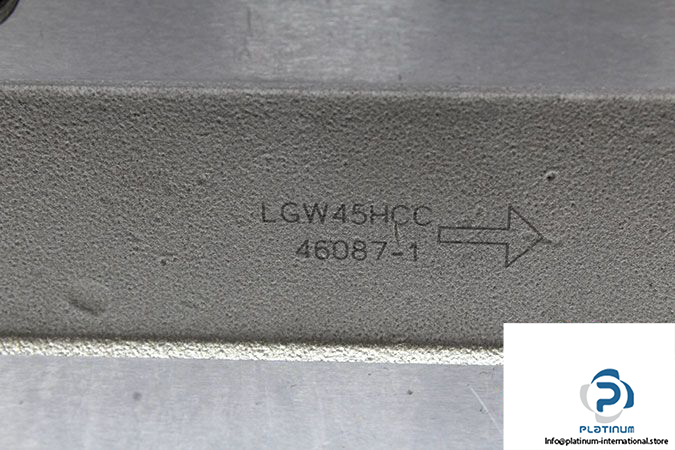

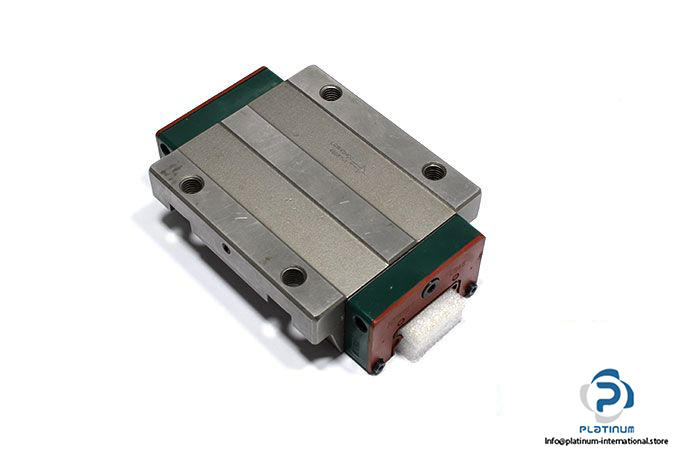

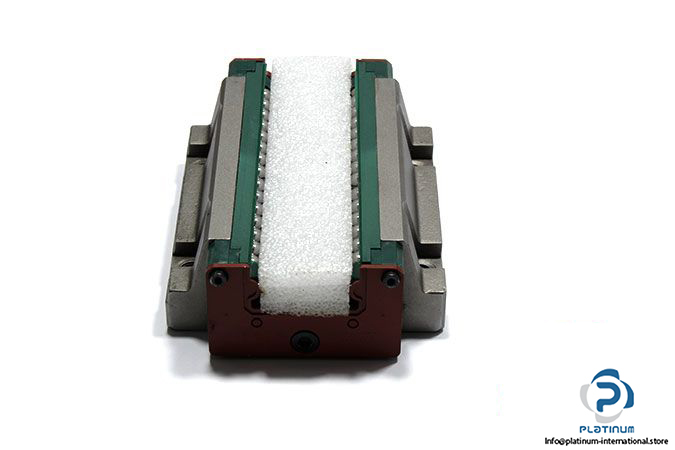

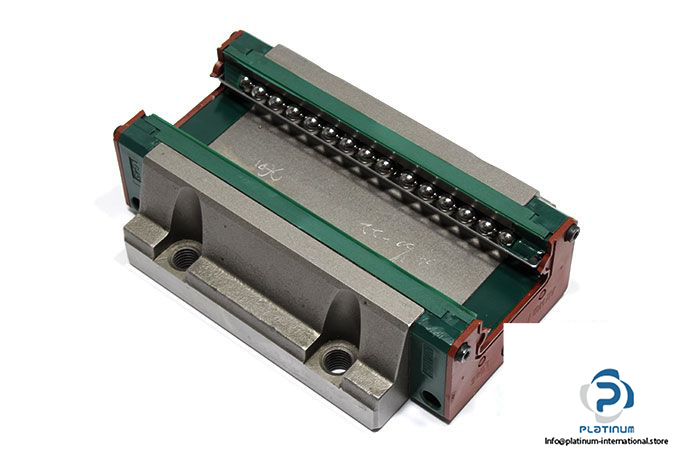

Hiwin LGW45HCC Linear Guideway Block
HIWIN LGW45HCC LINEAR GUIDEWAY BLOCK
The HIWIN LGW45HCC is a high-precision linear guideway block engineered for applications requiring high rigidity and heavy load-bearing capabilities. Belonging to the LG Series, this block features a wide flange design and supports top or bottom mounting, making it ideal for super heavy-duty linear motion systems.
Manufacturer: HIWIN
Type: Linear Guideway Block
Model: LGW45HCC
Size: 45 mm
| Block Height (H) | 50 mm |
| Block Width (W) | 120 mm |
| Block Length (L) | 170 mm |
| Height System | 60 mm |
| Distance Between Holes | 100 mm, 80 mm |
| Series | LG Series |
| Block Type | W (Flange Type) |
| Load Type | H (Super Heavy Load) |
| Block Mounting Type | C (Top or Bottom) |
| Basic Static Load | 13600 kgf |
| Basic Dynamic Load | 8430 kgf |
