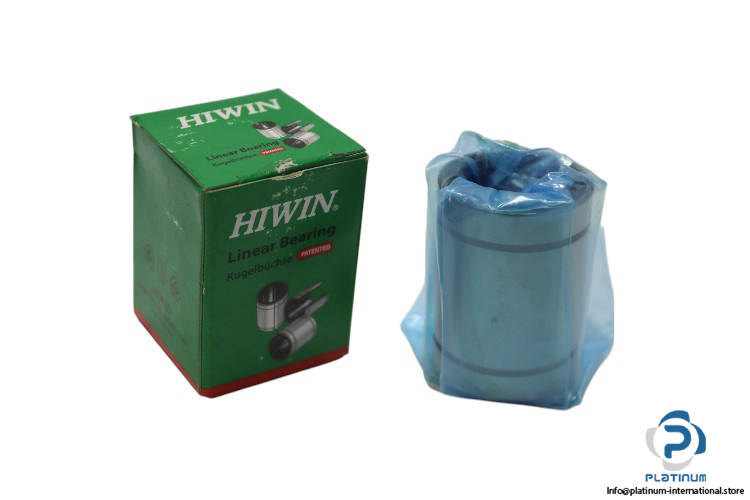

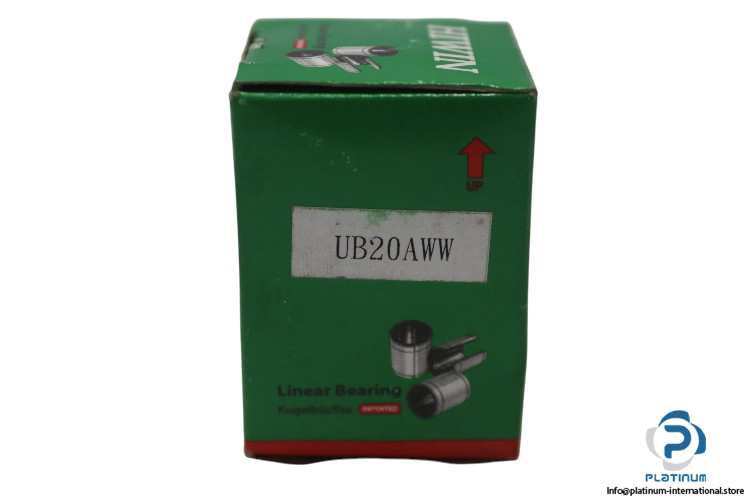

Hiwin UB-20AWW Closed Linear Ball Bushing

재고 있음13 단위즉시 배송 가능

23,33$

폐쇄형 리니어 볼 부싱 Hiwin UB-20AWW 폐쇄형 리니어 볼 부싱으로 내경이 20mm, 외경이 32mm입니다. 원활한 동작을 위해 설계되었으며 동적 하중 등급은 920 N, 정적 하중 등급은 1480 N입니다.

제조업체
HIWIN
SKU
1076529
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

Hiwin UB-20AWW Closed Linear Ball Bushing

The Hiwin UB-20AWW Closed Linear Ball Bushing is designed for smooth and efficient linear motion in industrial applications. With its robust dynamic and static load ratings, this ball bushing offers excellent performance and reliability.

Manufacturer: Hiwin

Type: Closed Linear Ball Bushing

Model: UB-20AWW

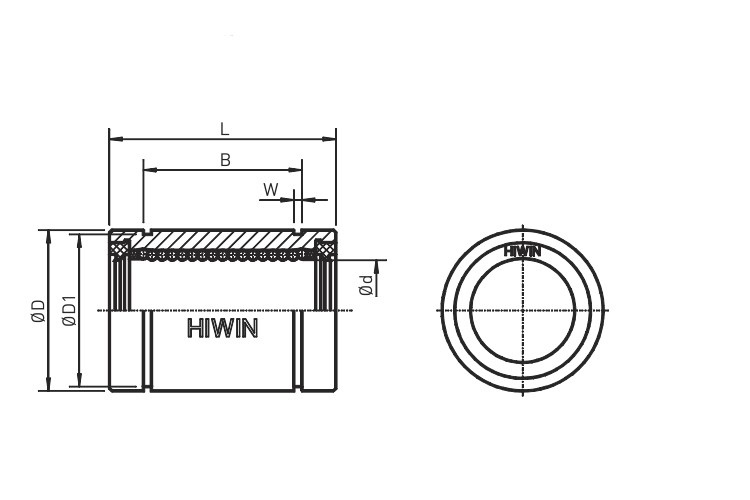

Inner Diameter (d)20 mm
Outer Diameter (D)32 mm
Length (L)45 mm
B31.5 mm
Design TypeClosed
Rows of Balls5
Dynamic Load Rating920 N
Static Load Rating1480 N
SealsWW, Double side wipers
