Motion Control Rotary Encoders

Hohner H11B40/1000 Incremental Encoder

Name: HOHNER H11B40/1000 INCREMENTAL ENCODER
SKU: 1002916
Price: 130.00 USD
Availability: InStock

hohner-h11b40_1000-incremental-encoder-1

hohner-h11b40_1000-incremental-encoder-2

hohner-h11b40_1000-incremental-encoder-3

중고

재고 있음1 단위즉시 배송 가능

130,00$

증분 인코더 Hohner H11B40/1000은 스테인리스 강 샤프트, 1000 PPR 해상도 및 넓은 전압 범위(5~28 V DC)를 갖춘 내구성이 뛰어난 증분 인코더입니다. 산업 환경에서 정확성과 성능을 위해 제작되었습니다.

제조업체

HOHNER

SKU

1002916

카테고리

Rotary Encoders

상태

중고

1000 Encoder H11B40/1000 High Hohner Incremental Industrial IP67 Motion PPR Precision Sensor shaft Solid stainless Steel

방대한 재고

글로벌 배송

전문 지원

품질 보장

HOHNER H11B40/1000 INCREMENTAL ENCODER

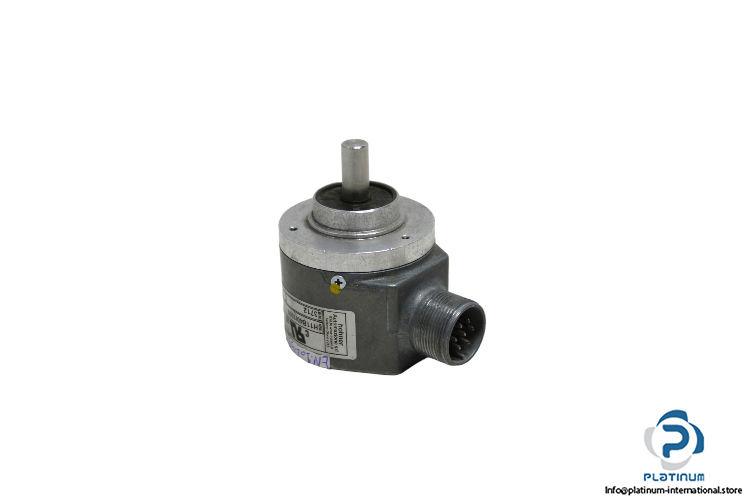

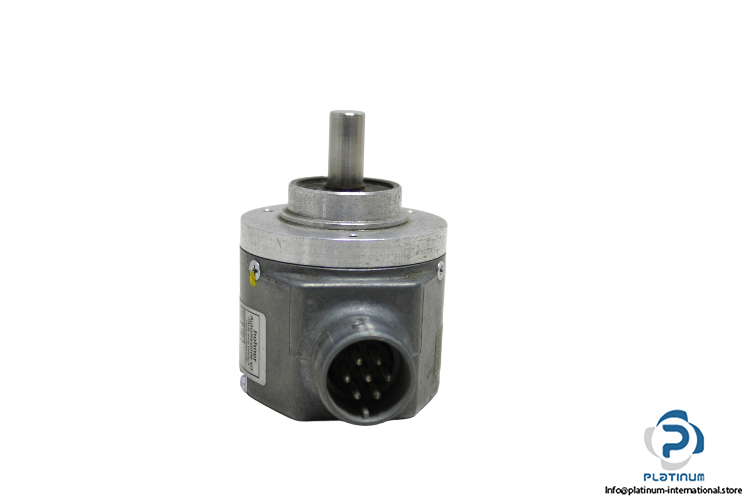

The Hohner H11B40/1000 is a high-resolution incremental encoder engineered for reliable motion feedback in demanding industrial environments. With a solid stainless steel shaft and a robust aluminum cover, it offers exceptional durability and precision.

Manufacturer: Hohner

Type: Incremental Encoder

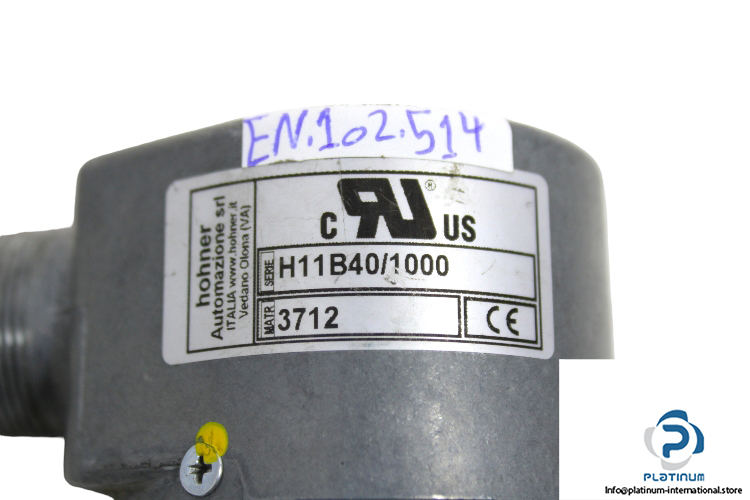

Model: H11B40/1000

Ref No.: 3712

Shaft Type	Solid Shaft
Pulse	1000 PPR
Shaft Diameter	10 mm
Power Supply	5 / 28 V DC
Current Consumption	40 / 80 mA

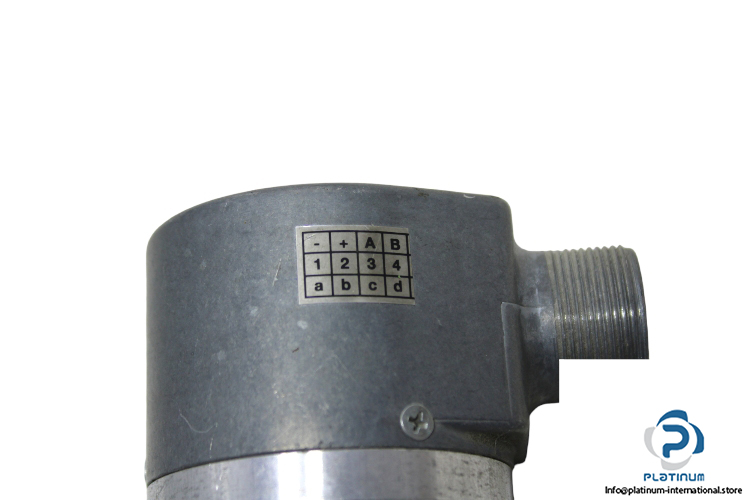

Connections	9415 Radial
Flange	Ã˜58 mm Round Flange
Cover	Aluminum
Shaft	Stainless Steel
Torque	5 Ncm
Inertia	100 gcm²
Speed	IP65-IP66 max 6000 RPM, IP67/68/69K max 3000 RPM
Operating Temperature	-20 / +70°C
