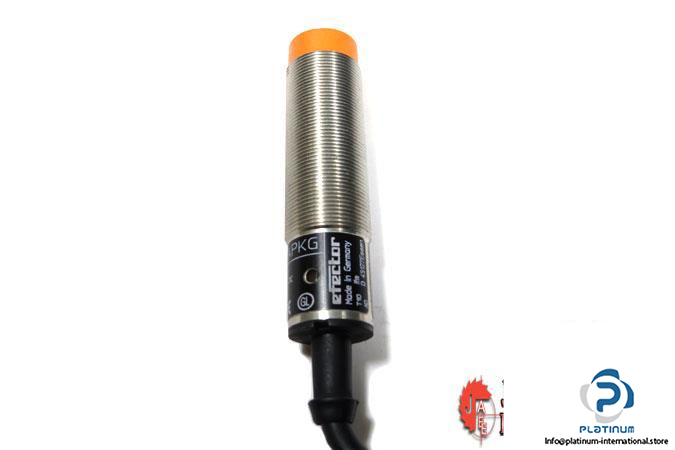

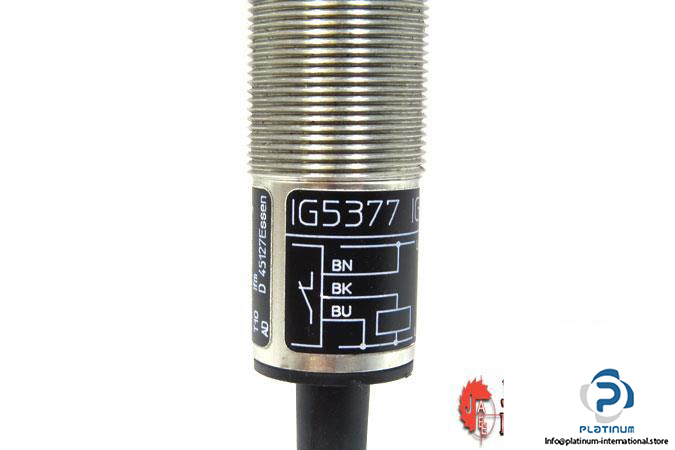

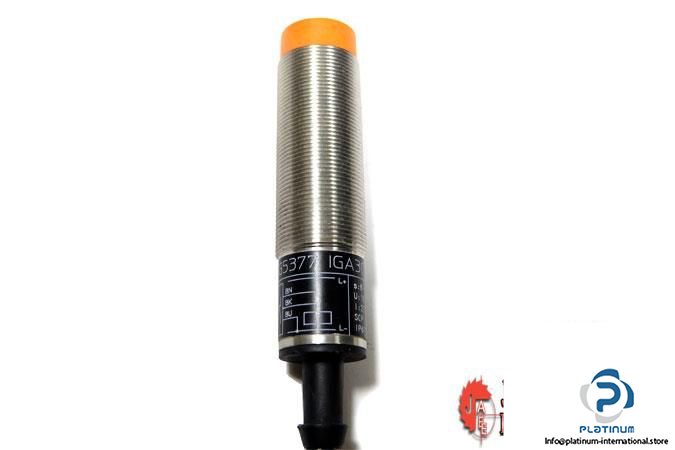

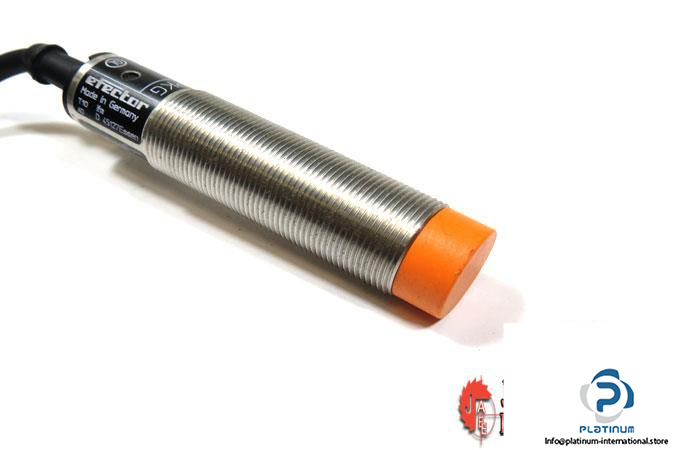

IFM IG5377 Inductive Sensor
신제품
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IG5377
MRN: IGA3008-APKG
Sensing Range: 8 mm
Real Sensing Range: 8 ± 10 % mm
Operating Distance: 0 … 6.5 mm
Operating Voltage: 10 … 36 V DC
Voltage Drop: 2.5 V DC
Switching output current: 250 mA DC
Current consumption: 15 mA
Switching frequency: 300 Hz DC
Electrical Design: PNP
Output: Normally closed

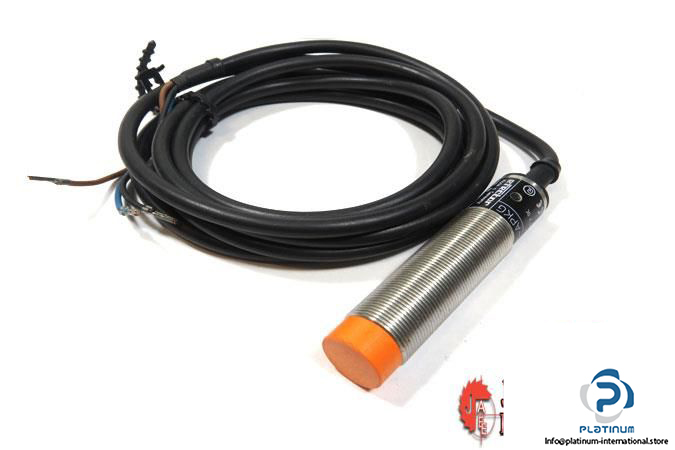

Connector type, length: PVC cable, 2m
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -20 … 80 °C
Diameter, Housing length: 18, 80 mm
Material: brass white bronze coated; PC
Mounting: Non-flush mountable
Weight: 155.8 g
Condition: New
