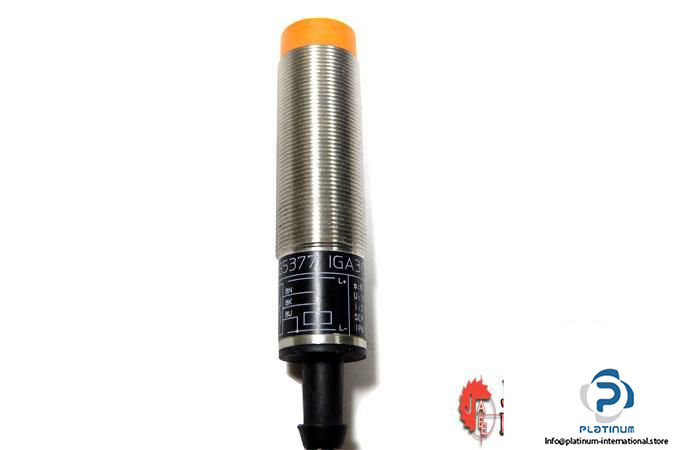

IFM IG5377 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5377

MRN: IGA3008-APKG

Sensing Range:  8 mm

Real Sensing Range: 8 ± 10 % mm

Operating Distance: 0 … 6.5 mm

Operating Voltage: 10 … 36 V DC

Voltage Drop: 2.5 V DC

Switching output current: 250 mA DC

Current consumption: 15 mA

Switching frequency: 300 Hz DC

Electrical Design: PNP

Output: Normally closed

Connector type, length: PVC cable, 2m

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -20 … 80 °C

Diameter, Housing length: 18, 80 mm

Material: brass white bronze coated; PC

Mounting: Non-flush mountable

Weight: 155.8 g

Condition: New
