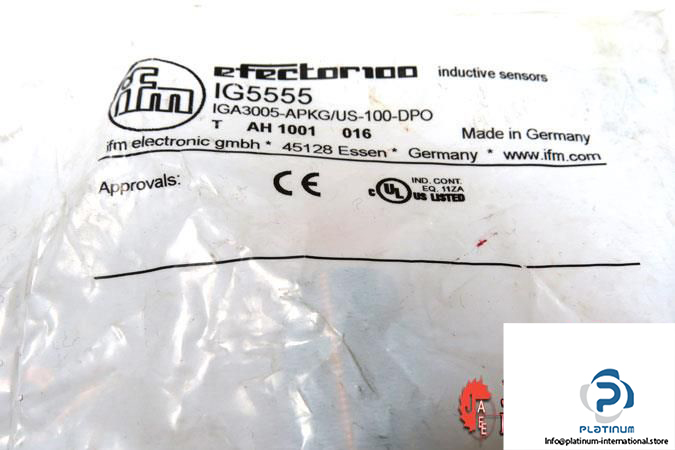

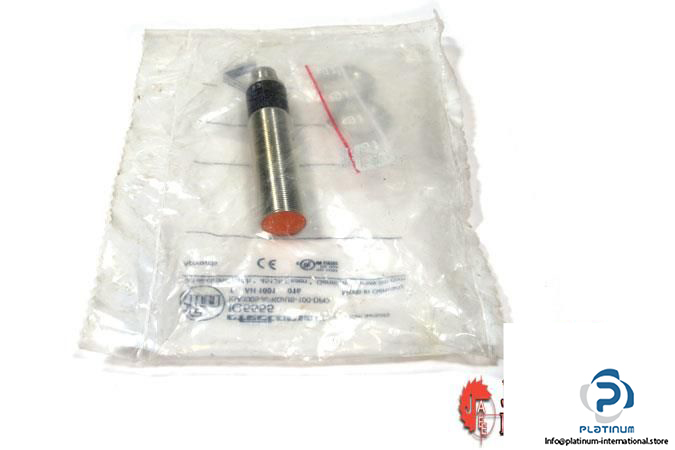

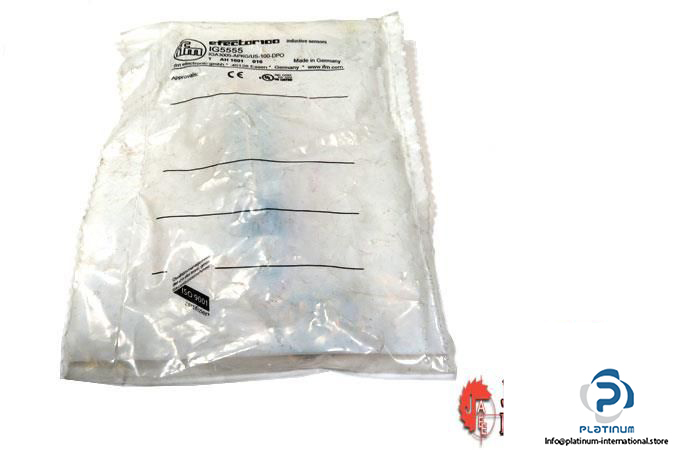

IFM IG5555 Inductive Sensor
신제품
Manufacturer: IFM
Type: INDUCTIVE SENSOR
Part No.: IG5555
MRN: IGA3005-APKG/US-100-DPO
Sensing Range: 5 mm
Real Sensing Range: 5 ± 10 % mm
Operating Distance: 0 … 4.05 mm
Operating Voltage: 10 … 30 V DC
Voltage Drop: 2.5 V DC
Switching output current: 200 mA DC
Current consumption: 10 mA
Switching frequency: 500 Hz DC
Electrical Design: PNP
Output: Normally closed
Connector type, length: M12 Connector
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature: -25 … 80°C
Diameter, Housing length: 18, 80 mm
Material: Brass white bronze coated; Sensing face: PBT orange
Mounting: Flush mountable
Weight: 56.3 g
Supplied Accessories: 2 lock nuts
Condition: New
