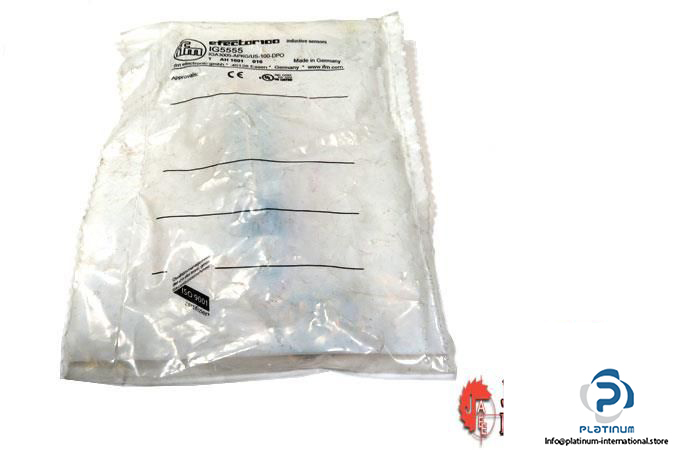

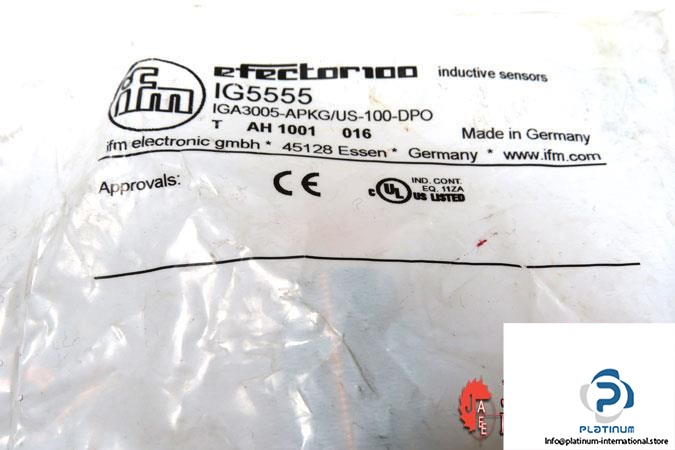

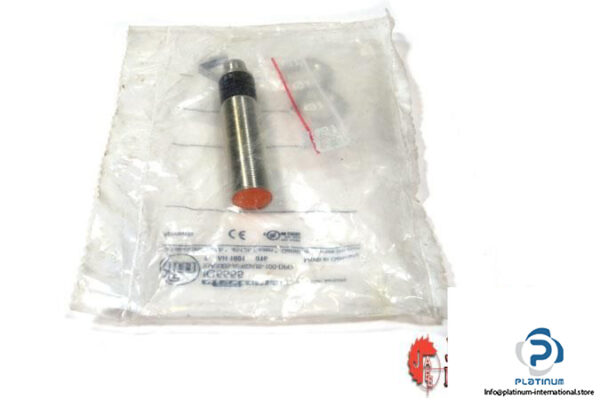

IFM IG5555 Inductive Sensor

Manufacturer: IFM

Type: INDUCTIVE SENSOR

Part No.: IG5555

MRN: IGA3005-APKG/US-100-DPO

Sensing Range: 5 mm

Real Sensing Range: 5 ± 10 % mm

Operating Distance: 0 … 4.05 mm

Operating Voltage: 10 … 30 V DC

Voltage Drop: 2.5 V DC

Switching output current: 200 mA DC

Current consumption: 10 mA

Switching frequency: 500 Hz DC

Electrical Design: PNP

Output: Normally closed

Connector type, length: M12 Connector

Protection Class: II

Enclosure rating: IP67

Housing: Threaded type

Ambient Operating temperature: -25 … 80°C

Diameter, Housing length: 18, 80 mm

Material: Brass white bronze coated; Sensing face: PBT orange

Mounting: Flush mountable

Weight: 56.3 g

Supplied Accessories: 2 lock nuts

Condition: New
