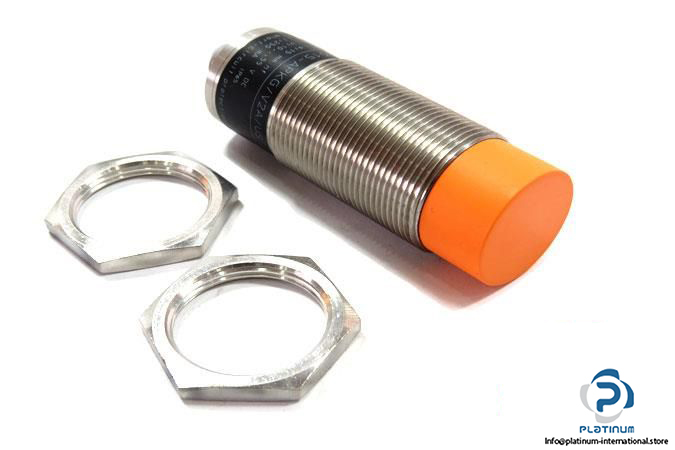

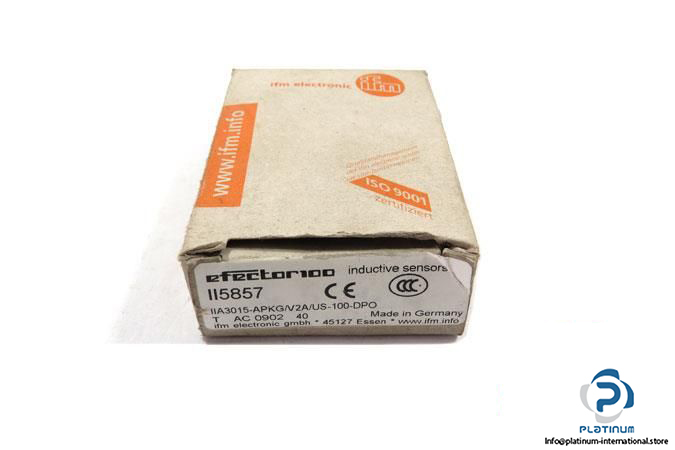

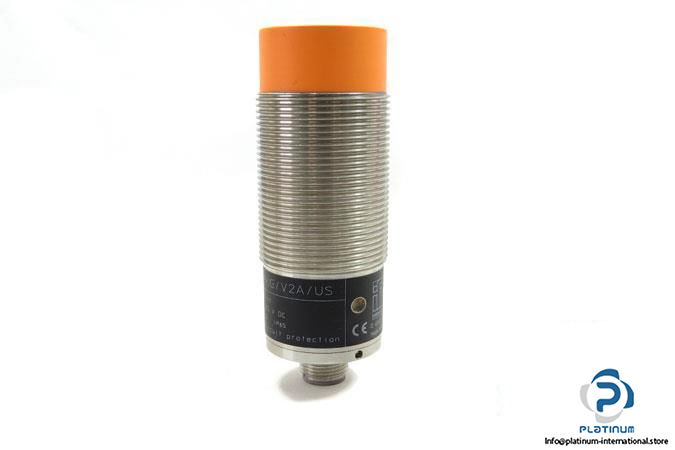

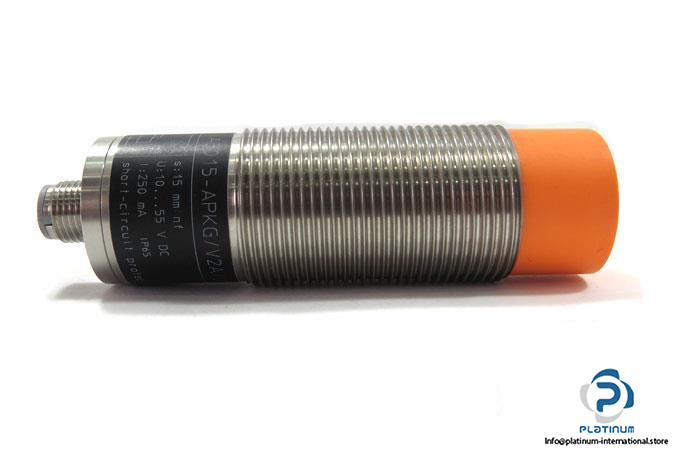

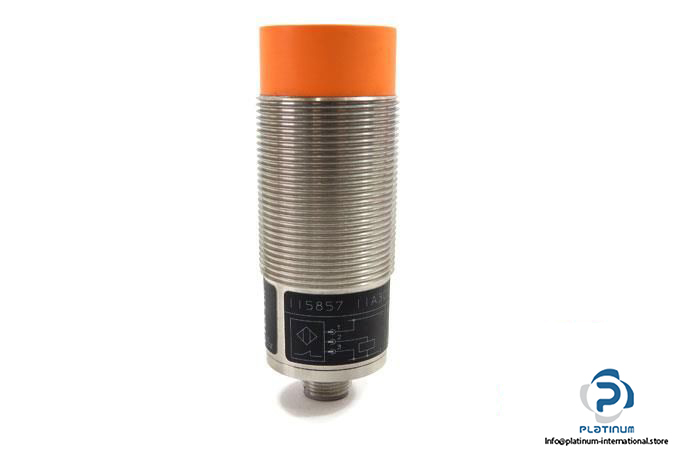

IFM II5857 Inductive Sensor
신제품
재고 있음8 단위즉시 배송 가능
55,55$
중고
재고 있음 38,50$
이 제품은 중고로도 구매하실 수 있습니다.
중고 버전 보기 →
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: ifm
Type: INDUCTIVE SENSOR
Part No.: II5857
MRN: IIA3015-APKG/V2A/US-100-DPO
Sensing Range: 15 mm
Real Sensing Range: 15 ± 10% mm
Operating Distance: 0 … 12.1 mm
Operating Voltage: 10 … 55 V DC
Voltage Drop max.: 2.5 V DC
Switching output current: 250 mA DC
Switching frequency: 250 Hz

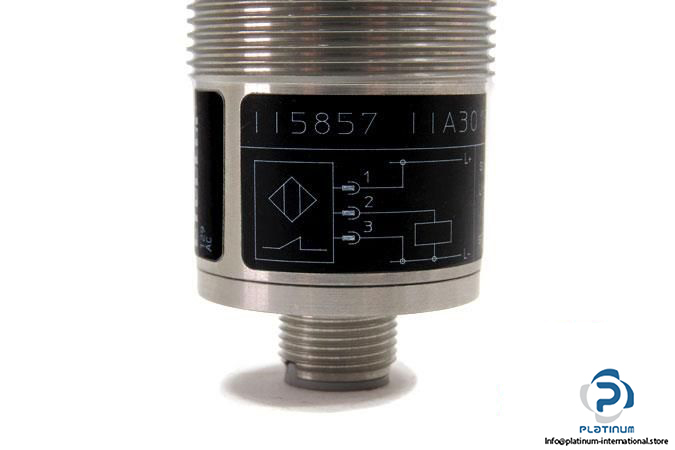

Electrical Design: PNP
Output Function: Normally closed

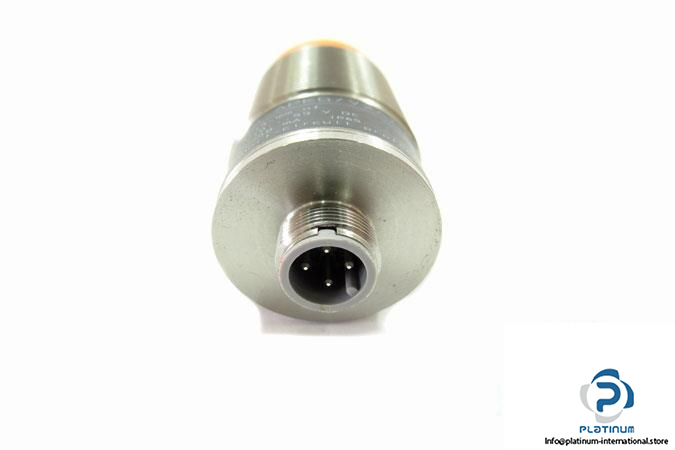

Connector type: M12 Connector, 4 pin
Protection Class: II
Enclosure rating: IP67
Housing: Threaded type
Ambient Operating temperature:-25 … 80°C
Diameter, Housing length: 30, 92 mm
Material: stainless steel; sensing face: PBT
Mounting: Non-flush mountable
Supplied accessories: 2 lock nuts
Weight: 150.5 g
Condition: New
