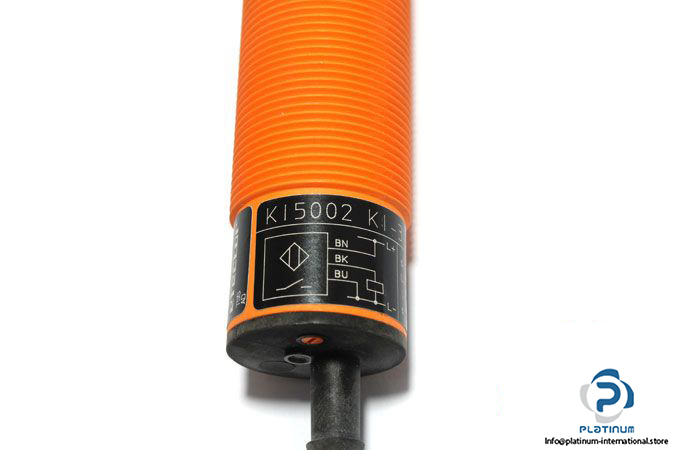

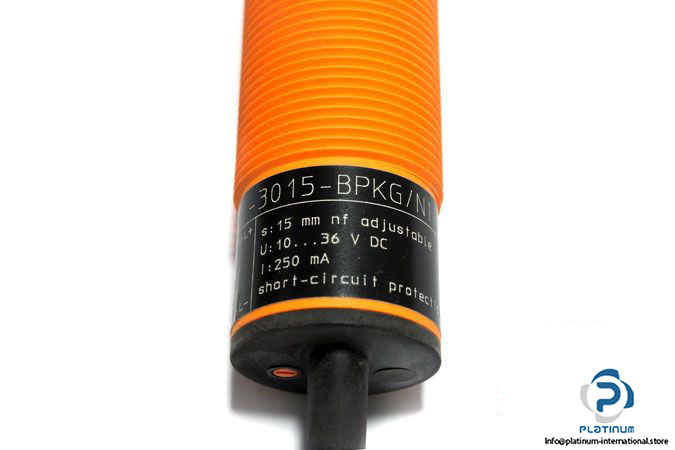

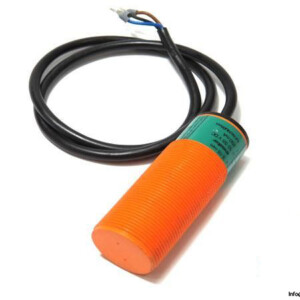

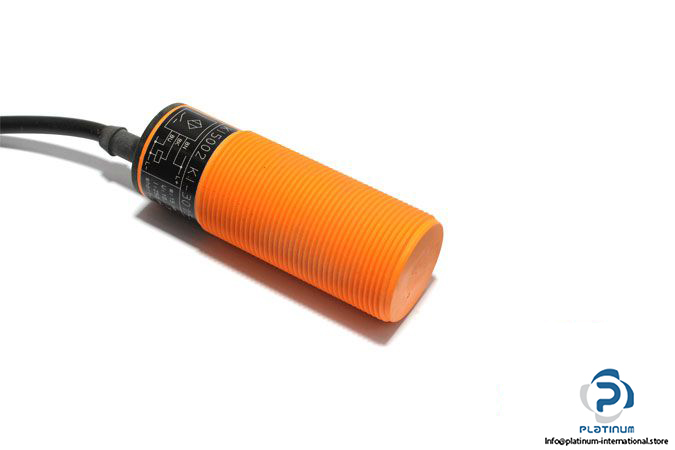

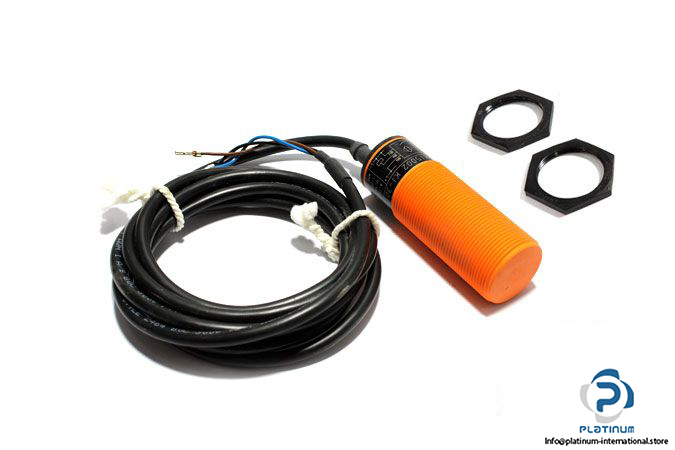

IFM KI5002 KI-3015-BPKG/NI Capacitive Sensor
신제품
재고 있음1 단위즉시 배송 가능
용량성 센서
방대한 재고
글로벌 배송
전문 지원
품질 보장
Manufacturer: ifm
Type: Capacitive Sensor
Part No.: KI5002
MRN: KI-3015-BPKG/NI
Sensing Range: 3 … 15 mm
Real Sensing Range: 15± 10% mm
Operating Voltage: 10 … 36 V DC
Voltage Drop max.: 2.5 V DC
Switching output current: 250 mA DC
Current consumption: 13 mA
Switching frequency: 40 Hz
Electrical Design: PNP
Output Function: Normally open
Connector type: PVC Cable
Protection Class: II
Enclosure rating: IP65
Housing: Threaded type
Ambient Operating temperature: -25 … 70°C
Diameter, Housing length: 30, 81 mm
Material: PBT
Mounting: Non-flush mountable
