INA KR30-PP-A Stud Type Track Roller
신제품
재고 있음9 단위즉시 배송 가능
스터드 타입 트랙 롤러 Schaeffler INA KR30-PP-A 스터드 타입 트랙 롤러는 30mm 외경, 높은 하중 등급 및 세 단계 실링으로 까다로운 산업용 애플리케이션에서 신뢰할 수 있는 성능을 제공합니다.
30bearingCapacityCollardiameterDynamicHighInaIndustrialKR30-PP-ALoadM12X1.5mmOutsideRatingRollerSchaefflerSealingStudThreadthree-stagetrackTypeWith
방대한 재고
글로벌 배송
전문 지원
품질 보장

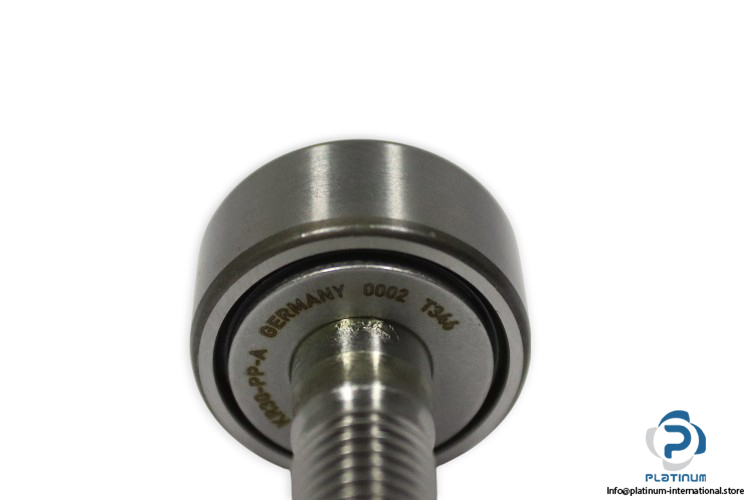

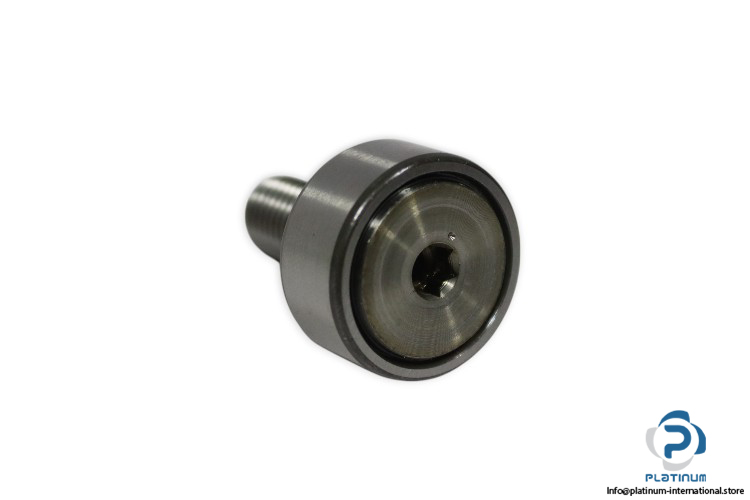

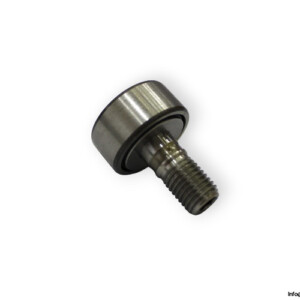

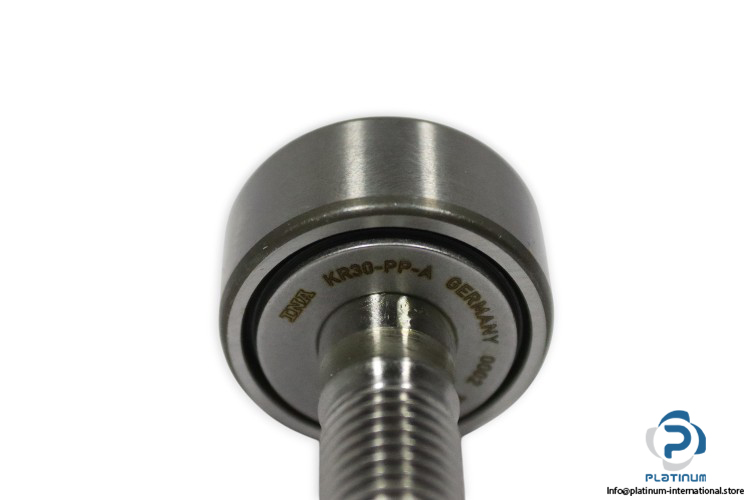

Schaeffler INA KR30-PP-A Stud Type Track Roller
The Schaeffler INA KR30-PP-A Stud Type Track Roller is a high-performance component designed for a variety of industrial applications. With precise design and durability, it offers exceptional load capacity and smooth operation in demanding conditions.
Manufacturer: Schaeffler INA
Type: STUD TYPE TRACK ROLLER
Model: KR30-PP-A
Basic Load Ratings, Radial:
Engineered for reliability and durability, the KR30-PP-A Stud Type Track Roller is ideal for applications requiring high load capacity and precision movement.
| Outside Diameter (D) | 30 mm |
| Fit Diameter of Roller Stud (d1) | 12 mm |
| Width of the Roller Stud (B) | 40 mm |
| Roller Width | 15.2 mm |
| Thread (G) | M12X1.5 |
| Thread Length | 13 mm |
| Dynamic (Crw) | 6800 N |
| Static (C0rw) | 8700 N |
| Fatigue Load Limit (Curw) | 1240 N |
| Speed on Permanent Grease Lubrication | 5500 1/min |
| Sealing | PP, Three-stage sealing by plastic axial plain washer on both sides |
