INA KR30-PP-A Stud Type Track Roller
New
In stock9 unitsReady to ship
Stud Type Track Roller
The Schaeffler INA KR30-PP-A Stud Type Track Roller features a 30 mm outside diameter, high load ratings, and three-stage sealing for reliable performance in demanding industrial applications.30bearingCapacityCollardiameterDynamicHighInaIndustrialKR30-PP-ALoadM12X1.5mmOutsideRatingRollerSchaefflerSealingStudThreadthree-stagetrackTypeWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

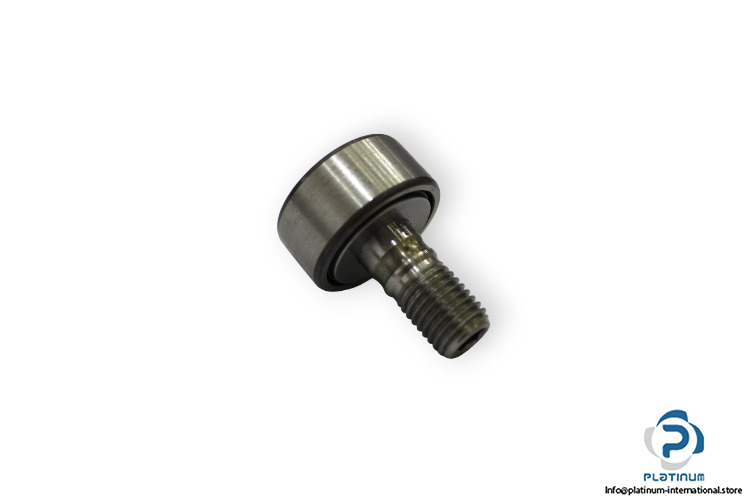

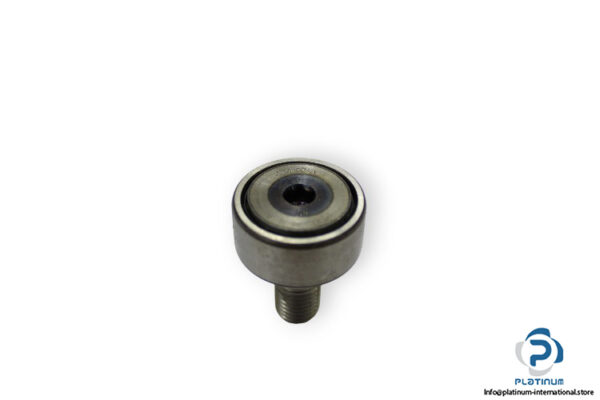

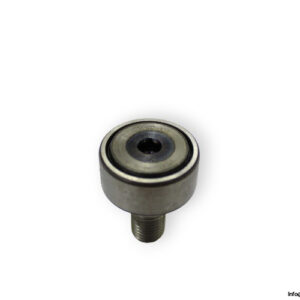

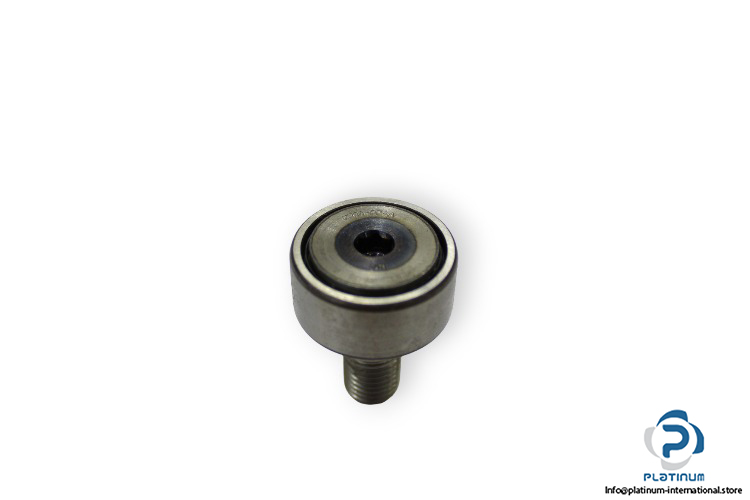

Schaeffler INA KR30-PP-A Stud Type Track Roller
The Schaeffler INA KR30-PP-A Stud Type Track Roller is a high-performance component designed for a variety of industrial applications. With precise design and durability, it offers exceptional load capacity and smooth operation in demanding conditions.
Manufacturer: Schaeffler INA
Type: STUD TYPE TRACK ROLLER
Model: KR30-PP-A
Basic Load Ratings, Radial:
Engineered for reliability and durability, the KR30-PP-A Stud Type Track Roller is ideal for applications requiring high load capacity and precision movement.

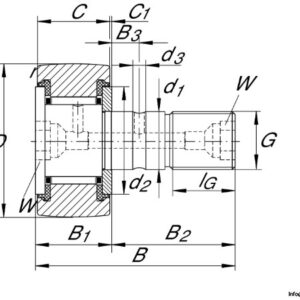

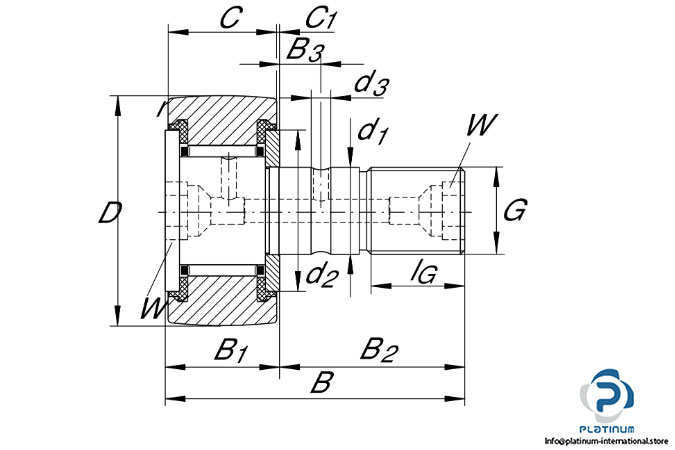

| Outside Diameter (D) | 30 mm |
| Fit Diameter of Roller Stud (d1) | 12 mm |
| Width of the Roller Stud (B) | 40 mm |
| Roller Width | 15.2 mm |
| Thread (G) | M12X1.5 |
| Thread Length | 13 mm |
| Dynamic (Crw) | 6800 N |
| Static (C0rw) | 8700 N |
| Fatigue Load Limit (Curw) | 1240 N |
| Speed on Permanent Grease Lubrication | 5500 1/min |
| Sealing | PP, Three-stage sealing by plastic axial plain washer on both sides |
