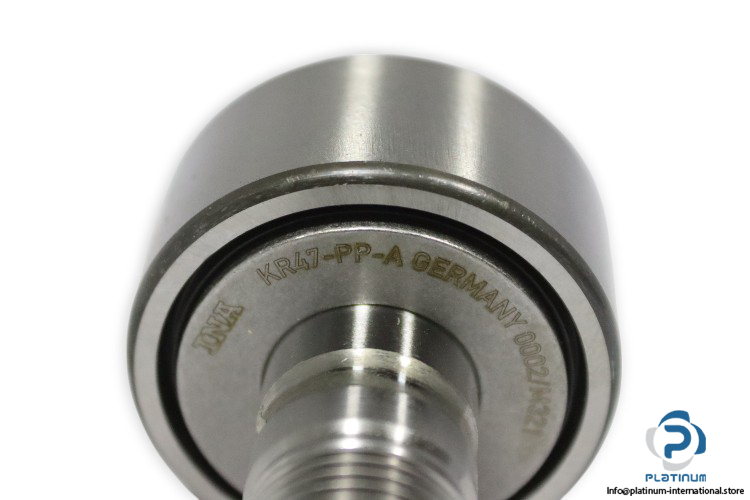

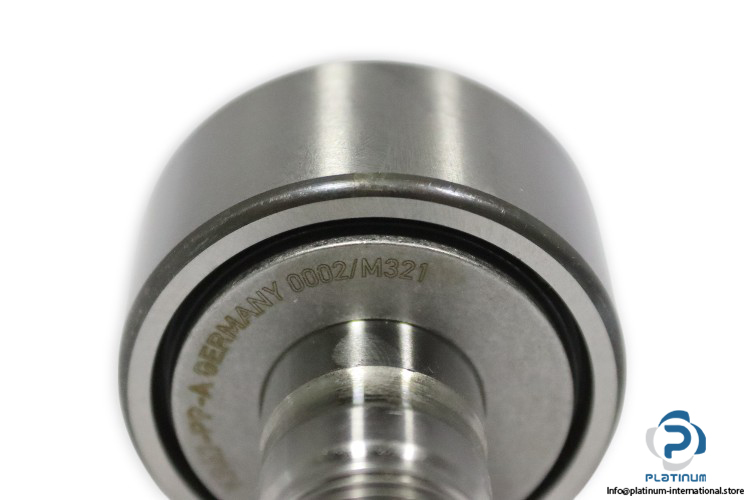

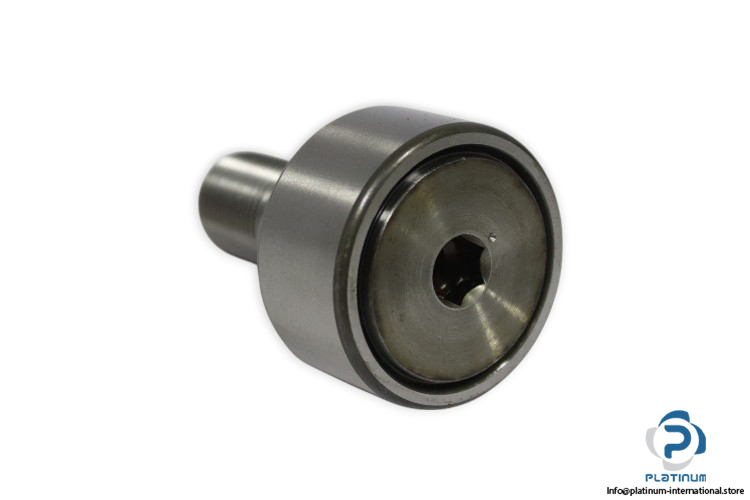

INA KR47-PP-A Stud Type Track Roller
신제품
재고 있음3 단위즉시 배송 가능
추력 와셔가 있는 고성능 롤러 스터드 중장비 산업용으로 설계된 이 롤러 스터드는 47mm 외경, M20X1.5 나사산 및 3단계 씰링으로 높은 하중 등급을 제공하여 신뢰할 수 있는 성능과 안정성을 보장합니다.
bearingCapacityDynamicGreasehigh-loadhigh-performanceIndustrialLoadload-bearinglubricationM20x1.5PermanentradialRatingsRollerSealingStudThreadthree-stageThrustUnitWasherWith
방대한 재고
글로벌 배송
전문 지원
품질 보장
High-Performance Roller Stud with Thrust Washer
The High-Performance Roller Stud with Thrust Washer is engineered for demanding applications, designed to handle radial loads with precision and durability. This roller stud unit features high dynamic and static load ratings, making it ideal for high-stress environments that require reliable performance.
Basic Load Ratings (Radial):
This high-performance roller stud is designed to offer long-lasting durability, stability, and excellent load-bearing capacity, making it suitable for applications requiring heavy-duty performance and high speeds.
| Outside Diameter (D) | 47 mm |
| Fit Diameter of Roller Stud (D1) | 20 mm |
| Width of the Roller Stud (B) | 66 mm |
| Maximum Width of Thrust Washer (B1) | 25.6 mm |
| Thread (G) | M20X1.5 |
| Thread Length | 21 mm |
| Dynamic (Cr W) | 15400 N |
| Static (C0r W) | 26000 N |
| Fatigue Load Limit (Cur W) | 3450 N |
| Speed on Permanent Grease Lubrication | 2400 1/min |
| Sealing | PP, Three-Stage Sealing by Plastic Axial Plain Washer on Both Sides |
