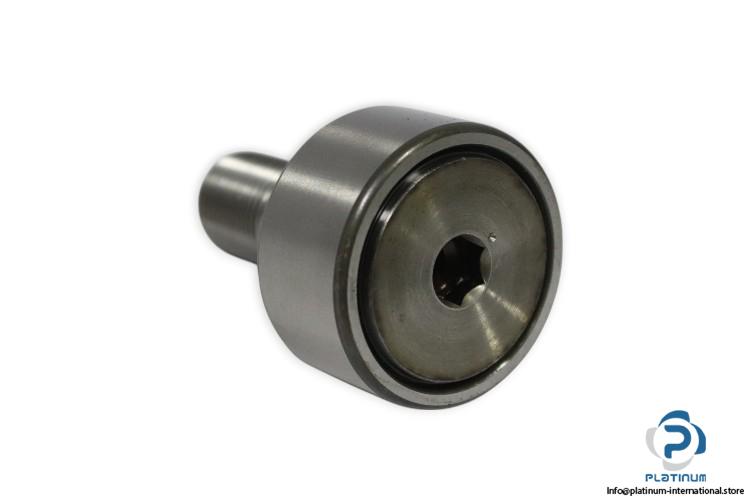

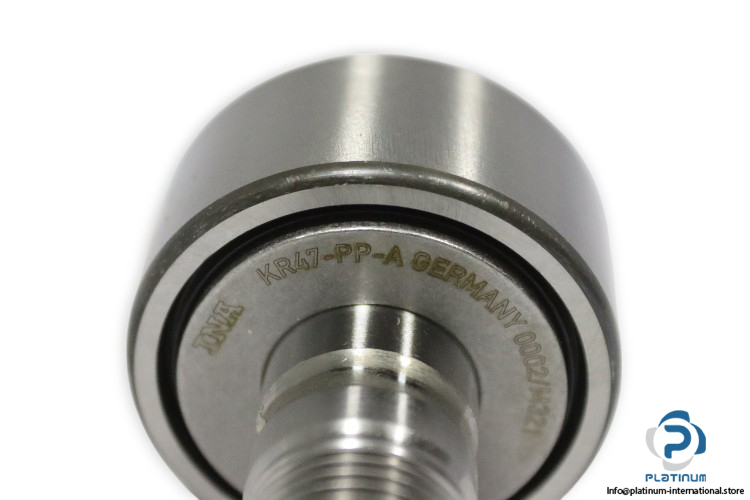

INA KR47-PP-A Stud Type Track Roller
Pino de Rolamento de Alto Desempenho com Arruela de Apoio Projetado para aplicações industriais pesadas, este pino de rolamento possui diâmetro externo de 47 mm, rosca M20X1.5 e altas classificações de carga com vedação de três estágios, garantindo desempenho e estabilidade confiáveis.
High-Performance Roller Stud with Thrust Washer
The High-Performance Roller Stud with Thrust Washer is engineered for demanding applications, designed to handle radial loads with precision and durability. This roller stud unit features high dynamic and static load ratings, making it ideal for high-stress environments that require reliable performance.
Basic Load Ratings (Radial):
This high-performance roller stud is designed to offer long-lasting durability, stability, and excellent load-bearing capacity, making it suitable for applications requiring heavy-duty performance and high speeds.
| Outside Diameter (D) | 47 mm |
| Fit Diameter of Roller Stud (D1) | 20 mm |
| Width of the Roller Stud (B) | 66 mm |
| Maximum Width of Thrust Washer (B1) | 25.6 mm |
| Thread (G) | M20X1.5 |
| Thread Length | 21 mm |
| Dynamic (Cr W) | 15400 N |
| Static (C0r W) | 26000 N |
| Fatigue Load Limit (Cur W) | 3450 N |
| Speed on Permanent Grease Lubrication | 2400 1/min |
| Sealing | PP, Three-Stage Sealing by Plastic Axial Plain Washer on Both Sides |
