IVO Baumer GI328.0604106 Incremental Encoder
중고
재고 있음1 단위즉시 배송 가능
166,66$
INCREMENTAL ENCODER IVO Baumer GI328.0604106는 5mm 솔리드 샤프트, IP65 등급, HTL 출력이 있는 200 PPR 증분 인코더입니다. 고속, 고정밀 산업 자동화 시스템에 적합합니다.
200BaumerEncoderFlangeGI328.0604106High-SpeedHTLIncrementalIndustrialIP65IVOOutputPPRshaftSolidSynchro
방대한 재고
글로벌 배송
전문 지원
품질 보장

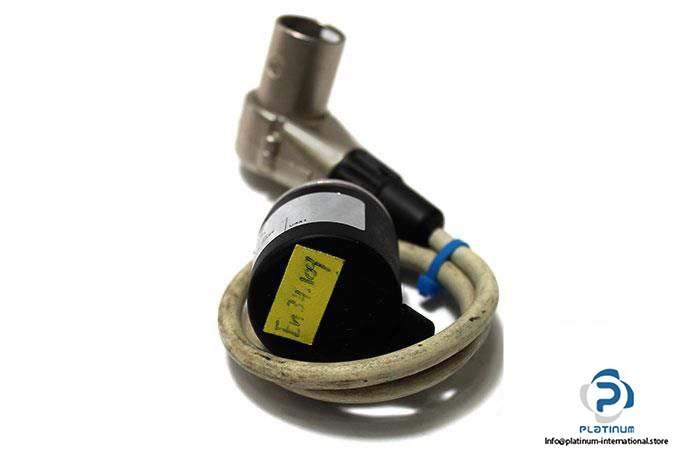

IVO Baumer GI328.0604106 Incremental Encoder
The IVO Baumer GI328.0604106 is a highly reliable incremental encoder engineered for precision in motion control systems. With a durable solid shaft, IP65-rated protection, and HTL output, it is ideal for automation and industrial environments requiring accurate feedback signals at high resolution.
Manufacturer: IVO Baumer
Type: Incremental Encoder
Model: GI328.0604106
| Flange Type | Synchro Flange |
| Shaft Design | Solid Shaft |
| Shaft Diameter | 5 mm |
| Resolution | 200 Pulse Per Revolution (PPR) |
| Voltage Supply | 10 / 30 VDC |
| Max. Output Current | 60 mA |
| Output Circuit | Push Pull (HTL) |
| Max Speed | 6,000 RPM |
| Max. Pulse Frequency | 100 kHz |
| Electrical Connection | Cable 1m, Axial |
| Protection Class | IP 65 |
| Operating Temperature | -20 / 85 °C |
