IVO GI355.060C315 Incremental Encoder
재고 있음1 단위즉시 배송 가능
450,00$
INCREMENTAL ENCODER IVO GI355060C315는 500펄스, IP54 보호 등급, 10mm 클램핑 플랜지 샤프트를 갖춘 컴팩트하고 내구성이 뛰어난 증분 인코더로, 최대 10,000 RPM에서 작동합니다.
500AluminumClampingEncoderFlangeGI355060C315High-SpeedHousingIMPIncrementalIndustrialIP54IVORotaryshaft
방대한 재고
글로벌 배송
전문 지원
품질 보장

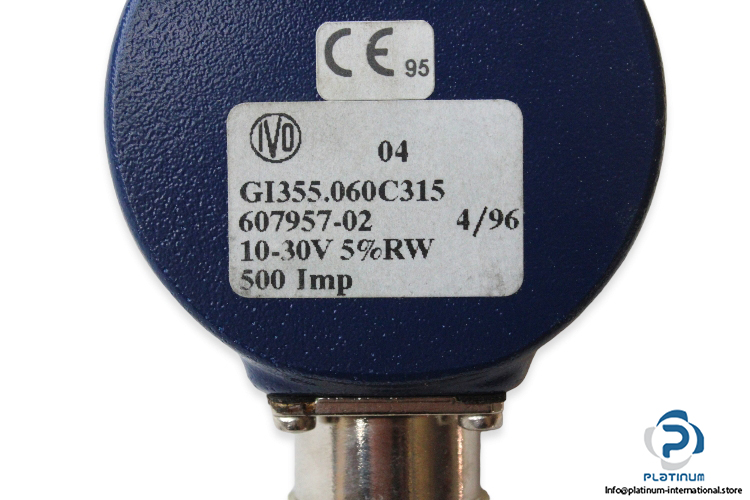

IVO GI355060C315 INCREMENTAL ENCODER
The IVO GI355060C315 is a high-precision incremental encoder engineered for industrial automation systems requiring reliable and accurate speed and position feedback. Its compact aluminum housing, robust shaft, and short-circuit-protected output make it ideal for demanding environments.
Manufacturer: IVO
Type: Incremental Encoder
Model: GI355060C315
Part No.: 607957-02
| Supply Voltage | 10 / 30 V DC |
| Current Consumption | Max. 60 mA at 24 V DC / Max. 30 mA at 5 V DC |
| Output Stages | Push-pull output, short-circuit protected |
| RPM Value | Max. 10,000 RPM |
| Connection | C-plug with 12 pins, radial |
| No. of Pulses | 500 Imp |
| Housing Material | Aluminum |
| Protection Degree | IP 54 |
| Shaft Type / Diameter | Clamping flange / 10 mm |
| Ambient Temperature | -20 / +70 °C |
| Max. Operating Frequency | 150 kHz |
