IVO GI355.060C315 Incremental Encoder
Yeni
Stokta1 birimSevkiyata hazır
450,00$
INCREMENTAL ENCODER IVO GI355060C315, 500 impulslu, IP54 korumasına sahip, 10 mm sıkma flanş miline sahip kompakt ve dayanıklı bir artımlı enkoder olup 10.000 RPM'ye kadar çalışır.
500AluminumClampingEncoderFlangeGI355060C315High-SpeedHousingIMPIncrementalIndustrialIP54IVORotaryshaft
Geniş Stok
Küresel Nakliye
Uzman Destek
Kalite Garantili

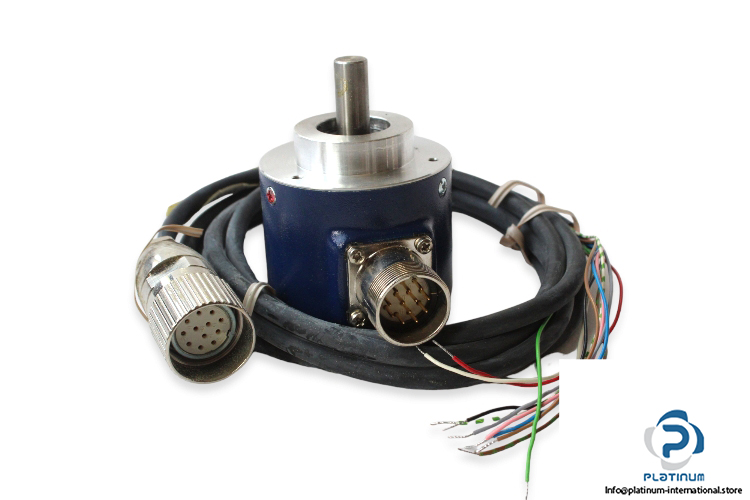

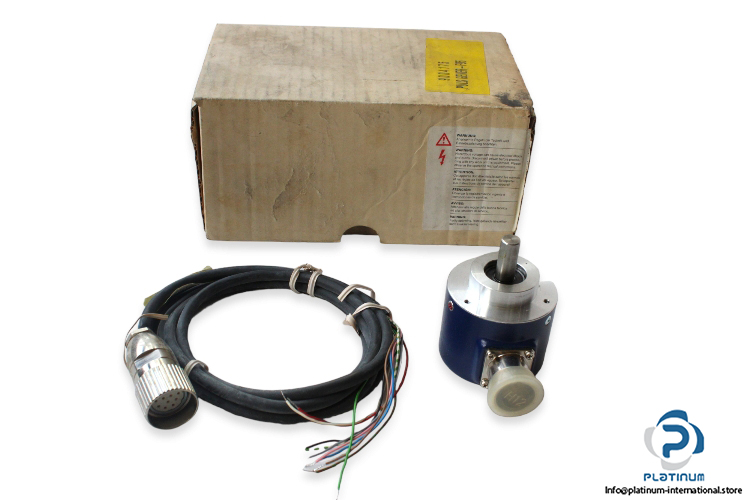

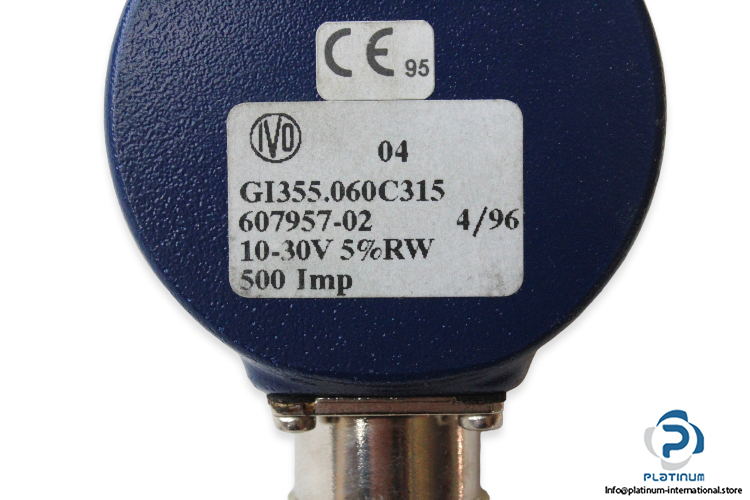

IVO GI355060C315 INCREMENTAL ENCODER
The IVO GI355060C315 is a high-precision incremental encoder engineered for industrial automation systems requiring reliable and accurate speed and position feedback. Its compact aluminum housing, robust shaft, and short-circuit-protected output make it ideal for demanding environments.
Manufacturer: IVO
Type: Incremental Encoder
Model: GI355060C315
Part No.: 607957-02
| Supply Voltage | 10 / 30 V DC |
| Current Consumption | Max. 60 mA at 24 V DC / Max. 30 mA at 5 V DC |
| Output Stages | Push-pull output, short-circuit protected |
| RPM Value | Max. 10,000 RPM |
| Connection | C-plug with 12 pins, radial |
| No. of Pulses | 500 Imp |
| Housing Material | Aluminum |
| Protection Degree | IP 54 |
| Shaft Type / Diameter | Clamping flange / 10 mm |
| Ambient Temperature | -20 / +70 °C |
| Max. Operating Frequency | 150 kHz |
