Motion Control Rotary Encoders

IVO GI355.070C313 Incremental Encoder

Name: IVO GI355.070C313 INCREMENTAL ENCODER
SKU: 1001156
Price: 450.00 USD
Availability: InStock

Yeni

Stokta1 birimSevkiyata hazır

450,00$

INCREMENTAL ENCODER

IVO GI355.070C313 incremental encoder offers 360 PPR resolution with RS422 and push-pull output circuits, IP54 protection, and high-speed operation up to 10000 rpm, ideal for industrial motion control.

Üretici

IVO

SKU

1001156

Kategori

Rotary Encoders

Koşul

Yeni

360 Clamping Control Encoder Flange GI355.070C313 High-Speed Incremental Industrial IP54 IVO Motion PPR RS422 Sensor

Paylaş

Geniş Stok

Küresel Nakliye

Uzman Destek

Kalite Garantili

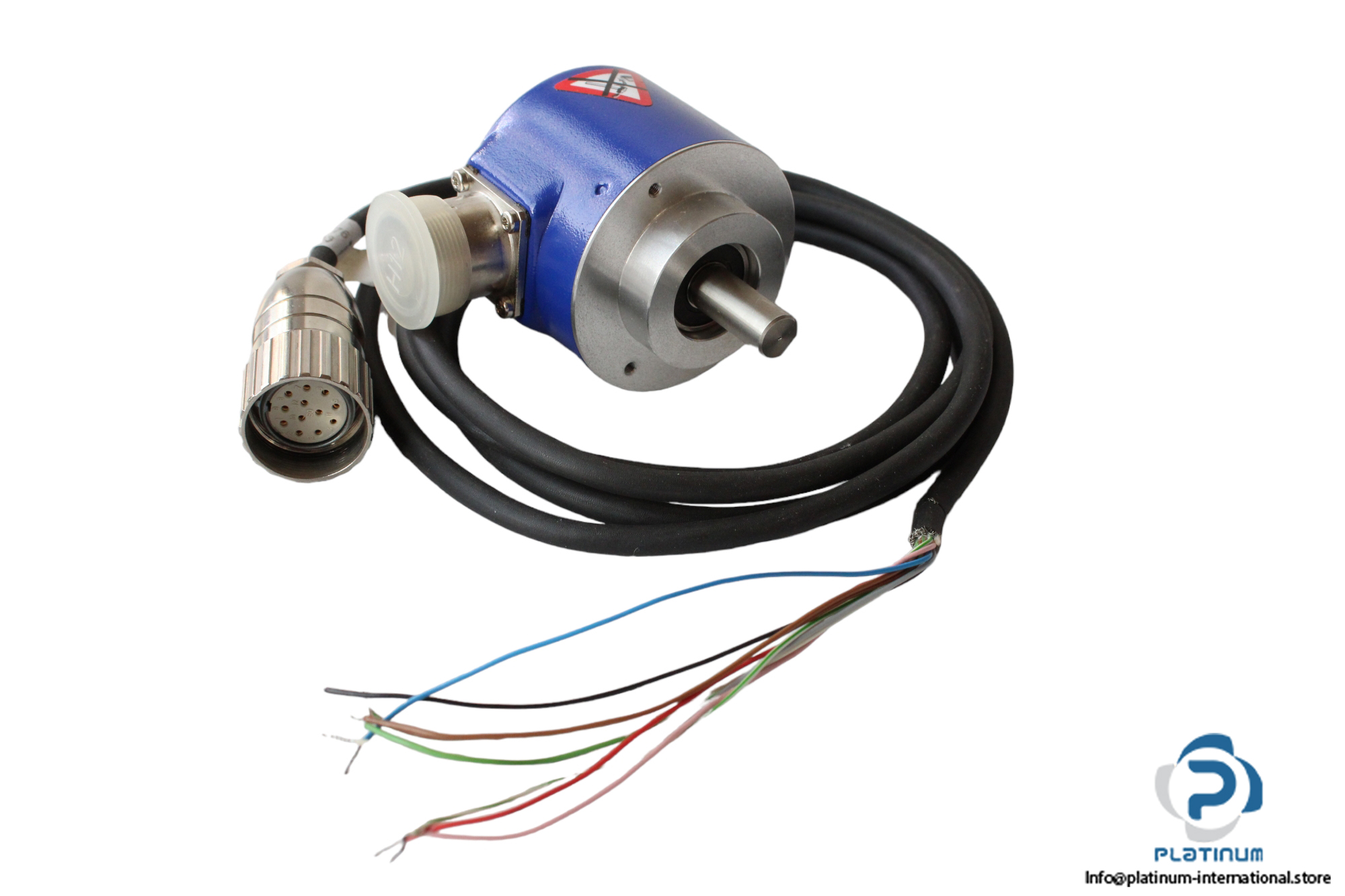

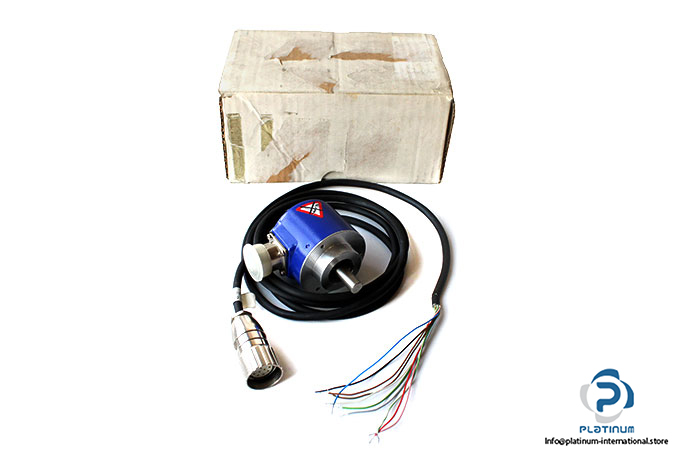

IVO GI355.070C313 INCREMENTAL ENCODER

The IVO GI355.070C313 is a high-precision incremental encoder engineered for demanding industrial environments. With a resolution of up to 360 PPR, rugged housing, and flexible connectivity, it ensures reliable signal transmission and precise feedback for motion control systems.

Manufacturer: IVO

Type: Incremental Encoder

Model: GI355.070C313

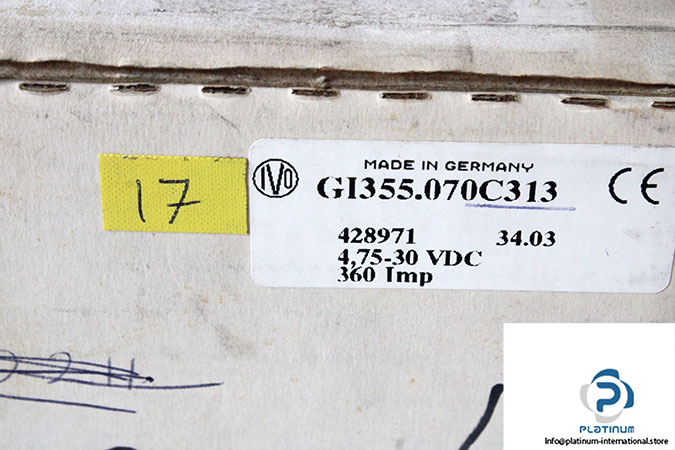

Part No.: 428971 34.03

Supply Voltage	4.75 / 30 VDC
Flange Type	Clamping flange
Shaft Diameter	10 mm
Resolution Max.	360 Pulse Per Revolution (PPR)
Output Circuit	Line driver/RS422, Push-pull, Short-circuit proof
Operating Speed	‰¤10000 rpm
Output Frequency	‰¤150 kHz
Connection	Connector M23, 12-pin, Cable 1 m
Protection Class	IP 54
Housing Material	Aluminium
Operating Temperature	-25 / +100 °C
