IVO GI355.070C313 Incremental Encoder
Nuevo
En stock1 unidadListo para enviar
450,00$
INCREMENTAL ENCODER
IVO GI355.070C313 incremental encoder offers 360 PPR resolution with RS422 and push-pull output circuits, IP54 protection, and high-speed operation up to 10000 rpm, ideal for industrial motion control.360ClampingControlEncoderFlangeGI355.070C313High-SpeedIncrementalIndustrialIP54IVOMotionPPRRS422Sensor
Inventario Masivo
Envío global
Soporte experto
Calidad Garantizada

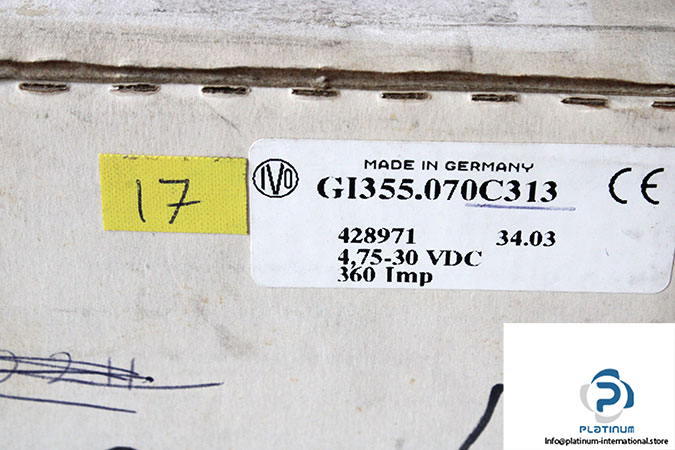

IVO GI355.070C313 INCREMENTAL ENCODER
The IVO GI355.070C313 is a high-precision incremental encoder engineered for demanding industrial environments. With a resolution of up to 360 PPR, rugged housing, and flexible connectivity, it ensures reliable signal transmission and precise feedback for motion control systems.
Manufacturer: IVO
Type: Incremental Encoder
Model: GI355.070C313
Part No.: 428971 34.03
| Supply Voltage | 4.75 / 30 VDC |
| Flange Type | Clamping flange |
| Shaft Diameter | 10 mm |
| Resolution Max. | 360 Pulse Per Revolution (PPR) |
| Output Circuit | Line driver/RS422, Push-pull, Short-circuit proof |
| Operating Speed | ‰¤10000 rpm |
| Output Frequency | ‰¤150 kHz |
| Connection | Connector M23, 12-pin, Cable 1 m |
| Protection Class | IP 54 |
| Housing Material | Aluminium |
| Operating Temperature | -25 / +100 °C |
