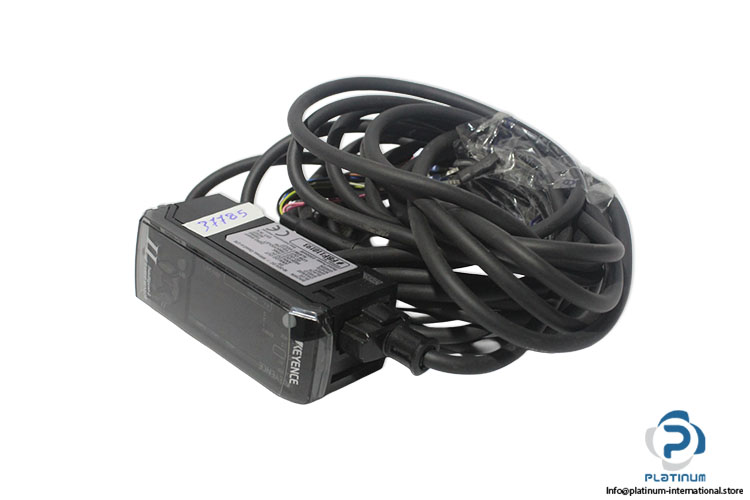

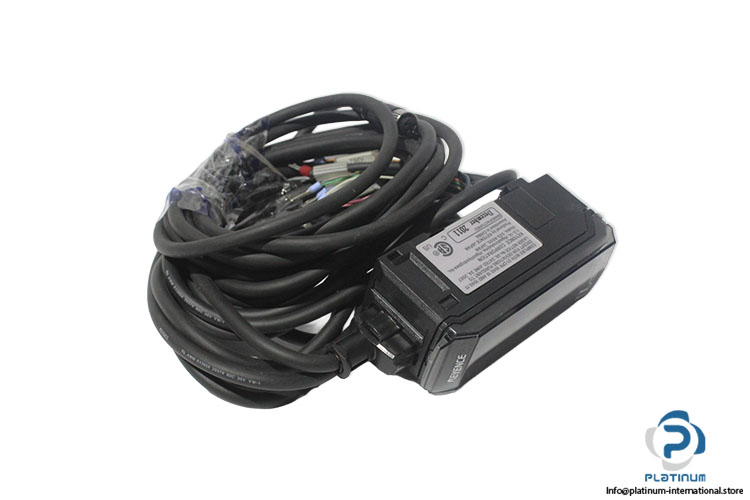

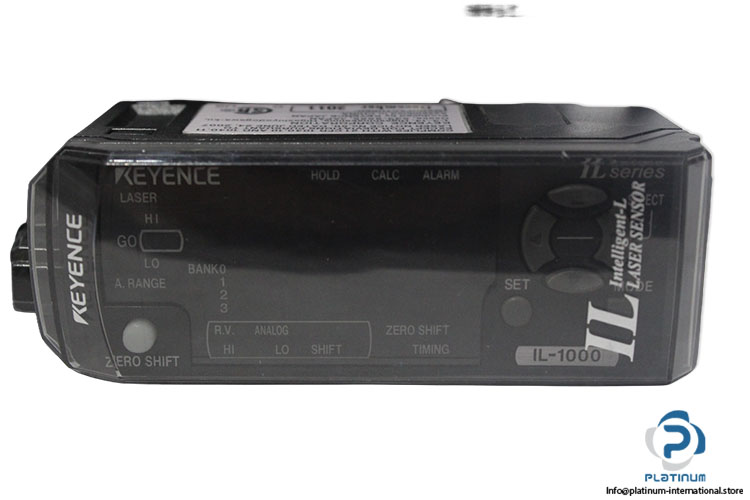

KEYENCE IL-1000 Laser Displacement Amplifier Sensor

재고 있음1 단위즉시 배송 가능

Laser Displacement Amplifier Sensor The Keyence IL-1000 is a DIN-rail mounted laser displacement amplifier sensor featuring multiple analog output options, NPN/PNP open collector outputs, and compatibility with the IL Intelligent-Laser Sensor Series for precise industrial measurement applications.

제조업체
KEYENCE
SKU
1098157
카테고리
Sensors
상태
신제품
공유
방대한 재고
글로벌 배송
전문 지원
품질 보장

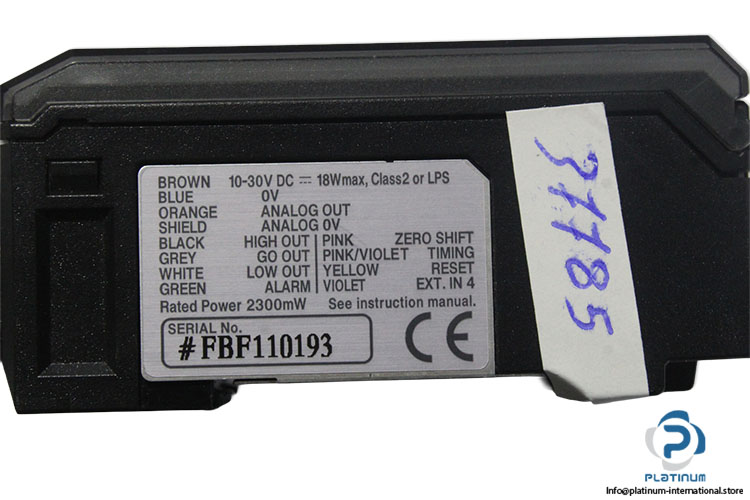

Serial No.FBF110193
SeriesIL (Intelligent-Laser Sensor)

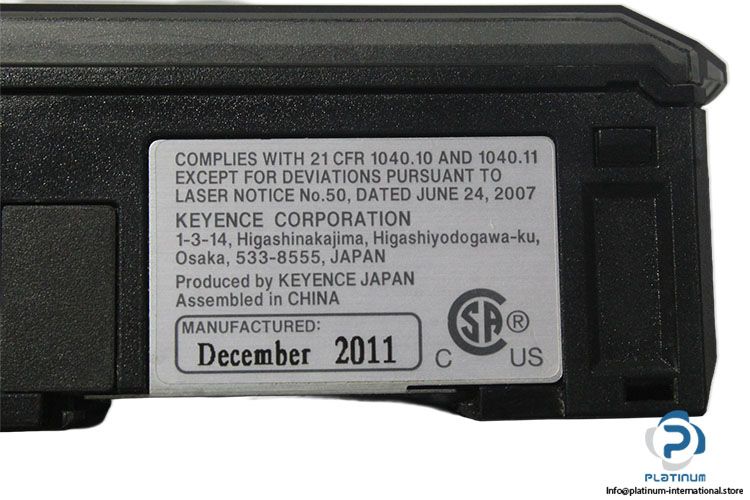

Complies With21 CFR 1040.10 And 1040.11 Except For Deviations Pursuant to Laser
Main unit/Expansion unitDIN-rail mount Main unit
Head compatibilityCompatible
Analog voltage output+-5 V, 1 to 5 V, 0 to 5 V
Analog current output4 to 20 mA
Power voltage10 to 30 VDC
Operating power18 W
Power consumption2300 mW
Output typeOpen collector output (NPN, PNP)
MaterialCase / Front sheet: Polycarbonate; Key tops: Polyacetel; Cable: PVC
Ambient temperature-10 to +50 °C
CertificatecCSAus, CE
ConditionNew
Stock keyJO-004
SKU1098157
Weight0,22
