Kubler 8.9081.4222.2002 Rotary Encoder

Name: KUBLER 8.9081.4222.2002 ROTARY ENCODER
SKU: 1018040
Price: 178.00 USD
Availability: InStock

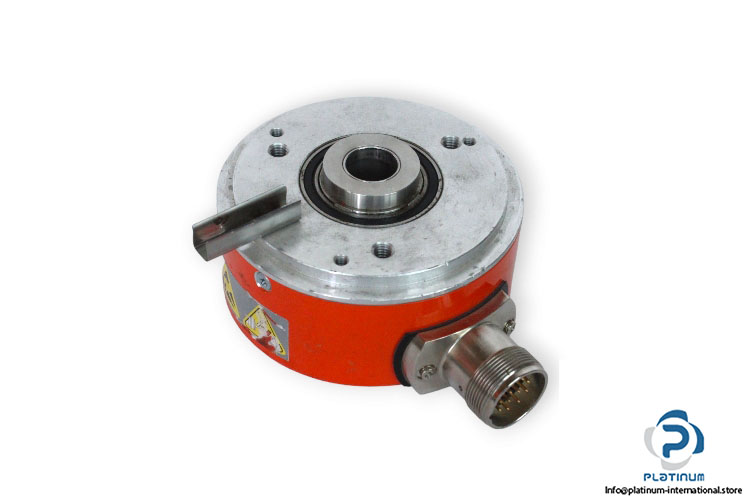

Kubler-8.9081.4222.2002-rotary-encoder-(used)

Kubler-8.9081.4222.2002-rotary-encoder-(used)-1

Kubler-8.9081.4222.2002-rotary-encoder-(used)-2

Kubler-8.9081.4222.2002-rotary-encoder-(used)-3

중고

재고 있음1 단위즉시 배송 가능

178,00$

ROTARY ENCODER FRITZ KUBLER 8.9081은 SSI 인터페이스를 통해 25비트 이진 정밀도를 제공하며, 15mm 중공축, 6000rpm 정격 및 넓은 전압 입력 범위를 갖추고 있습니다. 자동화 제어에 적합합니다.

제조업체

FRITZ KUBLER

SKU

1018040

카테고리

Rotary Encoders

상태

중고

15 25-Bit 530 8.9081 Automation Binary Encoder Fritz High-Speed hollow Industrial Interface Kubler mm Position Rotary Sensor shaft SSI VDC

방대한 재고

글로벌 배송

전문 지원

품질 보장

FRITZ KUBLER 8.9081 ROTARY ENCODER “ 25-BIT BINARY CODE

The FRITZ KUBLER 8.9081 Rotary Encoder is a high-resolution, robust solution for precise position detection in industrial automation systems. Featuring a 25-bit binary-coded SSI interface and a durable hollow shaft, it ensures reliable performance even under demanding conditions.

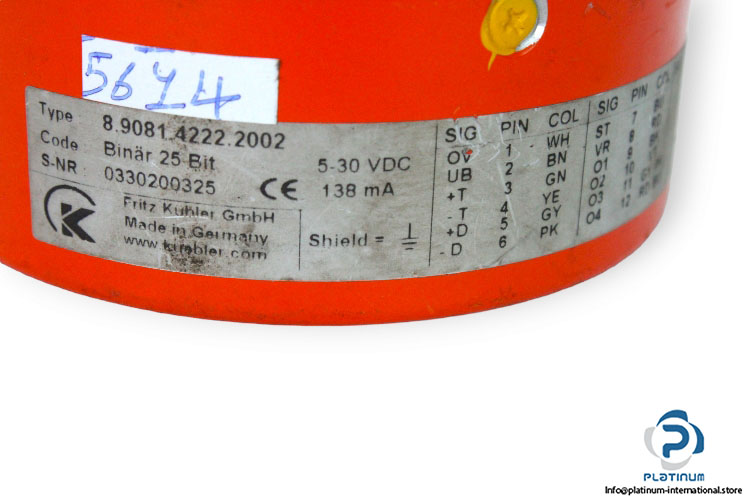

Manufacturer: FRITZ KUBLER

Type: Rotary Encoder

Model: 8.9081

Code: Binary 25-bit

Order Code: 8.9081.4222.2002

Serial Number: 0330200325

Supply Voltage	5 / 30 VDC
Rated Current	138 mA
Max. Speed	6000 min-1
SSI Interface	8192 x 4096 (25-bit), Binary

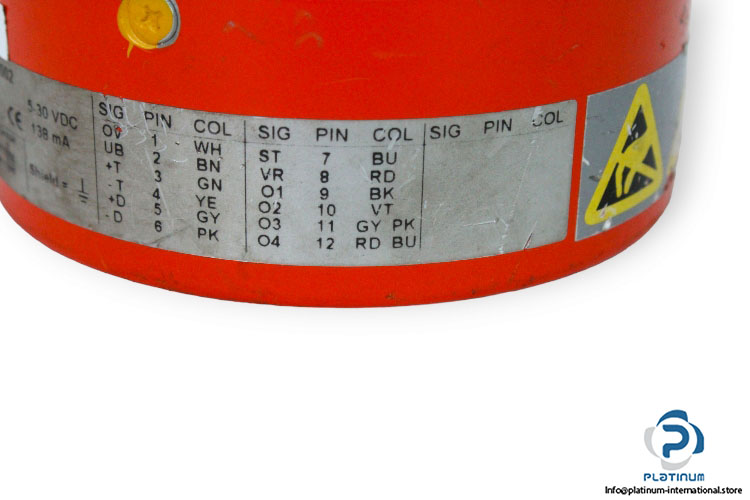

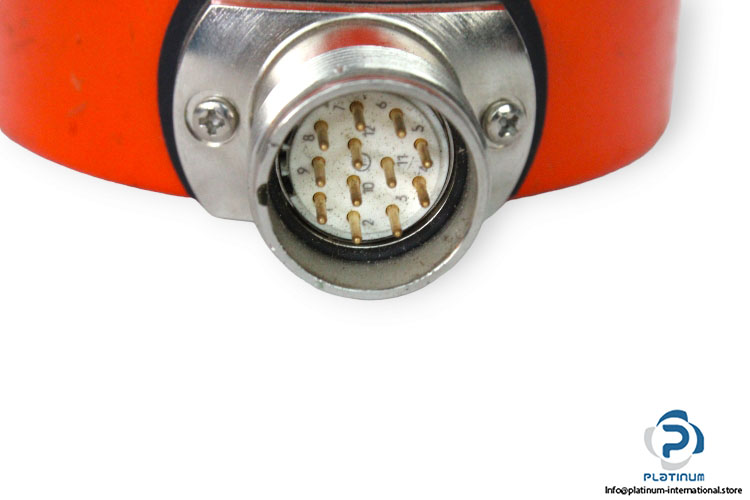

Connection	12-pin plug (no mating connector)
Hollow Shaft	DIA 15 mm
Max. Operating Temperature	-20 / 70 °C
